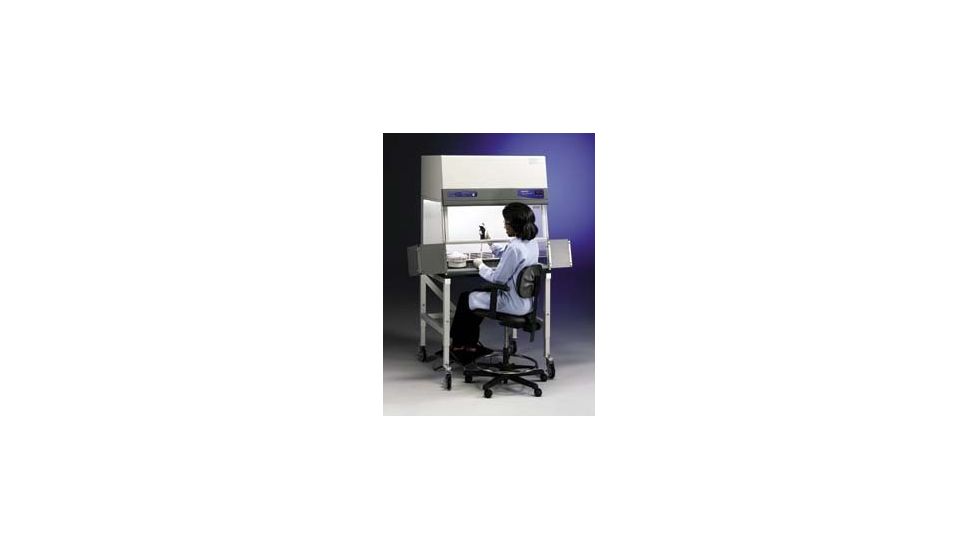

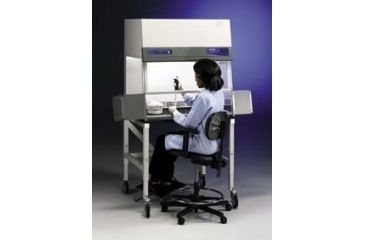

Labconco Purifier Filtered PCR Enclosures, Labconco
Enclosures 0.9 m (3') Nominal Width is a reliable
and dependable addition to the Labconco Laboratory Furniture and Biosafety Cabinets
family of products. Combining top-notch and uncompromising quality with an affordable price, the Labconco Purifier Filtered PCR Enclosures, Labconco Enclosures 0.9 m (3') Nominal Width 3970302/ 89000-150
can fulfill your laboratory needs while still offering a great value for the money.
Product Category Description:
Provide a controlled environment in which to perform polymerase chain reaction (PCR) procedures. The enclosure frame, top, back, airfoil, and interior upper panel are constructed of epoxy-coated steel and aluminum, and the optional work surface has raised edges to contain spills.
Each hood features an angled sash to provide closer, more comfortable viewing than vertical sashes. The sash has a working sash height opening of 24cm (97/16") that pivots upward and locks to a loading height of 50.8cm (20"). Front-mounted blower and light switches are located within easy reach of the operator, and a front-mounted Minihelic* pressure gauge monitors differential pressure across the HEPA filter. Two utility ports allow passage of tubing and electrical cords through the back.
The variable speed blower with solid-state speed control maintains proper air velocities. A diffuser, located at the top of the work area, stabilizes the airflow through the work area and protects the surface of the HEPA filter from possible damage from apparatus inside the enclosure, while a rear exhaust grill minimizes air turbulence in the work area. A prefilter traps large particles to extend the life of the HEPA filter, which removes 99.99% of all particles >=0.3µm, and an aerodynamic airfoil allows filtered air to sweep the work surface, keeping particle counts in the work area at ISO Class 5 (FED-STD-209E Class 100/M3.5) conditions.
Tempered safety glass sash and side panels provide a naturally illuminated work area. A fluorescent light is located outside of work space for easy access, and the UV light, with a variable digital timer provides continuous or timed UV light exposure in intervals of 5, 10, 15, 30, 60, 120, and 240 minutes to deactivate DNA and RNA contaminants and to ensure thorough decontamination while the cabinet is unattended. An amber LED indicator blinks for the duration of the setting, and bifold doors allow the sash opening to be closed while the UV light is on. The doors also prevent contaminants from entering the bench when it is not in use.
Base stands are made of durable 4.4cm (13/4") thick, tubular, glacier white epoxy-coated steel. They have an adjustable height from 69.9 to 85.1cm (271/2 to 331/2") in 2.5cm (1") increments. Stands with fixed feet come with leveling feet for use on uneven floor surfaces. Stands with casters feature 12.7cm (5") diameter toe-locking casters with bearings for quiet operation. Hydraulic stand height is infinitely adjustable from 64.8 to 85.1cm (251/2 to 331/2"). Height adjustments can be made any time on hydraulic stands. An optional work surface is available with raised edges to contain spills.
Enclosures are 115V, 60Hz and ETL and ETL-C listed and conform to CAN/CSA C22.2 No. 1010.1.
Warning: Purifier PCR enclosures are not biological safety cabinets. They do not provide protection for the user and, therefore, are not suitable for biohazardous materials or toxic procedures.
Ordering Information: Manufacturer’s one-year warranty on parts and labor. All models include a prefilter and HEPA filter. Enclosures include a 2.9m (91/2') three-wire cord without plug. Models with a built-in airflow monitor and 230V models are also available; contact our sales representative for information. Base stand and work surface (recommended for operation) are not included.
