Product Category Description:

System combines vortex motion, heat, and vacuum to quickly evaporate solvents from multiple biological or analytical samples. The microprocessor-controlled agitation at 1000rpm causes the liquid sample to form a vortex configuration that helps prevent bumping and greatly increases the surface area, enhancing evaporation. Rear-mounted vacuum port and electrical receptacle allow connection to a vacuum pump.

Memory stores 1 to 9 programs. Microprocessor-controlled programming for vortex speed from 0 to 100%; heat from OFF to 100°C; time from 1 to 999 minutes; vacuum level from 0 to 999mBar. LCD for display of program number, actual and set point, vortex speeds, temperatures, time remaining, and point vacuum level. Control panel with run/stop button, preheat/end alarm button and indicator light, set point selection buttons, and increase/decrease programming buttons. Audible alarm for timed end point. Audible/visual alarm for endpoint detected by temperature sensors at heater and block.

System consists of a glacier white and charcoal epoxy-coated aluminum base with thermoplastic upper housing, a fluoropolymer resin-coated cast aluminum chamber and a 1.3cm (1/2") thick glass lid with safety switch/alarm. Models with lid heater are available for applications involving water or other high boiling point solvents. Lid heater increases visibility and eliminates fogging.

The 230V models (without RS-232 interface) are CE marked.

Ordering Information: Vacuum pump hose and clamps are provided. The 115V models include a 2m (6'6") three-wire cord and a 20A plug. The 230V models include a 2m (6'6") three-wire cord and a 15A plug. Vacuum pumps, traps, and interchangeable fluoropolymer resin-coated aluminum blocks are sold separately. Contact your VWR representative to select the appropriate vacuum pump and trap.

Specifications for Labconco RapidVap Vacuum Evaporation System, Labconco 7491400 Aluminum Blocks For 69 x 16 Mm O.D. Tubes:

Description:		For 69 x 16 mm O.D. Tubes
Labconco No.:		7491400
Speed:		1000 rpm
Temperature Range:		Ambient to 100°C (212°F)
Dimensions:		52.8W x 46.7D x 34.3H cm
Shipping Weight:		45 kg (100 lbs.)

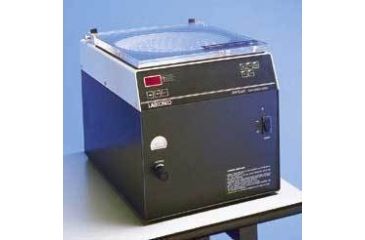

(Please note that the description and stock photo may not correspond to the specific model listed above)
