$2,749.99 $2,981.85 Save $231.86
Model: Labnet International MultiGene Mini Personal Thermal Cycler with tube block, 120 volts
Code: LB-LI-BDD-TC050-18
MPN: TC050-18
$2,749.99 $2,981.85 Save $231.86
Model: Labnet International MultiGene Mini Personal Thermal Cycler with 24 x 0.2 ml tube block, 120 volts
Code: LB-LI-BDD-TC020-24
MPN: TC020-24

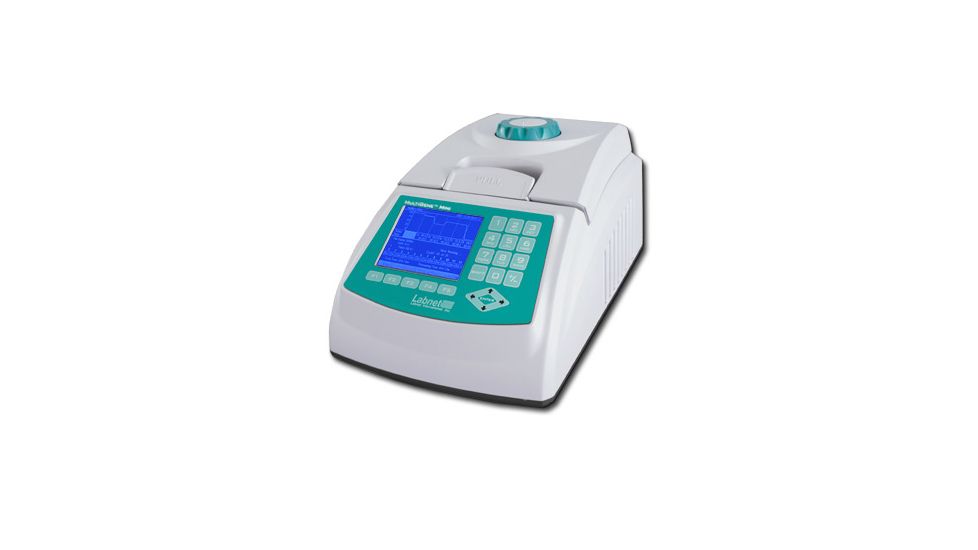

Labnet International MultiGene Mini Personal Thermal Cycler with tube block, 120 volts Product Info

Labnet's MultiGene Mini is a compact and lightweight thermal cycler, but don't let its small size fool you. This Labnet Laboratory Instrument is packed with features typically imagefound only on larger thermal cyclers. Excellent accuracy and uniformity combine with fast ramping rates to provide quality results. An algorithm calculates sample temperature, based on volume, to control heating and cooling of the block. This means that samples reach programmed temperatures quickly, without any overshoot or lagging. Powerful Peltier units provide ramping rates as fast as 5°C/second. Programming the MultiGene Mini by Labnet Int. is simple and intuitive. The control pad combines function keys, a key pad and arrow keys for easy navigation and entering of parameters.

The large graphical display is easy to read. In addition to the standard parameters of time and temperature, the software also allows for successive time and temperature increments and decrements (for touchdown amplification and auto-extension), auto-restart after a power failure, end of cycling elongation steps and extended soaks at 4°C. One hundred programs, each with up to nine segments, can be stored in memory. The Labnet International Multi Gene Mini is available with either a 24 x 0.2 ml tube block or 18 x 0.5 ml tube block. Blocks are easily interchanged. Units come standard with an adjustable heated lid. The lid features a slip gear to provide proper compression to prevent sample evaporation without deforming the tubes.

We offer the complete line of Labnet Laboratory Instruments. For our complete selection of products by Labnet on sale please visit our Labnet page. For more Laboratory Instruments please visit our Laboratory Instruments store section.

  • Available Models of Labnet Multi Gene Mini Personal Thermal Cycler:
  • TC050-18: Labnet Int. Multi Gene Mini Personal Thermal Cycler with 18 x 0.5 ml tube block, 120volts
  • TC020-24: Labnet International Mini MultiGene Personal Thermal Cycler with 24 x 0.2 ml tube block, 120 volts

Specifications for LabnetInternational MultiGene Personal Laboratory Instruments:

Capacity
TC020-24: 24 x 0.2 mL tubes
TC050-18: 18 x 0.5 mL tubes
Programmable temp. range: 4° to 99°C
Temp. accuracy/uniformity: ±0.3°C/±0.5°C at 55°C
Max. heating/cooling rate: 5°C/4°C per second
Heating/cooling method: Peltier
Heated lid temperature: 105°C
Program memory: 100 programs
Max. cycles/segments: 99 cycles/9 segments
Max. hold time/step: 99 minutes 59 seconds
Dimensions (WxDxH): 8.6 x 11.2 x 7 in / 21.8 x 28.5 x 17.8 cm
Weight: 7.1 lb/3.2 kg
Electrical: 120V/230V, 50/60 Hz

Features of Labnet International Multi-Gene Mini Personal Thermal Cyclers:

  • Fast ramping - up to 5°C/second
  • Intuitive graphical programming
  • Lightweight and compact
  • Interchangeable blocks - 24 x 0.2 ml and 18 x 0.5 ml
  • Economical - half the price of a full size unit

Package Contents:

  • Labnet Int. MultiGene Mini Personal Thermal Cycler with tube block, 120 volts
