Select a Model

$309.99

Check Product Availability

Model: Labnet Labmax Dispenser, 0.3 to 2.5ml

Code: LB-PL-CCFAFC-D5370-2

MPN: D5370-2

$309.99

Check Product Availability

Model: Labnet Labmax Dispenser, 1.0 to 5.0ml

Code: LB-PL-CCFAFC-D5370-5

MPN: D5370-5

$309.99

Check Product Availability

Model: Labnet Labmax Dispenser, 2.0 to 10ml

Code: LB-PL-CCFAFC-D5370-10

MPN: D5370-10

UPC: D5370-10

$415.99

Check Product Availability

Model: Labnet Labmax Dispenser, 5.0 to 25ml

Code: LB-PL-CCFAFC-D5370-25

MPN: D5370-25

$449.99

Check Product Availability

Model: Labnet Labmax Dispenser, 10 to 50ml

Code: LB-PL-CCFAFC-D5370-50

MPN: D5370-50

$639.99 $727.50 Save 12%

Check Product Availability

Model: Labnet Labmax Dispenser, 20 to 100ml

Code: LB-PL-CCFAFC-D5370-100

MPN: D5370-100

$796.99 $905.85 Save 12%

Check Product Availability

Model: Labnet Labmax Dispenser, 2.0 to 10ml for hydrofloric acid

Code: LB-PL-CCFAFC-D5370-10HF

MPN: D5370-10HF

$1,039.99 $1,201.60 Save 13%

Check Product Availability

Model: Labnet Labmax Dispenser, 5.0 to 25ml for hydrofloric acid

Code: LB-PL-CCFAFC-D5370-25HF

MPN: D5370-25HF

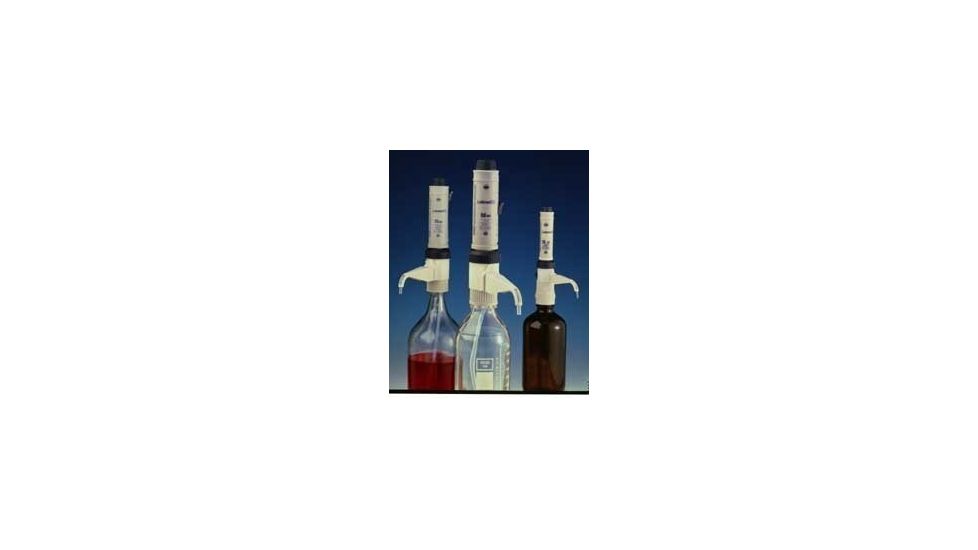

Labnet Labmax Bottle Top Dispensers Product Info

Labnet Labmax Bottle Top Dispensers on sale and available from our online store. OpticsPlanet, Inc is an Authorized US Distributor for Labnet Pipets & Liquid Handling.

The Labmax bottle top dispenser has been developed through extensive testing and input from end users. The result is an easy to use system with a variety of important features.

The unique closed circut air purging system allows air and bubbles to be eliminated from the dispenser without loss of valuable reagent.

The Reagent "Gaurd Valve" prevents accidental discharge of reagent when the dispenser is not in use. A simple turn of the operations mode selector activates this safety feature. Eliminating the need for discharge tube caps.

The exclusive Integrated Swivel Neck allows the discharge tube to be turned 360° for convenient dispensing without affecting the connection to the bottle.

The Dispensers aref ully autoclavable to 121°C for sterilization. The Labmax can be disassembled quickly and easily for thorough cleaning.

Quick and accurate volume adjustment is easy with the locking rocker switch. The zero point is manufactured into the Labmax; calibration is not necessary, even after disassembly and cleaning.

ISO 9001 Certification has been achieved in the design, developement and manufacturing stages of the Labmax. All Labmax dispensers feature a dated mark for compliance with ISO 9001 procedures.

Labnet Labmax Bottle Top Dispensers is available with the following options:

Labnet D5370-2 Labnet Labmax Dispenser, 0.3 to 2.5ml
Labnet D5370-5 Labnet Labmax Dispenser, 1.0 to 5.0ml
Labnet D5370-10 Labnet Labmax Dispenser, 2.0 to 10ml
Labnet D5370-25 Labnet Labmax Dispenser, 5.0 to 25ml
Labnet D5370-50 Labnet Labmax Dispenser, 10 to 50ml
Labnet D5370-100 Labnet Labmax Dispenser, 20 to 100ml
Labnet D5370-10HF Labnet Labmax Dispenser, 2.0 to 10ml for hydrofloric acid
Labnet D5370-25HF Labnet Labmax Dispenser, 5.0 to 25ml for hydrofloric acid

Specifications for Labnet Labmax Bottle Top Dispensers:


Piston:		Direct displacing, PTFE with PTFE coated viton O-ring

Cylinder:		Borosilicate glass with transparent plastic safety coating

Housing:		Polypropylene

Volume Adjustment:		Locking rocker switch

Calibration:		Automatic

Accuracy:		± 0.7%

Reproductibility:		± 0.1%

Autoclavable:		Fully, to 121°C

Compatibility:		Excellent - suitable for dispensing most reagents except HF

Warranty:		1 year, parts and labor

Range (ml):		0.3 - 2.5µl / 1.0 - 5.0 µl / 2.0 - 10.0µl / 5.0 - 25.0µl / 10.0 - 50.0µl / 20.0 - 100.0µl

Increment (ml):		0.05, 0.10, 0.20, 0.50, 1.00, 2.00

Tolerance (ml):		0.02, 0.04, 0.08, 0.15. 0.40, 0.80

Thread size:		33mm, 33mm, 33mm, 45mm, 45mm, 45mm

Catalog no.:		D5370-2, D5370-5, D5370-10, D5370-25, D5370-50, D5370-100

Features of Labnet Labmax Bottle Top Dispensers:

Unique closed circut air purging system
Reagent "guard valve" for safety shut down
Exclusive integrated swivel neck
Patented direct displacement teflon® piston
Quick and accurate volume adjustment
Auto - calibrating
Fully autoclavable
ISO 9001 certified

Accesories for Labnet Labmax Bottle Top Dispensers:

Catalog Code		Description

Labnet D5375-002		Labnet Extended discharge tube, fits -2, -5 and -10 dispensers

Labnet D5375-012		Labnet Extended discharge tube, fits -25, -50 and -100 dispensers

Labnet D5377		Labnet Calcium chloride drying tube, fits all Labmax dispensers
