Select a Model

$5,999.99 $6,325.50 Save $325.51

Check Product Availability

Model: Labnet Z383 Benchtop Centrifuge

Code: LB-CE-BCABFB-C0383

MPN: C0383

$9,439.99 $9,957.55 Save $517.56

Check Product Availability

Model: Labnet Z383K Benchtop Refrigerated Centrifuge

Code: LB-CE-BCABFB-C0383-K

MPN: C0383-K

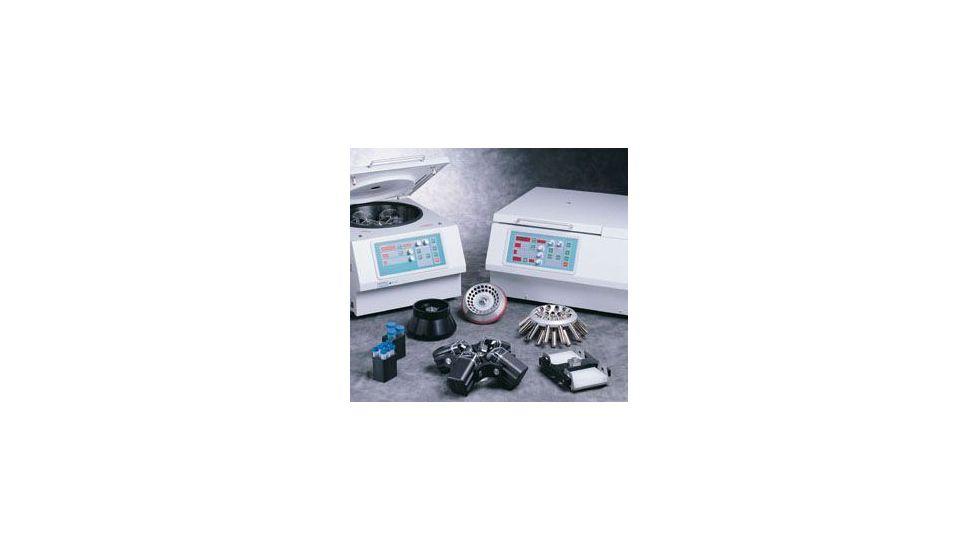

Labnet Z383 and Z383K, 4x500ml Product Info

Labnet Z383 and Z383K, 4x500ml on sale and available from our online store. OpticsPlanet, Inc is an Authorized US Distributor for Labnet Centrifuges.

The Z 383 series accepts tubes up to 500 ml in a variety of swing out and angle rotors. In addition, the centrifuges will accept a variety of high speed angle rotors for tubes up to 85 ml. High speed capabilities and large capacity rotors make the Z 383 and Z 383 K the ultimate in intelligent centrifuges.	Z383
The Z 383 series operating system is based on advanced, easy to use microprocessor control and rotor recognition. Feedback systems automatically limit each rotor to its rated maximum speed. A centrifugal radius correction function compensates for various tubes, adapters and inserts so that an extremely accurate g-value is calculated and displayed. The hybrid control panel combines modern microprocessor control and easy turn knobs. All parameters are entered with knobs while their values are displayed digitally. Repetitive runs are simple - just press the start key. Up to ten programs can be stored in memory and recalled
The brushless induction drives in these centrifuges are powerful, yet extremely quiet. The motors accelerate all rotors to speed quickly. Braking level is fully adjustable	Z383K
The powerful refrigeration system in the Z 383 K maintains all rotors at or below 4°C, even at maximum speed. The precool function cools the rotor and centrifuge before a run to protect temperature sensitive samples.

Labnet Z383 and Z383K, 4x500ml is available with the following options:

Labnet C0383 Labnet Z383 Benchtop Centrifuge
Labnet C0383-K Labnet Z383K Benchtop Refrigerated Centrifuge

Specifications for Labnet Z383 and Z383K, 4x500ml:


Speed range:		200rpm to 17,000rpm

Maximum RCF:		26,810 x g

Maximum capacity:		4 x 500 ml

Timer:		1 to 60 minutes or continuous "Quick" button for momentary operation

Temperature range (Z 383 K):		-10° to +40°C

Dimensions (W x D x H)

Z 383:		18.9 x 23.6 x 14.7 inches/48 x 60 x 38 cm

Z 383 K:		29.5 x 23.6 x 14.7 inches/75 x 60 x 38 cm

Weight

Z 383:		132 lb/60 kg

Z 383K:		264 lb/120 kg

*Electrical:**		120V~, 60 Hz

Features of Labnet Z383 and Z383K, 4x500ml:

Maximum speed 17,000rpm/26,810 x
10 levels of braking intensity
Microprocessor control with g-force conversion and program memory
Multiple swing out, angle and high speed rotor options

Download related documents for Labnet Z383 and Z383K, 4x500ml:

Z383 Series Brochure

Accesories for Labnet Z383 and Z383K, 4x500ml:

Catalog Code		Description

Labnet C0200-10		Labnet Adapter, 10ml (16,17 x 100mm), for 15ml rotor, pk/4

Labnet C0200-17A		Labnet Adapter for 5ml (12 x 75mm) and 7ml (13 x 100mm) tubes pk/6

Labnet C0230-17A		Labnet Adapter, 5ml(12 x 75mm) , 7ml(13 x 100mm), 10ml (16 x100mm) for 15ml rotor, pk/4

Labnet C0230-20		Labnet Adapter, 1.5ml, for 15ml rotor, pk/4

Labnet C0230-41		Labnet Cushion for 5ml (12,13 x 75mm) in C0232-9, pk/12

Labnet C0232-8B		Labnet Adapter, 15ml conical in 50ml rotor, pk/6

Labnet C0232-9B		Labnet Adapter, 5 to 7ml round in 50ml rotor, pk/6

Labnet C0252-55		Labnet Angle rotor, 48 place, 24 x 0.5, 24 x 1.5ml

Labnet C0252-85		Labnet Angle rotor, 12 x 12ml, high speed (Z323 and Z383 Series Only)

Labnet C0252-85A		Labnet Adapter, 10ml in 12ml rotor

Labnet C0252-85H		Labnet Angle rotor, 12 x 12ml, hermetically sealed (Z323 and Z383 Series Only)

Labnet C0252-87		Labnet Angle rotor, 24 x 1.5ml,

Labnet C0252-87H		Labnet Angle rotor, 24 x 1.5ml, hermetically sealed

Labnet C0252-89		Labnet Hematocrit rotor, 24 place, with graph

Labnet C0252-9		Labnet Angle rotor, 44 x 1.5ml

Labnet C0300-16		Labnet Swing-out rotor with 2 microplate carriers, 2762 x g max

Labnet C0300-96		Labnet Angle rotor, 12 x 15ml, conical or round bottom

Labnet C0300-97		Labnet Angle rotor, 6 x 50ml

Labnet C0320-504		Labnet Insert, 48 x 1.5ml for microplate rotor, set of 2

Labnet C0323-81		Labnet Angle rotor, 24 x 15ml with shields

Labnet C0360-76A		Labnet Adapter for 15ml round (17x100mm) in 30ml rotor, set of 2

Labnet C0360-91A		Labnet Adapter for 16ml in 50ml rotor, set of 2

Labnet C0360-91C		Labnet Adapter for 30ml round bottom in 50ml rotor, set of 2

Labnet C0360-94A		Labnet Adapter, 50ml round in 85ml rotor, set of 2

Labnet C0360-94B		Labnet Adapter, 30ml in 85ml rotor, set of 2

Labnet C0360-94C		Labnet Adapter, 16ml (17 x 110mm) in 85ml rotor, set of 2

Labnet C0360-94D		Labnet Adapter, 50ml conical in 85ml rotor, set of 2

Labnet C0360-94H		Labnet Adapter, 4 x 1.5ml in 85ml rotor, set of 2

Labnet C0360-94J		Labnet Adapter, 2 x 15ml round (17 x 100mm) in 85ml rotor, set of 2

Labnet C0360-94X		Labnet Adapter, 15/16ml (16/17mm OD) in 85 ml rotor, set of 2

Labnet C0382-76		Labnet Angle rotor, 8 x 30ml, high speed (Z323 and Z383 Series Only)

Labnet C0382-76H		Labnet Angle rotor, 8 x 30ml, hermetically sealed (Z323 and Z383 Series Only)

Labnet C0382-78		Labnet Angle rotor, 6 x 85ml, high speed (Z323 and Z383 Series Only)

Labnet C0382-78H		Labnet Angle rotor, 6 x 85ml, hermetically sealed (Z323 and Z383 Series Only)

Labnet C0382-91		Labnet Angle rotor, 8 x 50ml, high speed (Z323 and Z383 Series Only)

Labnet C0382-91H		Labnet Angle rotor, 8 x 50ml, hermetically sealed (Z323 and Z383 Series Only)

Labnet C0383-75		Labnet Swing-out rotor 4 place, with insert holders

Labnet C0383-75A		Labnet Carrier 12 x 15ml conical, for -75 rotor, pk/2

Labnet C0383-75B		Labnet Carrier 5 x 50ml conical, for -75 rotor, pk/2

Labnet C0383-75C		Labnet Carrier 7 x 50ml conical (cannot use lid), for -75 rotor, pk/2

Labnet C0383-75D		Labnet Carrier 1 x 500ml , for -75 rotor, pk/2 (must be purchased in full set of 2 pairs)

Labnet C0383-75DB		Labnet Bottle, Polyethylene 1 x 500ml, for -75 rotor

Labnet C0383-75E		Labnet Carrier 1 x 250ml, for -75 rotor, pk/2

Labnet C0383-75EB		Labnet Bottle, PP, 250ml, pk/2

Labnet C0383-75F		Labnet Carrier 19 x 10ml (16 x 100mm), for -75 rotor, pk/2

Labnet C0383-75G		Labnet Carrier 19 x 5ml/7m (12 x 75mm/13 x 100mm), for -75 rotor, pk/2

Labnet C0383-75H		Labnet Carrier for microplates, for -75 rotor, pk/2, (must be purchased in full set of 2 pairs)

Labnet C0383-75I		Labnet Carrier 25 x 1.5ml, for -75 rotor, pk/2

Labnet C0383-75L		Labnet Sealing lid for -75 carriers

Labnet C0400-15		Labnet Swing-out rotor, 20 x 15ml

Labnet C0400-50		Labnet Swing-out rotor, 12 x 50ml

Labnet C1205		Labnet Individual adapters for 0.5/0.6 ml tubes, pk of 6

Labnet C1206		Labnet Individual adapters for 0.4/0.25ml tubes, pk/6

Labnet C1222		Labnet Individual adapters for 0.2ml thermal cycling tubes, pk/6

Labnet C2300-77		Labnet Hermatocrit Reader for C0230-58

We offer complete line of Labnet Centrifuges. For our complete selection of products by Labnet on sale please visit our Labnet page. For more Centrifuges please visit our Centrifuges store section.
