Product Discontinued by Manufacturer

Laser Devices DBAL-A2H Laser Sight w/ Visible Green Pointer (<5mW), Infrared Pointer (<50mW) and Infrared Pointer/Illuminator (<200mW) has been discontinued by Laser Devices and is no longer available. Our product experts have helped us select these available replacements below. You can also explore other items in the Green Laser Sights, IR Laser Sights categories yourself to try and find the perfect replacement for you!

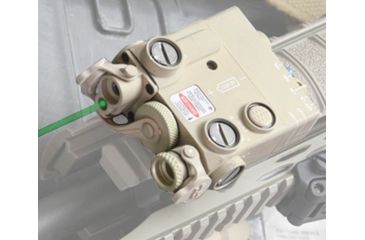

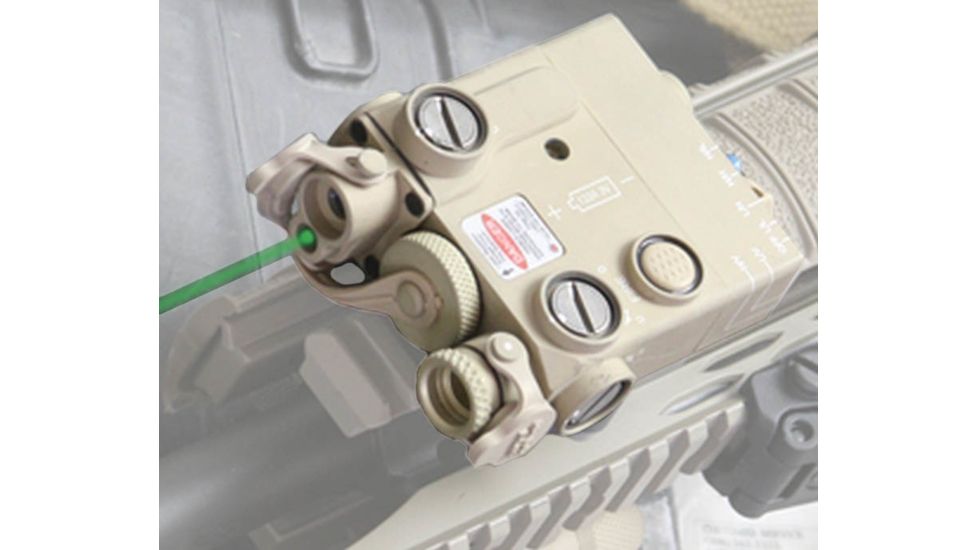

Laser Devices DBAL-A2H Laser Sight w/ Visible Green Pointer (<5mW), Infrared Pointer (<50mW) and Infrared Pointer/Illuminator (<200mW) Product Info

Laser Devices DBAL - A2H Laser Sight w/ Visible Green Pointer (532nm) (<5mW), Infrared Pointer(835nm) (<50mW) and Infrared Pointer/Illuminator (835nm) (<200mW) is laser sight that equippedimage with an IR pointer, IR pointer/illuminator and Green Ultra Power Point visible pointer which is five times more visible than traditional red lasers. When every second counts, the versatile Laser Devices DBALA2 from Laser Devices is the right choice for any mission or encounter in the law enforcement and military sectors. Laser Devices Laser Sights have exceptional functionality and versatility and the DBAL A2H resulted in its selection for acquisition by the U.S. Department of Defense as part of the Multi-functional Aiming Light Contract.

Specifications for Laser Devices DBAL-A2H Laser System:

Laser Specifications
Laser Type:
  • Visible Pointer <5mW: Class IIIa
  • IR Pointer: Class IIIb
  • IR Pointer/Illuminator: Class IIIb
Power Output (Hi / Lo):
  • Visible Green Pointer: <5mW / <1mW
  • IR Pointer: <50mW / <1mW
  • IR Pointer/Illuminator: <200mW / <5mW
Wavelength:
  • Visible Green Pointer: 532nm
  • IR Pointer: 835nm
  • IR Pointer/Illuminator: 835nm
Full Angle Beam Divergence:
  • Visible Green Pointer: 0.5 mrad
  • IR Pointer: 0.3 mrad
  • IR Pointer/Illuminator: 0.5 - 75 mrad
Range/Visibility (Night/Day):
  • Green Visible Pointer: 1500m / 30m
  • IR Pointer: 2000m
  • IR Pointer/Illuminator: 5000m
Temperature:
  • Visible Green Pointer: 0°C to +45°C
  • IR Pointer: -40°C to +51°C
  • IR Pointer/Illuminator: -40°C to +51°C
Battery: One 3-volt 123A Lithium
Battery Life: Up to 5 hours continuous
Mechanical Specifications
Limited Warranty: 1 year
Material: Anodized aircraft aluminum 6061T-6
Weight (with battery): 8.2 oz / 232 grams
Size (LxWxH): 3.4 in x 2.9 in x 1.9 in / 8.5 cm x 7.4 cm x 4.8 cm
Environment: Waterproof to 20 meters

Features of Laser Devices DBAL A2H Aiming Laser Sight:

  • Rugged aerospace aluminum housing, MIL-SPEC Type III hardcoat anodized
  • Hi- and Lo-power modes of laser operation
  • Instantly switch between laser functions
  • Meets MIL-STD-810G for adverse environmental conditions and explosive atmosphere
  • ESD compliant for air worthiness
  • Activation / low battery indicator light
  • Single adjustment mechanism for both visible and IR pointers
  • Fully adjustable windage and elevation
  • Waterproof to 20 Meters
  • Manufactured in the U.S.A.

Package Contents:

  • Laser Devices Aiming Laser Sight DBAL-A2H w/ Visible Green Pointer (<5mW), Infrared Pointer (<50mW) and Infrared Pointer/Illuminator (<200mW)

Laser Devices DBAL-A2H Laser Sight w/ Visible Green Pointer (<5mW), Infrared Pointer (<50mW) and Infrared Pointer/Illuminator (<200mW) Related Products

Laser Devices DBAL-A2H Laser Sight w/ Visible Green Pointer (<5mW), Infrared Pointer (<50mW) and Infrared Pointer/Illuminator (<200mW) Unorderable Models

Laser Devices DBAL-A2H Laser Sight w/ Visible Green Pointer (<5mW), Infrared Pointer (<50mW) and Infrared Pointer/Illuminator (<200mW), Foliage Green, MPN: 40176F, Code: LD-LS-DBALA2H40176-40176F
Laser Devices DBAL-A2H Laser Sight w/ Visible Green Pointer (<5mW), Infrared Pointer (<50mW) and Infrared Pointer/Illuminator (<200mW), Desert Sand, MPN: 40176D, Code: LD-LS-DBALA2H40176-40176D
Laser Devices DBAL-A2H Laser Sight w/ Visible Green Pointer (<5mW), Infrared Pointer (<50mW) and Infrared Pointer/Illuminator (<200mW), Black, MPN: 40176, Code: LD-LS-DBALA2H40176-40176
