Product Discontinued by Manufacturer

Steiner eOptics Laser Devices DBAL-A2H Laser Sight w/ Visible Red Pointer (<5mW), Infrared Pointer (<50mW) and Infrared Pointer/Illuminator (<200mW) has been discontinued by Steiner eOptics and is no longer available. Our product experts have helped us select these available replacements below. You can also explore other items in the Red Laser Sights, IR Laser Sights categories yourself to try and find the perfect replacement for you!

Steiner eOptics Laser Devices DBAL-A2H Laser Sight w/ Visible Red Pointer (<5mW), Infrared Pointer (<50mW) and Infrared Pointer/Illuminator (<200mW) Product Info

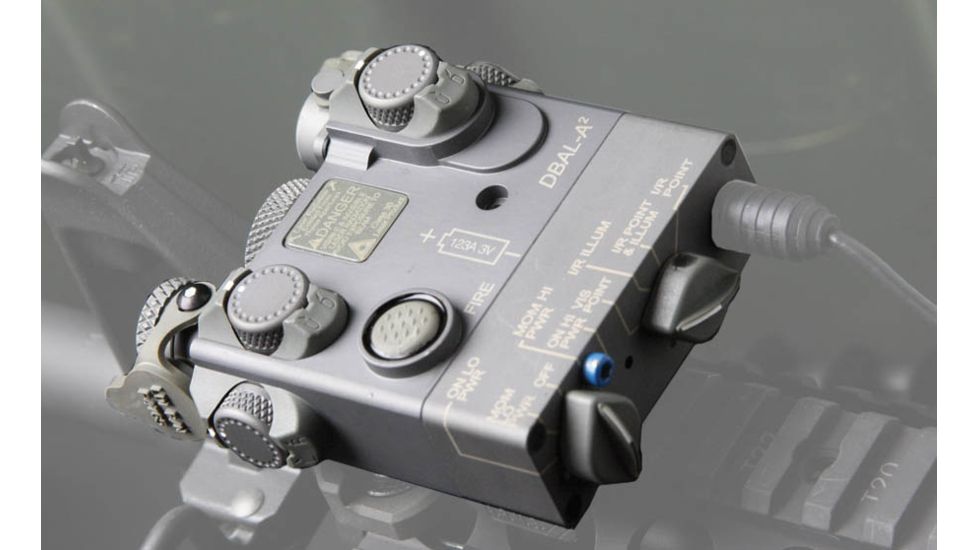

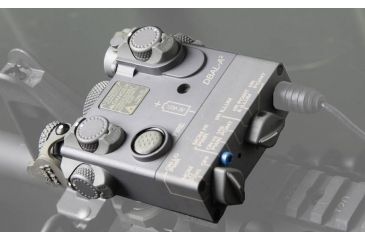

Steiner eOptics DBAL - A2H Laser Sight w/ Visible Red Pointer (635nm) (<5mW), Infrared Pointer(835nm) (<50mW) and Infrared Pointer/Illuminator (835nm) (<200mW) is laser sight that equipped with an IR pointer, IR pointer/illuminator and Red Super Power Point laser for maximum daytime visibility. When every second counts, the versatile Steiner eOptics DBALA2 from Steiner eOptics is the right choice for any mission or encounter in the law enforcement and military sectors. Steiner eOptics Laser Sights have exceptional functionality and versatility and the DBAL A2H resulted in its selection for acquisition by the U.S. Department of Defense as part of the Multi-functional Aiming Light Contract.

Specifications for Steiner eOptics DBAL-A2H Laser System:

Laser Specifications
Laser Type:
  • Visible Pointer <5mW: Class IIIa
  • IR Pointer: Class IIIb
  • IR Pointer/Illuminator: Class IIIb
Power Output (Hi / Lo):
  • Visible Red Pointer: <5mW / <1mW
  • IR Pointer: <50mW / <1mW
  • IR Pointer/Illuminator: <200mW / <5mW
Wavelength:
  • Visible Red Pointer: 635nm
  • IR Pointer: 835nm
  • IR Pointer/Illuminator: 835nm
Full Angle Beam Divergence:
  • Visible Red Pointer: 0.3 mrad
  • IR Pointer: 0.3 mrad
  • IR Pointer/Illuminator: 0.5 - 75 mrad
Range/Visibility (Night/Day):
  • Red Visible Pointer: 500m / 10m
  • IR Pointer: 2000m
  • IR Pointer/Illuminator: 5000m
Temperature:
  • Visible Red Pointer: -40 °C to +51°C
  • IR Pointer: -40°C to +51°C
  • IR Pointer/Illuminator: -40°C to +51°C
Battery: One 3-volt 123A Lithium
Battery Life: Up to 5 hours continuous
Mechanical Specifications
Limited Warranty: 1 year
Material: Anodized aircraft aluminum 6061T-6
Weight (with battery): 8.2 oz / 232 grams
Size (LxWxH): 3.4 in x 2.9 in x 1.9 in / 8.5 cm x 7.4 cm x 4.8 cm
Environment: Waterproof to 20 meters

Features of Steiner eOptics DBAL A2H Aiming Laser Sight:

  • Rugged aerospace aluminum housing, MIL-SPEC Type III hardcoat anodized
  • Hi- and Lo-power modes of laser operation
  • Instantly switch between laser functions
  • Meets MIL-STD-810G for adverse environmental conditions and explosive atmosphere
  • ESD compliant for air worthiness
  • Activation / low battery indicator light
  • Single adjustment mechanism for both visible and IR pointers
  • Fully adjustable windage and elevation
  • Waterproof to 20 Meters
  • Manufactured in the U.S.A.

Package Contents:

  • Steiner eOptics Laser Devices Aiming Laser Sight DBAL-A2H w/ Visible Red Pointer (<5mW), Infrared Pointer (<50mW) and Infrared Pointer/Illuminator (<200mW)
