Product Discontinued by Manufacturer

Laser Devices DBAL - A2 Laser Sights with Visible Super Power Point Laser, High Power Infrared Laser and Infrared Laser Illuminator 40090 has been discontinued by Laser Devices and is no longer available. Our product experts have helped us select these available replacements below. You can also explore other items in the IR Laser Sights category yourself to try and find the perfect replacement for you!

Laser Devices DBAL - A2 Laser Sights with Visible Super Power Point Laser, High Power Infrared Laser and Infrared Laser Illuminator 40090 Product Info

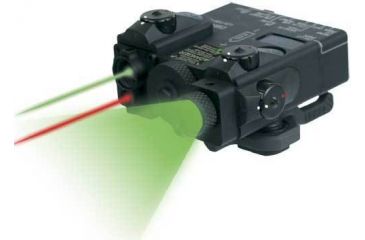

Laser Devices DBAL - A2 Laser Sights with Visible Superimage Power Point Laser, High Power Infrared Laser and Infrared Laser Illuminator DBAL-A2 are laser sights power-packed with an infrared laser, infrared laser illuminator and a visible Super Power Point laser for maximum daytime visibility. When every second counts, the versatile Laser Devices DBALA2 from Laser Devices is the right choice for any mission or encounter in the law enforcement and military sectors. Laser Devices Laser Sights have exceptional functionality and versatility and the DBAL A2 resulted in its selection for acquision by the U.S. Department of Defense as part of the Multi-functional Aiming Light Contract.

  • Available options of Laser Devices DBAL-A2 Laser Sights with Visible Super Power Point Laser:
  • 40090: Laser Devices DBAL-A2 Laser Sight with Visible Super Power Point Laser, Black
  • 40090F: Laser Devices DBAL A-2 Laser Sight with Visible Super Power Point Laser, Foliage Green
  • 40090D: Laser Devices DBAL A2 Laser Sight with Visible Super Power Point Laser, Desert Sand
  • 40090: Laser Devices DBAL-A2 Laser Sight with Visible Super Power Point Laser, AA Battery Model

Specifications for Laser Devices DBAL-A2 Laser Sight:

Environment:   Waterproof to 3 meters
Height:   1.9 in. / 4.8 cm
Length:   3.35 in. / 8.5 cm
Limited Warranty:   1 year
Material:   Anodized aircraft aluminum 6061T-6
Weight:   7.9 oz. / 224 grams (with battery)
Width:   2.91 in. / 7.4 cm
Battery:   One 3-volt Lithium
Battery Life:   5 hours continuous
Beam Diameter:   Visible/IR pointer-8 mm @ 25 meters
Beam Divergence:   IR illuminator-0-6 degrees
Laser Type:   Visible pointer-Laser Class IIIa  IR pointer/IR illuminator-Laser Class IIIb
Power Output:   Hi-Power Visible pointer-<5mW Hi-Power IR pointer/IR illuminator-<35mW Lo-Power Visible pointer/IR pointer/IR illuminator-<1mW
Range/Visibility:   Visible pointer-450 meters (low light) 30 meters daytime IR pointer/illuminator-2000 meters
Wavelength:   Visible pointer-635nM IR pointer/IR illuminator-835nM

Features of DBAL A2 Laser Sights by Laser Devices:

  • DOD MFAL Contract #W91CRB-05-D-0029
  • Activation indicator
  • Fully adjustable windage and elevation
  • Infrared and visible laser points overlap on target at 10 meters
  • Low battery indicator
  • Low power mode (Laser Class I), for force-on-force training
  • Manufactured in the U.S.A.
  • Meets MIL-STD-810F for adverse environmental conditions
  • Positive On/Off/Kill switch prevents accidental activation
  • Precision glass lens produces a nearly round laser point
  • Single adjustment mechanism for visible and IR pointers (patent pending)
  • Supplied with:
    • A.R.M.S. Throw Lever Mount
    • Battery
    • 7 in. remote cable pressure pad switch
    • Optical pattern generators
    • Nylon pouch
  • Waterproof to 3 Meters
  • Momentary remote cable pressure pad switch and integrated momentary activation switch
  • Single tap enables momentary activation
  • Double tap instantly activates the laser in a continuous ON mode.
  • Built-in safety mechanism returns the unit to momentary activation after 5 minutes.

Package Contents:

  • Laser Devices DBAL - A2 Laser Sights w/ Visible Super Power Point Laser, High Power Infrared Laser and Ir Laser Illuminator DBAL-A2
