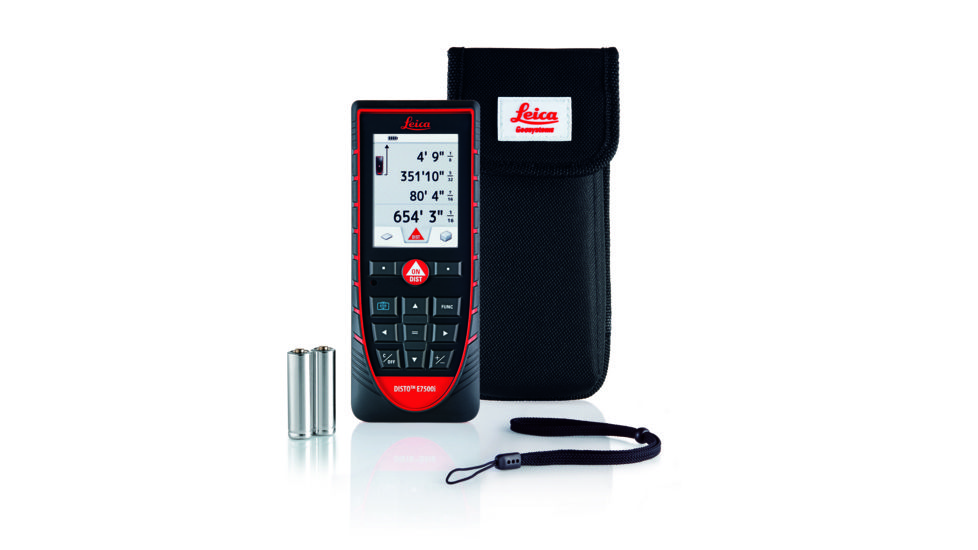

Leica Disto Disto E7500i Laser Distance Meter, Red/Black, 5.6X2.3X1.15in 792320
Code: L4-TL-792320
MPN: 792320
UPC: 7640110694251

Buy now, pay later! Now when you check out at OpticsPlanet with PayPal, you can apply for PayPal's 6 month no payments, no interest option through PayPal Credit. PayPal Credit available in USA only and orders must be over $99 to qualify. Click here to learn more.

Leica Disto E7500i Laser Distance Meter Product Info

The Leica DISTO E7500i Laser Measure makes distance measurements easy! Ideal for use in outdoor environments and construction sites, the Leica DISTO E7500i is a full-featured laser distance meter with a 650-foot range, accurate to one millimeter. The E7500i uses a unique combination of digital Pointfinder technology and a 360° tilt sensor, making possible measurements that conventional distance meters can't do. The Leica DISTO E7500i Laser Tape Measure takes your measurements right to the screen, with an exclusive free Disto Sketch app for iPad and iPhone (supporting BlueTooth Smart 4.0 found in newer generation ipad Retina, Apple Mini, iPhone 4S/5). The Disto E7500i is easy to operate, with an icon based menu, user programmable function keys, color display, and onboard help screen. The color Pointfinder display lets you see where your laser is targeted, even when you're outdoors in full sunlight. Zoom in up to 4X if needed and start measuring instantly. The Leica DISTO E7500i Distance Meter is dust and water jet protected in accordance with IP65 ratings, so it's ready to tackle wet or dusty conditions both inside and out. The Leica E7500i Laser Distance Meter meets ISO 16331-1 standards for distance and accuracy.

The Leica Geosystems DISTO E7500i Laser Distance Measure is fully featured - it has every function that a surveyor, contractor or architect could imagine. Functions include an integrated calculator, area/volume calculations, 2&3 point Pythagoras, stake out, triangle area, delay timer, offset, 30 position memory, height tracking, indirect height, brass 1/4-20 mounting grommet, profile measurement, multifunction end piece with automatic detection, high visibility 4-line color illuminated display, 2 AA batteries, nylon pouch with belt loop, lanyard, quick start guide, producer certificate. When measuring, the default zero point is the back of the unit, but you can toggle to front, back with end piece extended, or tripod mount if desired. The multifunction end piece allows you measure into tight spaces (corners, window tracks) and automatically takes the extension into account. The Leica DISTO E7500i incorporates multiple units of measure options for any job requirement including metric with your choice of decimal places, decimal values in feet or inches, yards, feet/inches/fractional accuracy to 4 levels ( 0'00"1/32, 0'00"1/16, 0'00"1/8, 0'00"1/4) and inches only with fractions to 4 levels (0"1/32, 0"1/16, 0"1/8, 0"1/4).

Leica Disto 792320: Disto E7500i Laser Distance Meter, Red/Black, 5.6"X2.3"X1.15"

Specifications for Leica DISTO E7500i Laser Distance Measure:

Typical measuring accuracy: A± ~1/16"
Range: up to 660 ft
Measuring units: m, ft, in, yd
Power Range Technology: Yes
Laser dot diameter at 10m / 50m / 100m: 6mm, 30mm, 60 mm
Tilt sensor measuring range: 360°
Pointfinder with 4x zoom: Yes
Memory: 30 displays
Free App: Yes
Data interface*: Bluetooth Smart
Measurements per set of batteries: up to 5000**
Multifunctional end-piece: automatic recognition
Batteries: type AA 2 A- 1,5 V
Tripod thread: Yes
Protection class: IP65 - water jet protection and dust-tight
Dimensions: 5.6 x 2.28 x 1.14 in
Weight with batteries: 6.37 oz

Features of Leica DISTO E7500i Laser Tape Measure:

  • Pointfinder with 4x zoom - takes measurements with perfect accuracy and in unfavorable light conditions. A decisive advantage when working outside in sunny weather. Even if the red laser point is no longer visible to the naked eye, the target can be seen exactly in the crosshairs on the display.
  • IP65 water jet protection and dust-tight
  • 360° tilt sensor - measure angles and horizontal distances too! Combined with the Pointfinder, amazing indirect measurement options are provided. Hence, measurements are possible where no reflective target point is available e.g. when determining the height of a tree or when measuring the height of a reflecting glass facade. These could not be measured with a conventional laser distance meter.
  • Smart Horizontal Mode
  • Height tracking - displays distances and height differences to an established reference point. This makes it easy to quickly make profile measurements, without having to use more expensive measuring methods. Also, this function can be used to check whether cross beams are straight, the levelness of existing floors, among other applications.
  • Bluetooth Smart
  • Modern ergonomics - Providing the simplest possible operation of complex measuring functions is a must for Leica Geosystems. The Leica DISTO E7500i has been adapted to the user interface of modern cell phones. Furthermore your favourite functions can be assigned to a pair of selection keys, for quick access with a single button press. And the integrated, easy-to-understand help function does not leave you in the lurch on site.
  • Free App - Leica DISTO sketch - Measurement data can be conveniently and accurately transferred using the integrated Bluetooth Smart Technology. The free app Leica DISTO sketch supports the creation of ground plans or tables on iPhone or iPad. Dimensions can even be entered onto photographs with no effort whatsoever.
  • Tough and easy to clean - IP65 - The housing and keypad are specially sealed against water and dust. Cleaning under running water is also no problem. Furthermore the laser distance meter can be used in all weather conditions, being dust-proof and water jet protected.

Package Contents:

  • Leica Disto E7500i Laser Distance Meter
  • Nylon Pouch
  • Quick Start Guide
  • User's Manual
  • Lanyard
