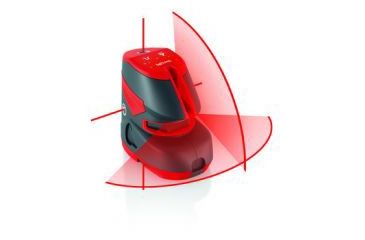

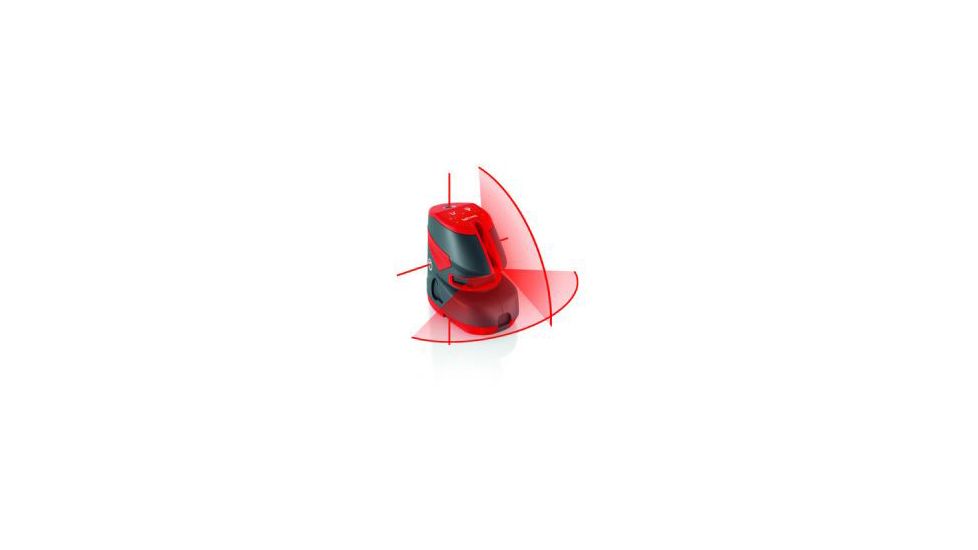

Leica DISTO Lino L2P5 Line and Dot Laser Level, All-In-One Layout and Alignment Tool 777069
$379.00
Code: L4-RF-777069
MPN: 777069
UPC: 7640110692639

Buy now, pay later! Now when you check out at OpticsPlanet with PayPal, you can apply for PayPal's 6 month no payments, no interest option through PayPal Credit. PayPal Credit available in USA only and orders must be over $99 to qualify. Click here to learn more.

Leica DISTO Lino L2P5 Line and Dot Laser Level, All-In-One Layout and Alignment Tool Product Info

The Leica Lino L2P5 Line and Dot Laser Level combines all the advantages of the Lino dot and line lasers. The Lino L2P5 by Leica DISTO has four points and two lines which are exactly at right angles to one another. With the Leica Lino L2P5 you are well equipped for any alignment or leveling task! The proven Leica optics and large emergence aperture of the laser project particularly long lines, an advantage warmly welcomed by users across the full Lino range. Turn the rotatable adapter to transfer reference points in no time at all across the room from one wall to another. Leave your spirit level and string line in your toolbox! Horizontal and vertical aligning Spirit levels and string lines are a thing of the past; now the Leica Lino L2-P5 is the convenient way to transfer reference points from one wall to another or to ensure that wall and floor tile joints precisely meet one another. The adapter supplied with the Leica Lino L2 P5 positions the instrument quickly and with absolute precision. You can set up the adapter over edges and profiles, attach it to circular columns or fix it to steel or iron pipes with the integrated magnets. See our full line of Leica construction lasers well as rangefinders from many top brands. Leica DISTO Lino L2-P5 is a member of the quality line of Leica Disto Rangefinders.

Specifications for Leica DISTO Lino L2P5 Line and Dot Laser Level:

Range: up to 15 m depending on lighting conditions
Range with detector: > 30 m
Leveling accuracy @ 5 m: ± 1.5 mm
Self-leveling range: 4° ± 0.5°
Accuracy o plumb point @ 5 m: ± 1.5 mm
Accuracy of horizontal line @ 5 m: ± 1.5 mm
Vertical accuracy @ 3 m line length: ± 0.75 mm
Number of laser points: 4
Number of laser lines: 2
Beam direction: vertical, horizontal, up, down, right, left
Laser type: 635 nm, laser class II
Batteries: type AA 4 × 1.5 V
Protection class splash water/ dust proof: IP54
Operating temperature: -10 °C to 40 °C
Storage temperature: -25 °C to 70 °C
Dimensions (H × D × W): 117.8 × 130.7 × 75.4 mm
Weight without batteries: 370 g
Tripod thread: 1/4"

Features of Leica DISTO Lino L2P5 Line and Dot Laser Level:

  • Very easy to see laser lines
  • Transferring measured points
  • Horizontal and vertical aligning
  • Expanded range of applications

Package Contents:

  • Leica DISTO Lino L2P5 Line and Dot Laser Level, All-In-One Layout and Alignment Tool 777069
  • Target plate
  • Magnetic multifunction adapter
  • Alkaline batteries (type AA, 4 × 1.5V)
  • Pouch
