Leica Geosystems Rugby 100GC Package with Rod-Eye Basic (Re-chargeable Battery or Alkaline) makes faster work of any layout job while eliminating costly errors and downtime. This Leica Geosystems Surveying Equipment has become the standard in general construction lasers. Ruggedness, accuracy and reliability have been key to the success of the Surveying Equipment by Leica Geosystem.

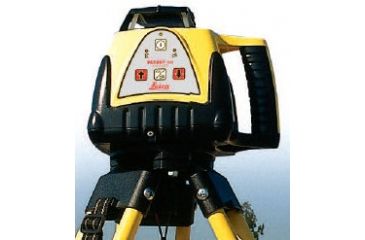

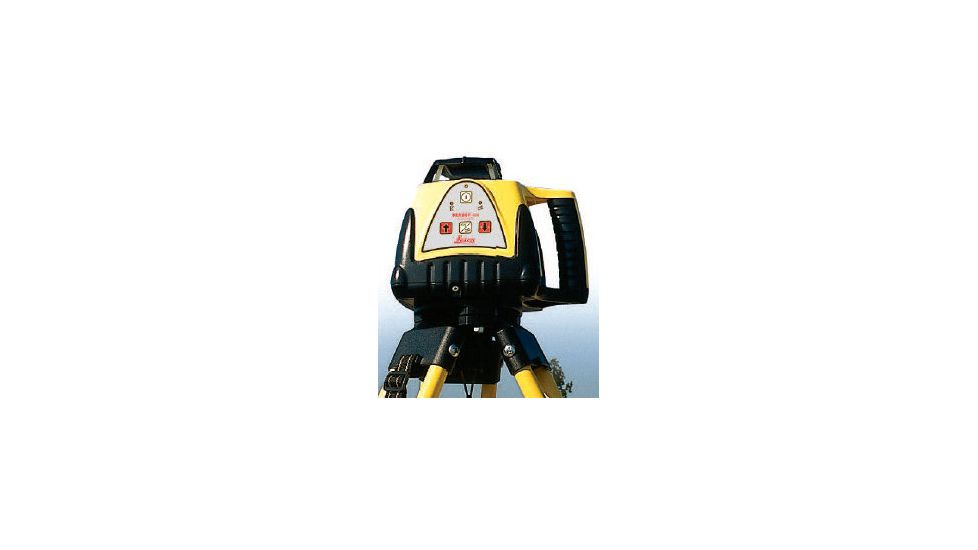

The Leica Geosystems Rugby 100 GC Laser is an automatic self-leveling rotating laser for general construction. Leica Geosystems Construction Laser can make quick work of concrete forming, pad placement and framework, setting foundations and footings, as well as elevation indication for heavy equipment. The Leica Geosystem Rugby 100 automatically levels in under 30 seconds, has a simple four-switch keypad that controls all the functions, plus a low-battery indicator. The co-molded housing of high-impact plastic and rubber is robust and has been engineered to withstand the toughest jobsite conditions. The Rugby Laser by Leica Geosystems can also be set in manual operation up to 10% in one axis for those applications that require a slope.

• Concrete forming, pad placement and framework, setting foundations and footings
• Precise depth control for sub-base and fine grade excavation
• Finish grade and sub-grade
• Machine control.

Available Models of Leica-Geosystems Rugby 100GC Laser and Rod-Eye Basic Package:
• 6003494: Leica Geosystems Rugby 100 GC and Rod-Eye Basic Package, Alkaline
• 6003497: Leica Geosystem Rugby Package 100 GC with Rod-Eye Basic, Re-chargeable Battery

Specifications for Leica Geosystems Re-chargeable Battery or Alkaline 100 GC Rugby Package with Rod-Eye Basic:

Features of Leica Geosystems Rugby 100GC and Rod-Eye Basic Package:

• Automatic self-leveling: no more bubbles or external level vials used - set it down and Rugby levels itself
• Rugby always defaults to automatic mode when switched on to avoid errors
• Two-speed head rotation
• Accuracy of 10 arc seconds (±1/16" at 100 feet / ±1.5 mm at 30 meters)
• Simple keypad controls all functions
• Highly visible beam for quick and easy location
• Out-of-level indicator light
• Low battery indicator light
• Remote low battery indicator prevents unplanned recharge interruptions
• Simultaneous charge and operate function is another time-saving feature
• H.I. (elevation alert) feature prevents errors due to shifting or movement of the tripod.
• Bright, visible beam (635 nm)
• Automatic horizontal self-leveling
• Working range up to 1,000 feet (300 m) with sensor
• Accuracy: +- 1/16" per 100 feet (± 1.5 mm per 30 m)
• Manual up to 10%
• H.I. (elevation) alert: automatic
• 2 head speeds: 5 and 10 RPS
• Housing made from co-molded rubber and high-impact plastic
• Waterproof and dustproof to work reliably in all weather and jobsite conditions
• 24-month knockdown warranty

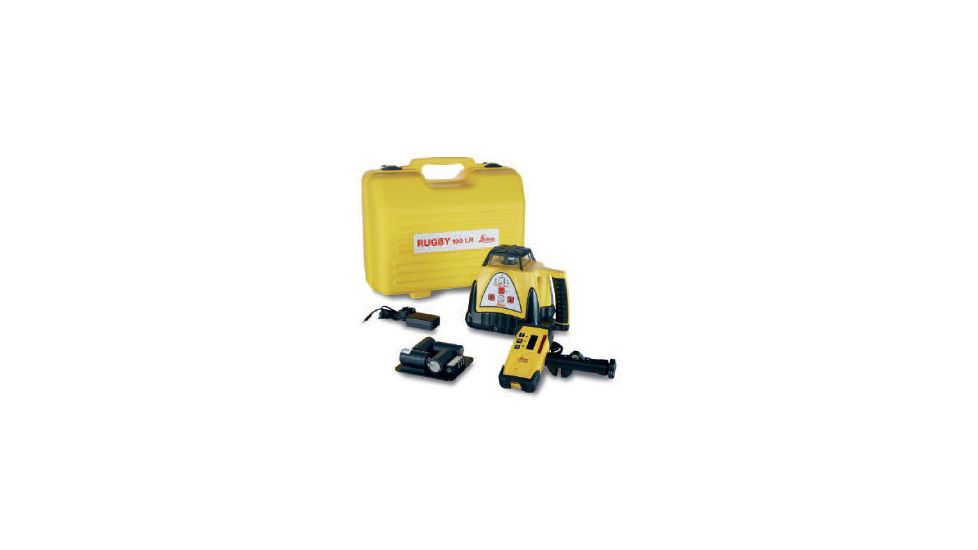

Package Contents:

• Leica Geosystems Rugby 100 GC Package with Rod-Eye Basic (Re-chargeable Battery or Alkaline)
• Leica Geosystems Rugby 100 Laser w/ carrying Case 733620
• Leica Geosystems Rod-Eye Basic with bracket 769811
• 726747 Alkaline Battery Housing w/o batteries (6003494 only)
• 8212806 Alkaline batteries (4D-Cells) (6003494 only)
• 726746 NiMH Battery Pack for Rugby (6003497 only)
• 727165 NiMH Battery Charger for Rugby, 110V (6003497 only)
• 731440 US Cable for Universal Charger (6003497 only)
• 731538 Manual for Universal Charger (6003497 only)
• 727261 Rugby 100 Laser, User Manual
