Product No Longer Available

Unfortunately Leica Geosystems 731047 DIGICAT 100 Underground Service Locator is no longer carried by OpticsPlanet. You can also explore other items in the Surveying Equipment category yourself to try and find the perfect replacement for you!

This model of Leica Geosystems Surveying Equipment is discontinued and no longer available.

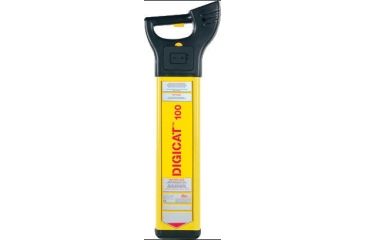

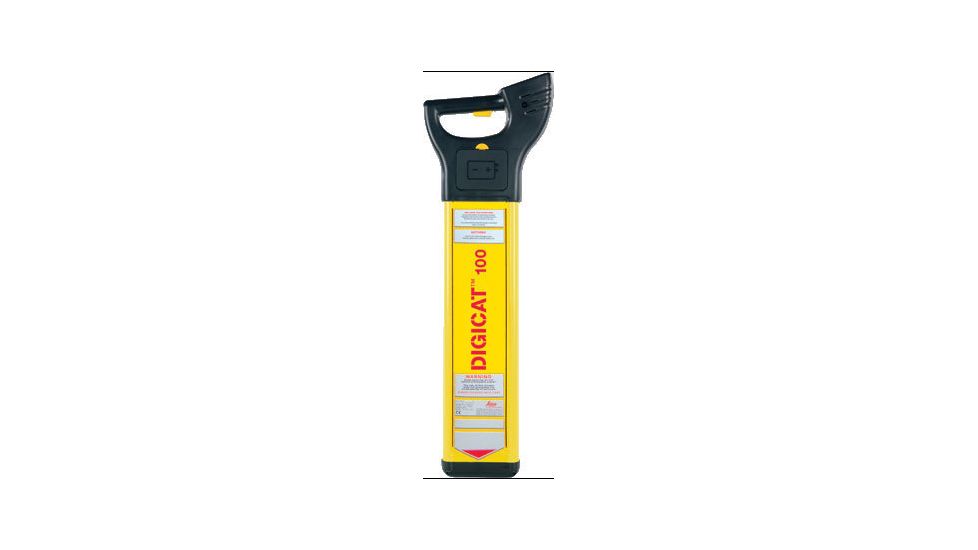

Leica Geosystems 731047 DIGICAT 100 Underground Service Locator Product Info

Leica Geosystems 731047 DIGICAT 100 Underground Service Locator on sale and available from our online store. OpticsPlanet, Inc imageis an Authorized US Distributor for Leica Geosystems Surveying Equipment.

With the DIGISYSTEM operators can locate, trace and mark underground services quickly, precisely and reliably prior to excavation.

Health and Safety authorities all over the world advise that before undertaking any kind of excavation operators should firstly scan an area with a Cable Avoidance Tool. Even with this advice, site workers are still injured and killed due to inadvertently striking buried cables. The Leica DIGISYSTEM product family works to eliminate these sorts of risks on your site by removing the possibility for human error from the locating process using the latest in location technology. By introducing an automatic pinpointing facility to accurately locate the cable, always starting up in power mode and at maximum sensitivity the Leica DIGI System Underground Utility Locators take away the need for awkward manual tuning, keeps you safer and locates faster.

The Leica 731047 DIGICAT 100 Buried Service Locator is designed to help avoid damage to underground services during excavation and is an easy to operate, fully automatic location system with the ability to manually tune if preferred. Active signal tracing is available by using the Leica Geosystems DIGITEX signal generator.

Specifications of Leica Geosystems 731047 DIGICAT 100 Underground Service Locator:

Frequency:  Power mode 50/60 Hz, Radio mode 15-30 Hz

 Generator mode 8 and 33 KHz

Depth:   Power to 10ft 3m, Radio to 7ft 2m, Generator to 10ft 3m
Protection:   Conforms to IP54
Batteries:   6 x AA alkaline (IEC LR6) (supplied)
Battery life:   30 hours intermittent use
Weight:   2.83 kg 6.2 lb including batteries

Features of Leica Geosystems 731047 DIGICAT 100 Underground Service Locator:

  • Always switches on in POWER mode for maximum safety. This ensures that you will locate services carrying a power current first as these can be the most dangerous to hit.
  • Starts up with maximum sensitivity for safe operation, there is no need to adjust any awkward controls, this speeds up the location process considerably.
  • Fully automatic pinpointing for quick and accurate location of the relevant service, without the need for any adjustment by the operator. The DIGICAT 100 Unit has got the facility to manually adjust at the pinpointing stage if that is what the operator is used to, however all adjustments are done automatically within the electronics, no fine-tuning necessary.
  • In-built self-test function (user activated), which tests both the hardware and the software to ensure full functionality of the unit.
  • Audio visual display with simple LED indicators for maximum convenience.
  • Pictographic quick-guide instructions are displayed on the face of the locator to remove the language barrier and for easy on-site reference.
  • Network Rail approved (PADS No: 094/020050) and CableTracks enabled units also available.

Package Contents:

  • Leica Geosystems Leica DIGICAT 100 Undeground Service Locator 731047
  • Leica Geosystems Batteries
  • Leica Geosystems User Manual

Leica Geosystems 731047 DIGICAT 100 Underground Service Locator Unorderable Models

Leica Geosystems 731047 DIGICAT 100 Underground Service Locator, MPN: 731047, Code: L5-SQ-731047
