Leica Geosystems DigiCat 550i 780232
Code: L5-SQ-780232
MPN: 780232
UPC: L5-SQ-780232

Buy now, pay later! Now when you check out at OpticsPlanet with PayPal, you can apply for PayPal's 6 month no payments, no interest option through PayPal Credit. PayPal Credit available in USA only and orders must be over $99 to qualify. Click here to learn more.

Leica Geosystems DigiCat 550i Surveying Equipment Product Info

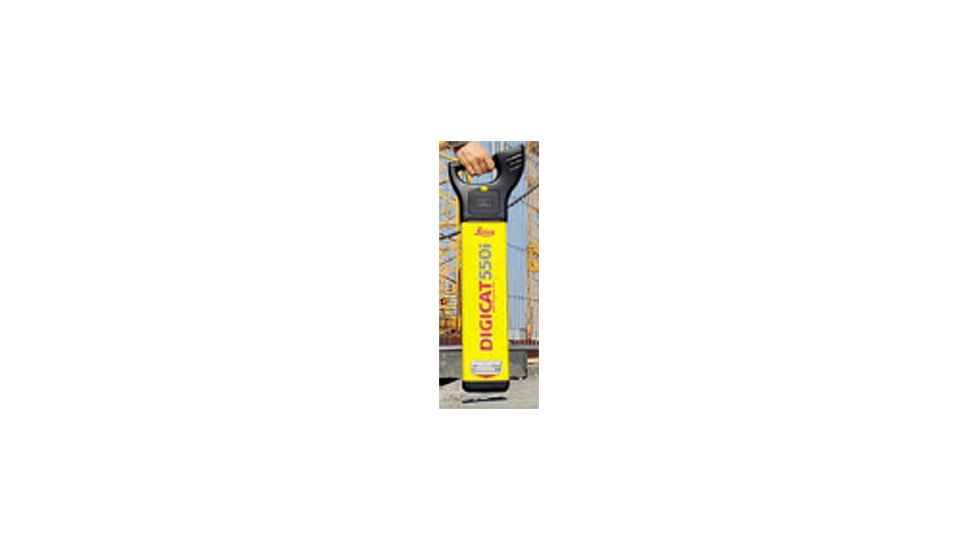

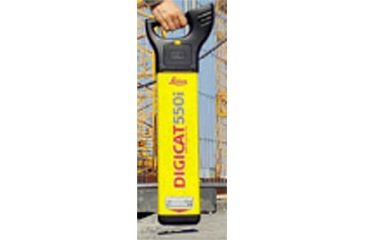

Leica Geosystems DigiCat 550i 780232 allows workers to detect buried utilities with ease. The DigiCat 550i 780-231 from Leica Geosystems is a part of the Leica Digisystem family which provides safe and fast location of underground utilities. Construction companies as well as utility companies want to protect their employees and equipment. Specifically designed to reduce human error, this intelligent and unique surveying equipment will not only increase site safety but also save time and money. From excavation contractors to gas, electric and cable TV companies, having accurate information about the location of utilies underground is not only essential but mandatory in civil engineering.

Leica Geosystems Surveying Equipment such as the DigiCat 550i provide state of the art digital signal processing technology. The robust, lightweight design was specifically engineered for tough work site conditions. The highly visible LCD digital display has a built-in light sensor which automatically activates the backlight in low light or dark conditions. The Leica Geosystems Digi Cat 550i offers surveying with maximum freedom and flexibility. More features of this surveying instrument includes depth indication, enhanced sonde detection, hazard zone alerting for close proximity of buried services and pinpoint assistance for swift accurate service positions. The Leica Geosystem DigiCat 550-i Locator tools are rugged, efficient and will meet all the needs of your tracing operations.

Specifications for Leica Geosystems DigiCat 550i 780232:

Power mode: 50 Hz or 60 Hz
Radio mode: 15 kHz to 60 kHz
Generator mode: 8 kHz and 33 kHz
Auto mode: Equals Power + Radio mode
Depth: Power to 3 m, Radio to 2 m, Generator Mode to 3 m
Depth Estimation (8 kHz & 33 kHz): 10% of depth in line or sonde (0.3 m to 3.0 m depth range)
Protection: Conforms to IP54
Batteries: 6 x AA alkaline (IEC LR6) (supplied)
Battery Life: 40 hours intermittent use (at 20°C)
Weight: 2.7 kg including batteries

Features of Leica Geosystems Digi Cat 550i 780 231:

  • State-of-the-art digital signal processing technology (DSP) for precision service locating.
  • Automatic controls - making the Digicat easy to use, requiring minimal user training.
  • Starts in Power Mode - ensuring the most potentially dangerous current carrying services are detected first for maximum operator safety.
  • Hazard Zone - the new feature which indicates the presence of a shallow buried service in power, 8kHz, 33kHz and Auto mode, (within approximately 30 cm) alerting users to the increased risk.
  • Built-in test function - allowing operators to test the hardware and software functionality of the Digicat before use.
  • Added benefit of utility depth estimation to 3 m for additional survey information

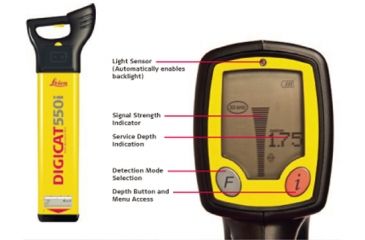

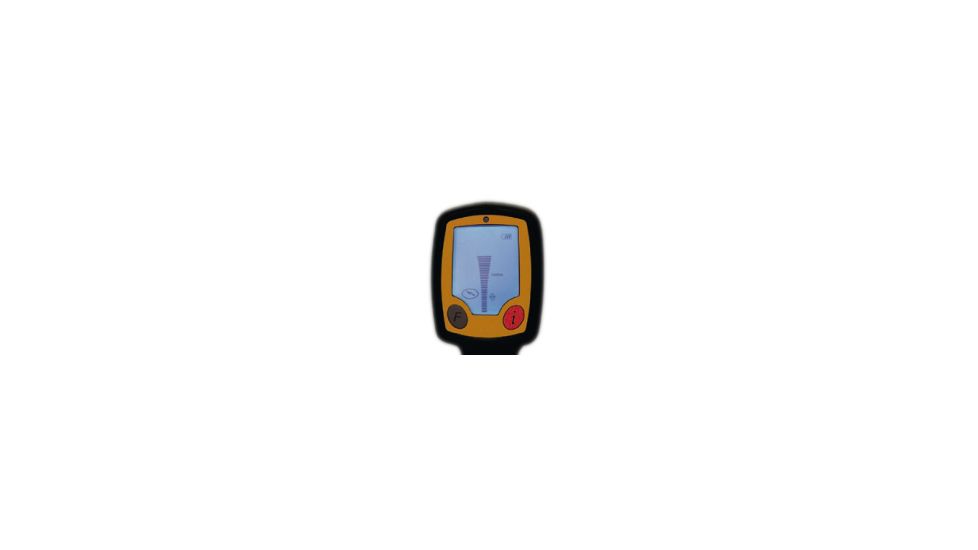

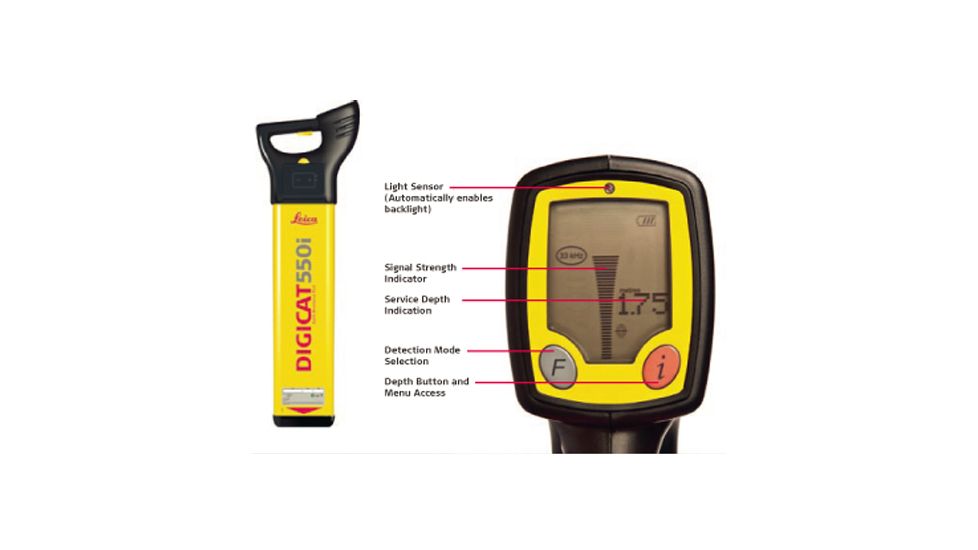

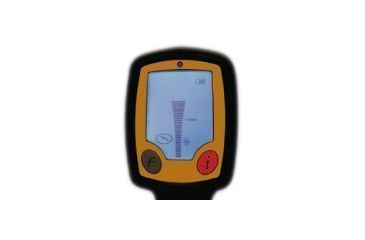

  • Highly visible digital LCD display with built-in light sensor, automatically enabling the backlight in dark conditions.

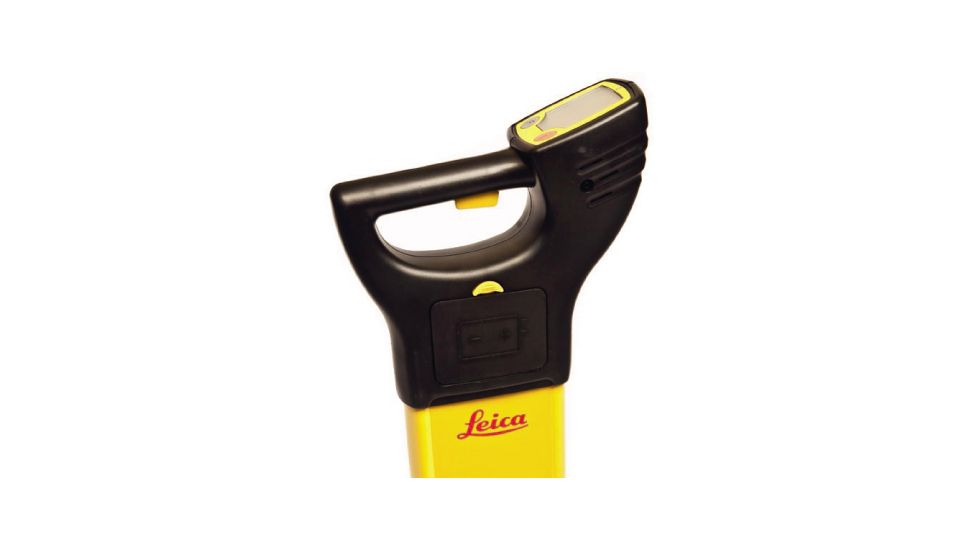

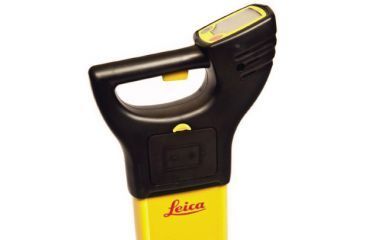

  • Robust, light weight design, specifically engineered for tough site conditions.
  • Auto Mode - Convenient for initial site occupation, simultaneously scanning in Power and Radio.
  • Dual mode active tracing for on-site flexibility.
  • Controls: On/Off, Mode select, i Information select and view.
  • Dust and water protection to IP54.

Package Contents:

  • Leica Geosystems DigiCat 550i 780232
  • (6) AA batteries
  • Quickstarter and CD-ROM including User Manual and Certificate of Confirmity
