Leica Geosystems DIGITEX 8 / 33 Signal Generator 731049 has been discontinued by Leica Geosystems and is no longer available. Our product experts have helped us select these available replacements below. You can also explore other items in the Surveying Equipment category yourself to try and find the perfect replacement for you!

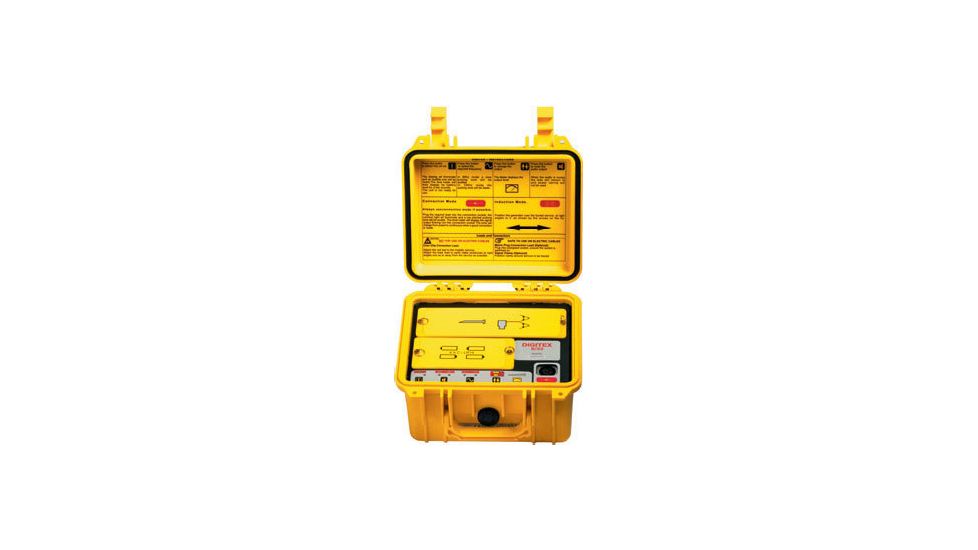

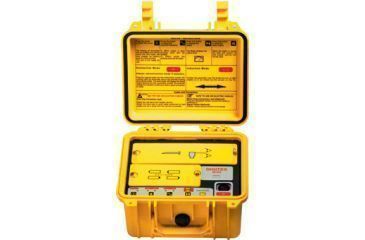

Leica Geosystems DIGITEX 8 / 33 Signal Generator 731049 Product Info

Leica Geosystems DIGITEX 8 / 33 Signal Generator 731049 on sale and available from our online store. OpticsPlanet, Inc imageis an Authorized US Distributor for Leica Geosystems Surveying Equipment.

With the DIGISYSTEM operators can locate, trace and mark underground services quickly, precisely and reliably prior to excavation.Health and Safety authorities all over the world advise that before undertaking any kind of excavation operators should firstly scan an area with a Cable Avoidance Tool. Even with this advice, site workers are still injured and killed due to inadvertently striking buried cables. The Leica DIGISYSTEM product family works to eliminate these sorts of risks on your site by removing the possibility for human error from the locating process using the latest in location technology. By introducing an automatic pinpointing facility to accurately locate the cable, always starting up in power mode and at maximum sensitivity the Leica DIGI System Underground Utility Locators take away the need for awkward manual tuning, keeps you safer and locates faster.

Designed in conjunction with the Leica DIGICAT Underground Locator, to easily and accurately trace the route of, or locate, an underground cable or metal pipe that does not carry a naturally present signal. The Leica DIGITEX 8 / 33 Signal Generator generates a specific  “active” signal, which can then be traced using the Leica DIGICAT Burried Service Locator.

Specifications of Leica Geosystems DIGITEX 8 / 33 Signal Generator 731049:

Frequency:   8 or 33 KHz

 Constant dual frequency available in connection mode

Tracing Range:   Induction typical 1500ft 50m, connection typical 800ft 250m
Protection:   Conforms to IP57 (with the lid shut)
Included Accessories:   Crocodile equipped connection cable set with earth spike
Batteries:   4 x C alkaline (IEC LR14) (supplied)
Battery Life:   40 hours continous use
Weight:   2.95 kg 6.5 lb including standard accessories and batteries

Package Contents:

  • Leica Geosystems Leica 731049 DIGITEX 8/33 Signal Generator
  • Leica Geosystems Connection Cable Set: Earth Spike, Crocodile Connection Cable Set

Leica Geosystems DIGITEX 8 / 33 Signal Generator 731049 Unorderable Models

Leica Geosystems DIGITEX 8 / 33 Signal Generator 731049, MPN: 731049, Code: L5-SQ-731049
