Product No Longer Available

Unfortunately Leica Geosystems LDT-05 Digital Theodolite is no longer carried by OpticsPlanet. You can also explore other items in the Surveying Equipment category yourself to try and find the perfect replacement for you!

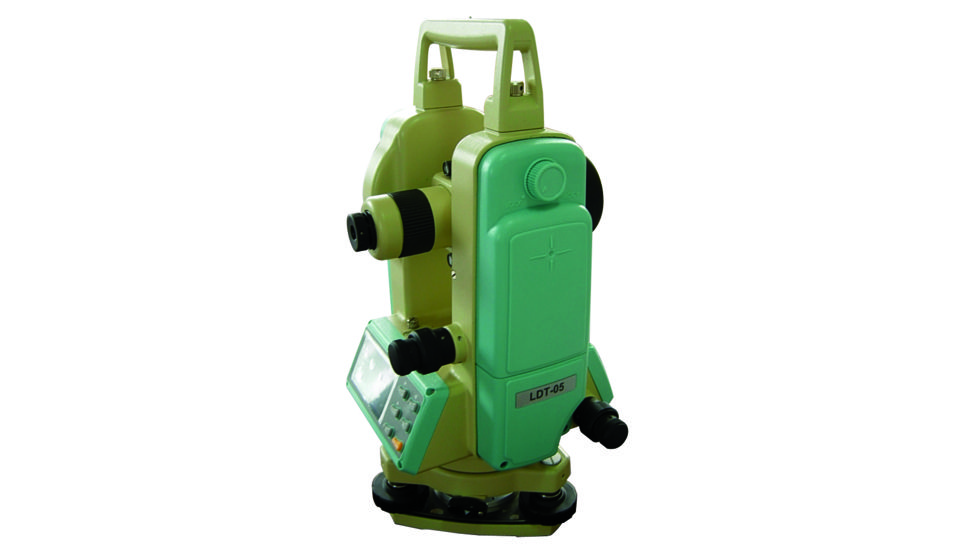

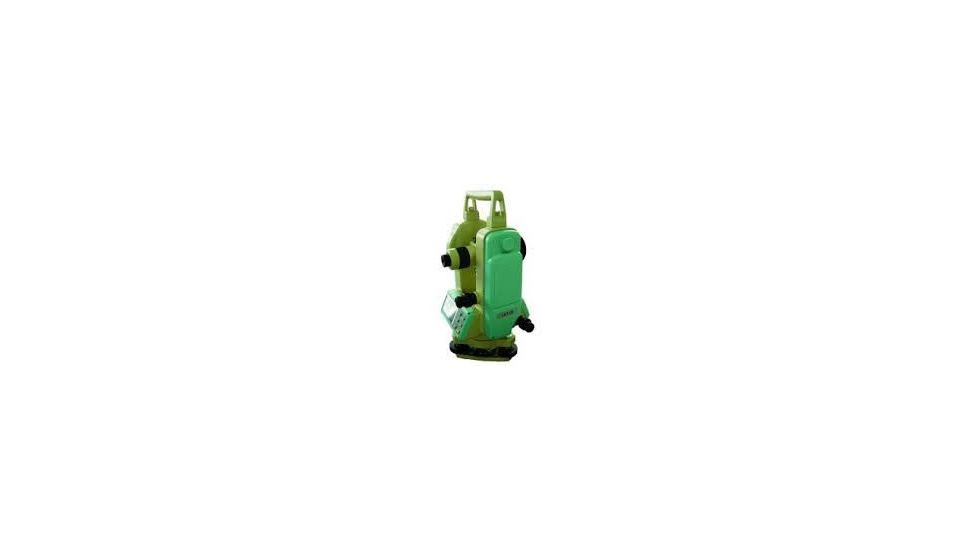

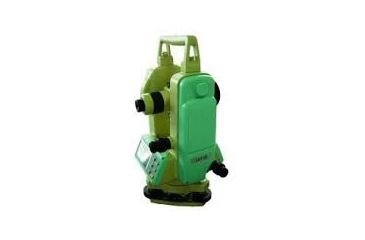

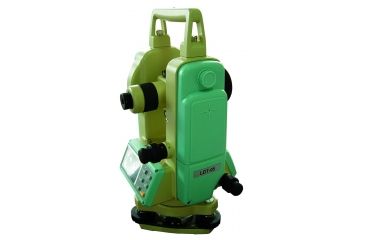

Leica Geosystems LDT-05 Digital Theodolite Product Info

The Leica LDT-05 Digital Electronic Theodolite has been created for improved performance in construction applications. Work faster with the advanced features of this Digital Theodolite from Leica to improve productivityimage while increasing the bottom line.

Specifications for Leica Digital Electronic Theodolite - LDT05:

Image: Erect
Magnification: 30x
Diameter of Objective Lens (Aperture): 1.7 in (45 mm)
Focus Distance: 4.43 ft (1.35 m) to infinity
Field of View: 1 degree 30 minutes
Ratio of Stadia Lines: 1/100
Resolving Power: 3 seconds
Reticule Illumination: Yes, on/off button
Quick Sites (Rough Sites): Yes
Minimum Reading: 1 second, 5 second, or 10 second
Unit of Reading/Measure: Degree / mil / gon / V%
Display: Dual back-lit LCD
Accuracy: 5 second
Measuring Method/Reading System: Incremental photoelectricity
Detection Method: Horizontal both sides, vertical single side
Plate/Tubular Bubble Vial: 30 seconds/2 mm
Circular Bubble Vial: 8 minutes/2 mm
Weight: 10.14 lbs (4.6 kg)
Warranty: 1 year
Dimensions: 6.4 x 6.1 x 13.4 in. (164 x 154 x 340 mm)
Protection Class: IP54
Tripod Thread: 5/8 x 11
Auto Shut Off: After 30 minutes
Tribrach: Detachable
Power Source: NiMH rechargeable, option for 4 AA alkaline batteries
Battery Life: Alkaline - up to 36 hours
Battery Life Alert: Visible alert
Voltage: 4.8

Features of Leica Digital LDT05 Electronic Theodolite:

  • 5-second precision readouts
  • Reticle illuminator
  • Laser plummet
  • IP54 Environmental protection
  • Back-lit LCD display panels
  • 90-Degree Layout
  • Checking Angles
  • Alignment and Plumb
  • Short-Range Leveling
  • General Construction
  • Anchor Bolt Positioning
  • Steel Column Placement
  • Setting Elevations
  • Setting Lines
  • Basic Grade Work

Package Contents:

  • Leica LDT-05 5" Theodolite
  • carry case
  • laser plummet
  • Auto vertical compensation
  • Dual keyboard
  • Rechargeable Alkaline battery with holder
  • Charger
  • Plumb bob, Tool kit and user manual

Leica Geosystems LDT-05 Digital Theodolite Unorderable Models

Leica Geosystems LDT-05 Digital Theodolite, blue/tan 6003830, MPN: 6003830, Code: L5-SQ-6003830
