Unfortunately Leica Geosystems Rugby 270DG General Construction Laser with Rod-Eye is no longer carried by OpticsPlanet. You can also explore other items in the Surveying Equipment category yourself to try and find the perfect replacement for you!

Leica Geosystems Rugby 270DG General Construction Laser with Rod-Eye Product Info

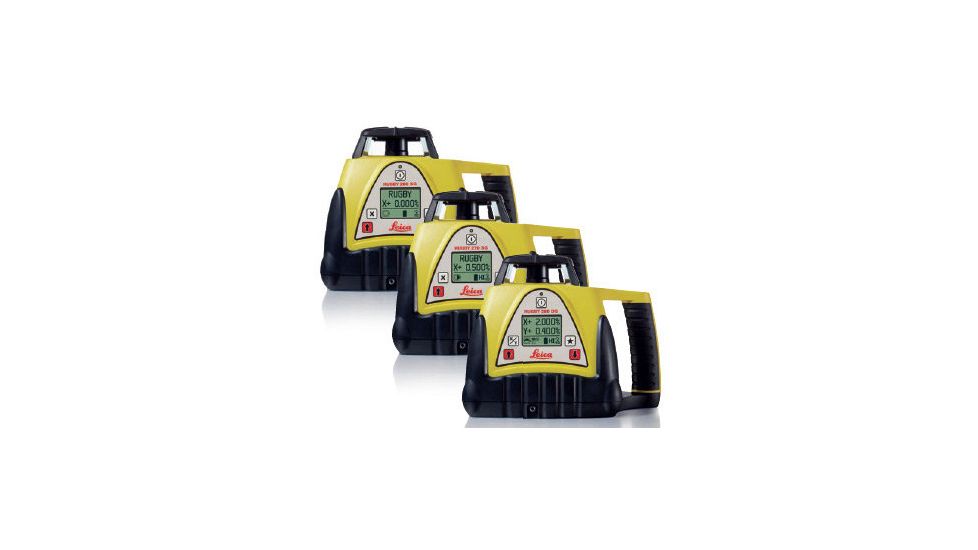

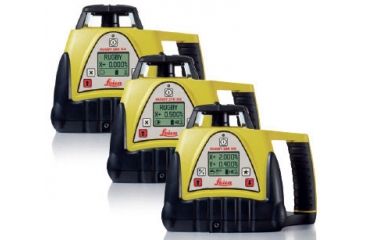

Leica Geosystems Rugby 270 DG Construction Laser with Rod-Eye is a fully automatic, single grade laser for the general construction contractor that needs a levelimage or single slope for flat work, site preparation, septic installation, trenching and more. This Leica Geosystems instrument is a highly accurate, general construction laser with single grade capability. The Surveying Equipment by Leica Geosystem has great accuracy, LCD grade readout and semi-automatic grade with bump alert. Whether you have to precisely lay out a construction site, perform control measurements, collect height and angle data, align concrete forms, install ceilings and partitions, lay gravity flow pipe, locate underground services or complete site preparation and earthworks - Leica Geosystems offers the right instrument, construction laser or machine control installation specifically designed for your construction application. Easy-to-use, jobsite-tough, accurate and reliable - Leica Geosystems instruments and lasers ensure the efficient use of your materials and resources. High-quality products, such as optical and electronic levels, construction lasers, total stations and machine automation systems, provide fast results, keep you working and increase your profitability.

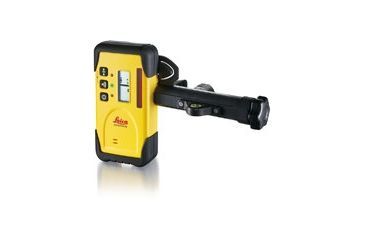

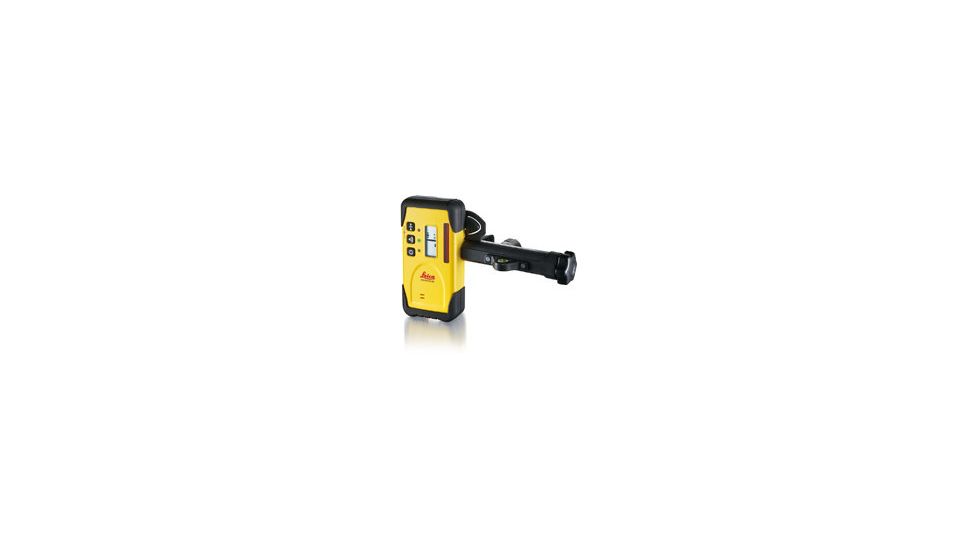

Leica Rod Eye Plus Laser Detector Sensors with bracket is a full featured receiver with proven performance in the field. This Surveying Equipment Accessory by Leica Geosystems has three bright LED's, nine channel arrow display and audio output that provide the user with all the information needed to lock on the laser beam and get the job done right.

Additionally, Leica Geosystems surveying equipment accessory features the double beep beam finder, last beam strike memory, laser low battery indication and the reversible clamp for rectangular or oval rods. All these features put the Leica Rod Eye Plus at the top of the list for today's contractor.

  • Available Models of Leica Geosystems Rugby 270 DG General Construction Laser Packages:
  • 6003543: Leica Geosystems Rugby 270DG Laser with Rod Eye Plus and NiMh Battery Pack

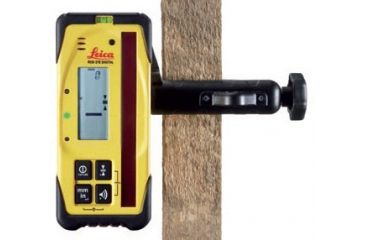

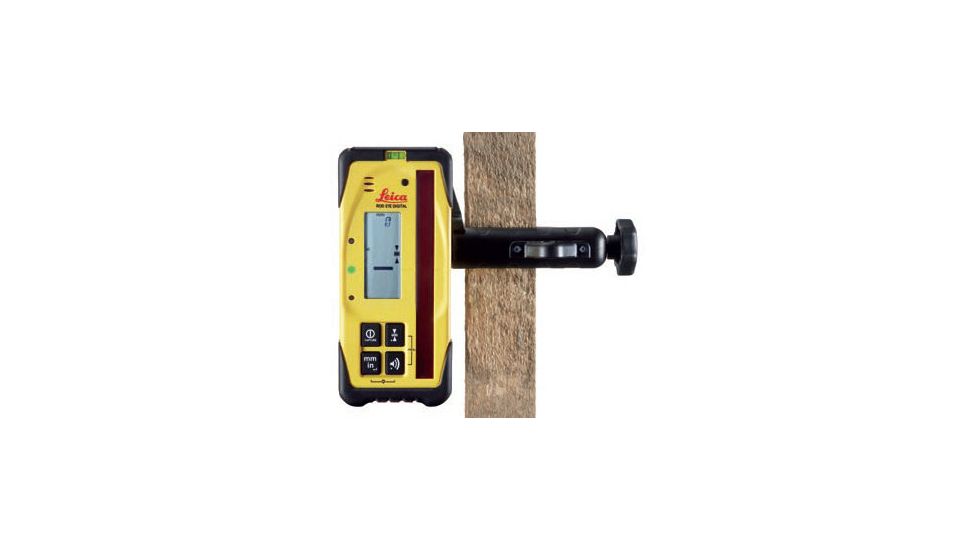

  • 6003544: Leica-Geosystem Rugby Laser 270 DG with Rod Eye Digital and NiMh Battery Pack

Specifications for Leica Geosystems Rugby 270DG Laser with Rod-Eye:

Operating Radius: 350 m (1,150 ft)
Grade Capability: Single axis +- 15%
Rotating Speeds: 5, 10
Self-Leveling Accuracy: 1.5mm per 30 m (1/16" per 100ft.)
Grade Accuracy: 3.0 mm per 30 m (1/8" per 100 ft.)
Self-Leveling Radius: ± 5°
Laser Diode: 635 nm
Size (H x W x D): 197 x 248 x 175 mm (7.8 x 9.8 x 6.9 in)
Weight: 2.95 kg (6.5 lb) with batteries
Operating Temperature: -20 °C to +50 °C (-4 °F to +122 °F)
Battery type: Alkaline or rechargeable NiMH
Battery Life: 70 hours alkaline, 40 hours rechargeable
Environmental: IP67
Warranty: Two year with knockdown warranty / additional three years on request

Package Contents:

  • Leica Geosystems 270DG Rugby Laser Package with Rod-Eye and Batteries
  • Leica Geosystems L768538 Rugby 270SG, Laser with Carrying Case
  • Leica Geosystems Rod-Eye Plus with bracket 769810 (only 6003543)
  • Leica Geosystem 769809 Rod-Eye Digital with bracket (only 6003544)
  • 726746 NiMH Battery Pack for Rugby
  • 727165 NiMH Battery Charger for Rugby, 110V
  • 768840 User Manual Rugby 260-280 English, French, Spanish

Leica Geosystems Rugby 270DG General Construction Laser with Rod-Eye Unorderable Models

Leica Geosystems Rugby 270DG with Rod Eye Plus and NiMh Battery Pack, MPN: 6003543, Code: L5-SQ-270DG-6003543
Leica Geosystems Rugby 270DG with Rod Eye Digital and NiMh Battery Pack, MPN: 6003544, Code: L5-SQ-270DG-6003544
