Product Discontinued by Manufacturer

Leica Geosystems Rugby 50GC Package with Rod-Eye Basic has been discontinued by Leica Geosystems and is no longer available. Our product experts have helped us select these available replacements below. You can also explore other items in the Surveying Equipment category yourself to try and find the perfect replacement for you!

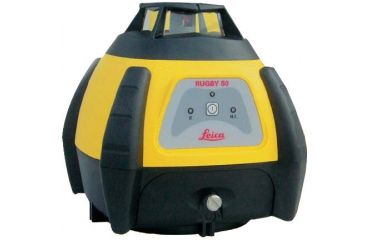

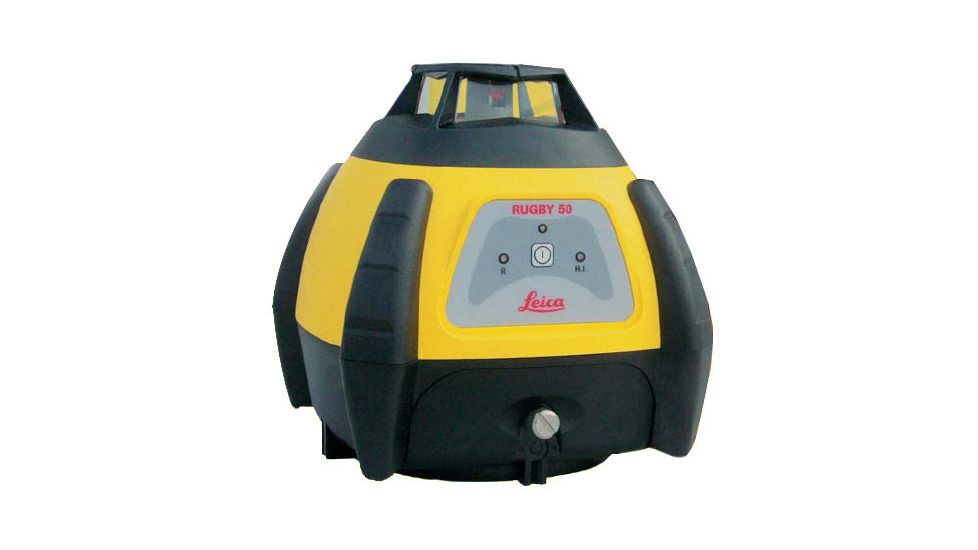

Leica Geosystems Rugby 50GC Package with Rod-Eye Basic Product Info

Leica Geosystems Rugby 50 GC Package with Rod-Eye Basic is simple, one-button operation, fully automatic, laser for agriculture applications. Following in tradition of the imageRugby family this Leica Geosystems Surveying Equipment is rugged, reliable and accurate. The Rugby 50 by Leica Geosystems is the affordable "little brother" of the popular Leica Rugby 100. The Leica Geosystems Rugby 50 provides value where ever it is used. Work gets done faster and more accurately, providing savings in labor, time and materials. As a farmer, you know the values of laser land levelers. This Surveying Equipment by Leica Geosystem, used with a laser sensor fixed on the mast on the scraper unit, guarantees, your field is precisely leveled.

This Leica Geosystems Surveying Equipment is always automatic and self-leveling. The Leica Geosystems Rugby 50 is designed to always turn on in automatic selfleveling mode. No concerns for setting up the laser incorrectly. Set up the Leica Geosystems Rugby 50 within its wide leveling range, the instrument will automatically self-level and work can begin.

The H.I. or Elevation Alert function monitors the leveling of the Leica Rugby 50. Any significant disturbance or movement of the tripod will cause the alert function to activate. The Leica Geo Rugby 50 will stop operation and will sound an alarm to prevent possible errors. During normal operation, the Leica Rugby 50 Geosystems continuously self-levels. Small vibrations and disturbances may cause an out of level condition. The head will stop momentarily and the emission LED will blink until the unit re-levels and work can resume.

Whether you have to precisely layout a construction site, perform control measurements, collect height and angle data, align concrete forms, install ceilings and partitions, lay gravity flow pipe, locate underground services or complete site preparation and earthworks - Leica Geosystems offers the right instrument, construction laser or machine control installation specifically designed for your construction application. Easy-to-use, jobsite tough, accurate and reliable - Leica Geosystems instruments and lasers ensure the efficient use of your materials and resources. High quality products, such as optical and electronic levels, construction lasers, total stations and machine automation systems, provide fast results, keep you working and increase your profitability.

Specifications for Leica Geosystems Rugby 50 GC Package with Rod-Eye Basic:

Operating Range: 800 m Diameter
Self-leveling Accuracy: +-2.6 mm at 30 m (+-3/32" at 100 ft)
Self-leveling Range: +-5
Rotating Speeds: 10 rps (600 rpm)
Laser Diode (type): 780 nm (infrared)
Dimensions (HWD): 158 x 163 x 166 mm (6.2 x 6.4 x 6.5")
Weight with Batteries: 1.85 kg (4.0 lbs)
Battery Type: Two D-cells or NiMH pack
Battery Life: Alkaline - 60 hours, NiMH - 35 hours
Operating Temperature: -20 to +50 C (-4 F to + 122 F)
Storage Temperature: -40 to +70 C (-40 F to +158 F)
Dust / water: (IEC60529) IP55

Features of Leica Geosystem Rugby 50-GC Rod-EyeBasic Package:

  • Simple, one-button operation
  • High impact composite housing
  • Fully sealed with enclosed head
  • Watertight for all conditions
  • Long battery life
  • H.I. (Elevation) Alert protection
  • Low battery indicator
  • Optional alkaline or NiMH batteries
  • Class 1 Laser Product
  • Advantages of laser land leveling over traditional land leveling:
    • Precise level and smoother soil surface, easy land preparation
    • Reduction in time and water required to irrigate the field
    • Uniform distribution of water in the field, less water consumption
    • Uniform moisture environment for crops, less weed problems
    • Good germination and growth of crop, uniformity in crop maturity
    • Reduce sed rate, fertilizer, chemicals, and fuel requirements
    • Improve field traffic ability for the subsequent field operations
  • Benefits of precise land leveling:
    • Saves irrigation water up to 35%
    • Reduced weed in agriculture field
    • Increase in farming area up to 3.5%
    • Increase in productivity up to 50%
    • Reduced farm operating time by 10%
    • Assist tap soil management
    • Saves fuel/electricity used in irrigation
    • Saves labor cost

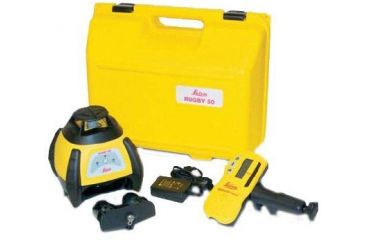

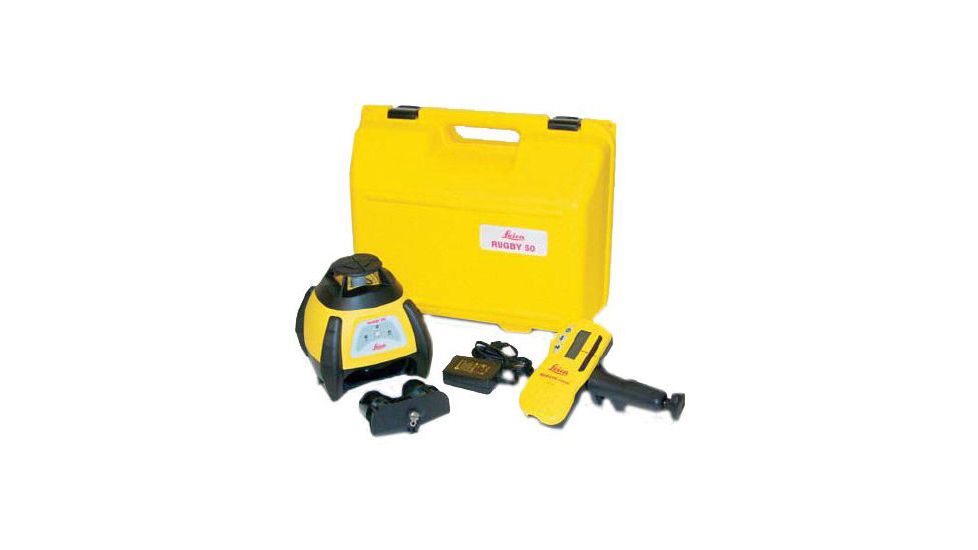

Package Contents:

Leica Geosystems Package Rod-Eye Basic Rugby 50 GC:

  • Leica Geosystems Rugby 50 with Carrying Case 754996
  • Leica Geosystems Rod-Eye Basic with bracket 769811
  • 752048 Alkaline Battery Holder (only 6003466)
  • 8220674 Single D Cell Alkaline Battery (only 6003466)
  • 752049 NiMH Battery Pack, Rugby 50/55 (only 6003467)
  • 727165 NiMH Battery Charger for Rugby, 110V (only 6003467)
  • 31440 US Cable for Universal Charger (only 6003467)
  • 756706 Rugby 50 Laser User Manual - English

Leica Geosystems Rugby 50GC Package with Rod-Eye Basic Unorderable Models

Open Box,Dealer DMO, Leica Geosystems Rugby 50 GC Package Rod-Eye Basic, Alkaline, 6003468, MPN: 6003468-DMO, Code: L5-SQ-50GCBasic-6003468-DMO
Leica Geosystems Rugby 50 GC Package Rod-Eye Basic, Alkaline, MPN: 6003468, UPC: Basic-6003468, Code: L5-SQ-50GCBasic-6003468
Leica Geosystems Rugby 50 GC Package Rod-Eye Basic, Re-chargeable, MPN: 6003469, Code: L5-SQ-50GCBasic-6003469
