Product No Longer Available

Unfortunately Leica Geosystems Sprinter 250M Electronic with 1 mm accuracy, internal memory, USB cable and manual is no longer carried by OpticsPlanet. You can also explore other items in the Surveying Equipment category yourself to try and find the perfect replacement for you!

Leica Geosystems Sprinter 250M Electronic with 1 mm accuracy, internal memory, USB cable and manual Product Info

Leica Geosystems 1.0 mm accuracy Sprinter 250M Electronic Level is the perfect tool for advanced construction levelling tasks. With this Leica Geosystems Electronic level you can store upimage to 1000 measurements, download and transfer them for further calculations to Excel to a PC via USB. The delta height calculation and programs line levelling, cut & fill and monitoring facilitates your levelling jobs significantly. The 0.7 mm accuracy of the 250M and the monitoring program allow machine and construction subsidence measurements.

Whether you have to precisely lay out a construction site, perform control measurements, collect height and angle data, align concrete forms, install ceilings and partitions, lay gravity flow pipe, locate underground services or complete site preparation and earthworks – Leica Geosystems offers the right instrument, construction laser or machine control installation specifically designed for your construction application. Easy-to-use, jobsite-tough, accurate and reliable – Leica Geosystems instruments and lasers ensure the efficient use of your materials and resources. High-quality products, such as optical and electronic levels, construction lasers, total stations and machine automation systems, provide fast results, keep you working and increase your profitability.

Specifications for Leica Geosystems Sprinter 250M Electronic Level, 1.0 mm accuracy:

Height accuracies: Standard deviation height measurement per 1 km double run (ISO 17123-2)
Electronic measurement: 1.0/0.7* mm
Optical measurement: With standard aluminum E-scale/Numeral staff: 2.5 mm
Single staff reading: Standard Deviation 0.6 mm (electronic) and 1.2 mm (optical) at 30m
Distance accuracies: Standard deviation distance measurement 10 mm for D 10 m and (Distance in m x 0.001) for D > 10 m
Range: 2 - 100 m (electronic)
Measuring modes: Single and Tracking
Time for single measurement: <3 sec
Compensator: Magnet damped pendulum compensator (range +/- 10min)
Data storage: up to 1000 points (only 150M)
Telescope: Magnification (optical) 24x
Environmental conditions: IP55
Power supply: AA dry cells (4 x LR6/AA/AM3 1.5 V)
Weight: <2.5 kg
Accuracy per km double-run: 1.5 mm
Height and distance: yes

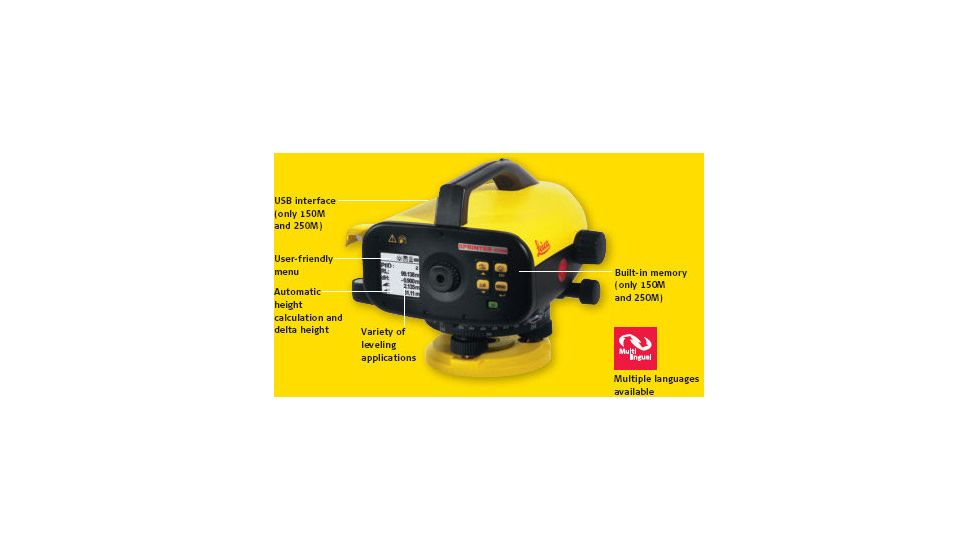

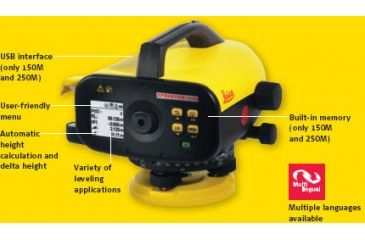

Features of Leica Geosystems Sprinter 250M Electronic Level, 1.0mm accuracy:

  • Aim and Focus: With its high-accuracy optical elements you simply aim and focus the staff as an optical level.
  • Push the Button: With its easy one-button operation, Leica Sprinter does not need any intensive training. Simply push the red button to take the measurement. That's all you need to do.
  • Read: Optical reading is no longer needed. The bar code on the staff determines height and distance which is displayed on a highly visible LCD display. There will be no misreading.
  • Calculate: The Leica Sprinter takes on your calculations. Choose the right application in your language.
  • The correct results will be displayed: Delta height, Line levelling, Cut & fill, Tracking & monitoring
  • Memorize: With their built-in memory for storing up to 1000 points, the Sprinter 250M avoid transcription errors.
  • Download: With Leica Sprinter 250M, data can be downloaded to your personal computer via USB Interface. The Sprinter DataLoader enables a smooth data transfer to Excel. Your measurements can also be transferred to an external data collector via RS232 interface.
  • Leica Sprinter Onboard Software:
    • Delta height
    • Line Levelling
    • Cut & fill
  • USB interface
  • User-friendly menu
  • Automatic height calculation and delta height
  • The right levelling applications
  • Built-in memory

Package Contents:

  • Leica Geosystems Sprinter 250M Electronic level with internal memory, 1.0 mm accuracy
  • USB cable
  • User manual
  • Case

Leica Geosystems Sprinter 250M Electronic with 1 mm accuracy, internal memory, USB cable and manual Unorderable Models

Leica Geosystems Sprinter 250M, Electronic Level, 1.0mm accuracy, internal memory , USB cable, user manual and case, MPN: 762631, UPC: L5-SQ-762631, Code: L5-SQ-762631
