Select a Model
$995.00
Model: Leica Geosystems Sprinter 50 (DECIMAL FEET display) Electronic Level Package
Code: L5-SQ-Sprinter50Pack-6002128
MPN: 6002128
$995.00
Model: Leica Geosystems Sprinter 50 (METRIC digital display) Electronic Level Package, (with METRIC staff)
Code: L5-SQ-Sprinter50Pack-6002129
MPN: 6002129

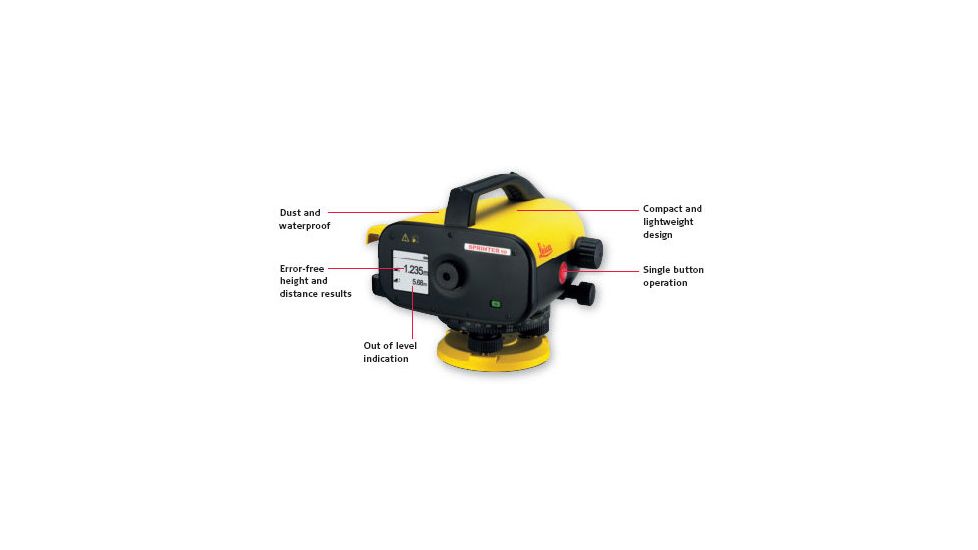

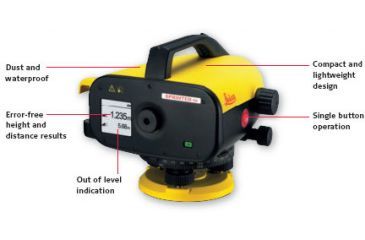

Leica Geosystems Sprinter 50 (METRIC or DECIMAL FEET display/measurements) Electronic Level Package Product Info

Leica Geosystems 2.0mm accuracy Sprinter 50 Electronic Level Package is an accurate electronic level, that provides error-free measurements and readings. One-button digital leveling - Quick to imagelearn and operate. This Leica Geosystems instrument from Sprinter Family automatically determines height and distance. Aim and focus, measure with one key press and the data is displayed almost instantly. Surveying Equipment by Leica Geosystem is easier to use than a conventional level.

The Leica Geosystems Sprinter 50 is the perfect leveling tool for your daily levelling tasks. Just aim, focus and measure by pressing one button, the data is displayed almost instantly. There will be no more misreading. Error reducing functions, such as the tilt sensor prevent the system from measuring if the user operates outside the compensator range. You always measure and read error-free! Any levelling - at any place - for anyone Use the Leica Sprinter 50 Electronic Level as a multifunctional levelling tool: elevation control, height control, platform/concrete casting stakeout, rectangular area stakeout, distance measuring, as-built elevation checking, grade checking, area leveling, volume determination of earth/dirt moving operations.

With its high-accuracy optical elements you simply aim and focus the staff as an optical level. With its easy one-button operation, Leica Sprinter does not need any intensive training. Simply push the red button to take the measurement. That's all you need to do. Optical reading is no longer needed. The bar code on the staff determines height and distance which is displayed on a highly visible LCD display. There will be no misreading.

  • Available Models of Leica Geosystems Sprinter 50 Electronic levels:
  • 6002128: Leica Geosystems Sprinter 50 (DECIMAL FEET display) Electronic Level Package
  • 6002129: Leica Geosystems Electronic Level Sprinter 50 (METRIC digital display) Package, (with METRIC staff)

Specifications for Leica Geosystems Sprinter 50 Electronic Level, 2.0 mm accuracy:

Height accuracies: Standard deviation height measurement per 1 km double run (ISO 17123-2)
Electronic measurement: 2.0 mm
Optical measurement: With standard aluminum E-scale/Numeral staff
Single staff reading: Standard Deviation 0.6 mm (electronic) and 1.2 mm (optical) at 30m
Distance accuracies: Standard deviation distance measurement 10 mm for D 10 m and (Distance in m x 0.001) for D > 10 m
Range: 2 - 100 m (electronic)
Time for single measurement: <3 sec
Compensator: Magnet damped pendulum compensator (range +/- 10min)
Telescope: Magnification (optical) 24x
Environmental conditions: IP55
Power supply: AA dry cells (4 x LR6/AA/AM3 1.5 V)
Weight: <2.5 kg
Accuracy per km double-run: 2.0 mm
Height and distance: yes

Features of Leica Geosystems Sprinter 50 Electronic Level, 2.0mm accuracy:

  • User-friendly menu
  • Automatic height calculation and delta height
  • The right leveling applications
  • Minimize Human Errors
  • Operate in Low Light Conditions
  • Easy one-touch operation C simply push the red button
  • Quick height and distance result C the reading is displayed almost instantly
  • Reliable and error-free reading, even in dim light conditions
  • Quicker and easier than an optical level

Package Contents:

  • Leica Geosystems Sprinter 50 Electronic Level, 2.0mm accuracy, w/user manual and case
  • 636977 GSB5 Sunshade for digital level.
  • 741906 GKL25-1 Charger for 4xAA(R6) Rechargeable batteries, US. + 4 AA 1.2V/2300mAh NiMH rechargeable batteries.
  • 741883 GSS111-1 Dual face telescopic levelling staff, 16.4ft, 4 sections, SPRINTER barcode / ft-graduation, with circular bubble, in transport bag, (tenths/hundreths).
