Leica Lino L360 Laser Level Product Info

The Leica Lino L360 Laser Level projects laser lines quickly, accurately and further - increasing the working range to 360 degrees. The Leica Disto L360 Level uses proven Power Range Technology to ensure outstanding visibility of the lines. This combination makes the Leica Lino L360 a valuable partner at any construction site and allows perfect leveling and alignment.

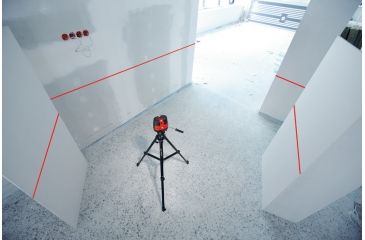

The Leica Lino L360 Laser provides continuous and exact 360° laser lines, projecting a laser line all round with millimeter accuracy. Reference points and lines can thus be quickly transferred from one wall to another without having to rotate the instrument. That is a crucial advantage when creating height reference points. Furthermore, the horizontal laser line can be projected very closely to the ground. This particularly simplifies laying floor coverings and controlling heights. Moreover, the Leica Disto Lino L360 Construction Laser Level provides an additional 180° vertical laser line for further possible uses.

Equipped with a self-leveling system and a simple user interface, the Leica Lino L360 can be set up easily and quickly. The user interface with only two keys is self-explanatory. Thanks to the self-levelling, minor inclinations are automatically compensated for. Where greater tilting occurs, the laser lines blink to indicate that the self-levelling function is no longer active. The self-leveling function can also be switched off manually using the lock function. On the one hand this serves as transport protection and on the other allows the laser lines to be projected in any position.

The Leica Disto L360 Construction Level is a rugged line laser, with a long battery life, and includes a full set of matched accessories. The Leica Lino L360 is a rugged instrument with protection class IP65, i.e. it is dust proof and protected against hose water. Furthermore, thanks to the rechargeable battery pack, its lengthy operating time of up to 20 hours is also a convincing argument. A multi-functional adapter which can be used either as a small tripod or magnetic wall holder is included in the scope of supply. For simply setting up the Leica Lino L360 and adjusting the height, Leica Geosystems can provide the new Leica TRI 70 elevator tripod (working height 40 to 115 cm) and the TRI 100 (working height 70 to 174 cm). With the Leica CET103 elevator tripod, a working height of up to 246 cm is provided.

Specifications for Leica Disto Lino 360 Laser Range Finder & Level:

Range: up to 15 m
Range with detector: > 15 m
Leveling accuracy @ 5 m: A± 1.5 mm
Self-leveling range: 3.5° A± 0.5°
Accuracy of horizontal line @ 5 m: A± 1.5 mm
Vertical accuracy @ 3 m line length: A± 0.75 mm
Beam divergence: 360° (horizontal)
Beam direction: vertical, horizontal
Laser type: 635 nm, laser class II
Batteries: rechargeable battery pack
Protection class: IP65 dust-proof and jet water protected
Operating temperature: - 10°C to 40°C
Storage temperature: -25°C to 70°C
Dimensions (HxDxW): 131.7 x 145 x 96.2 mm
Weight with batteries: 1009 g
Tripod thread: 1/4"

Features of Leica Disto L-360 Laser Range Finder and Level:

  • 360° horizontal line close to floor - You do not need to turn the device, to transfer reference points from one side to the other. Furthermore the laser line is very close to the floor, allowing you to check levels easily.
  • Pendulum based self-leveling - The instrument is set up quickly thanks to a well-dampened pendulum, effortlessly projecting horizontal and vertical lines. Minor angular misalignments of 3.5°A± 0.5° are compensated automatically. If the tilt is outside these limits, the laser lines will flash to prevent errors.
  • Clever mini tripod adapter - It is much more than a small tripod. With the integrated magnets it can be fixed to steel or iron pipes and used as a wall bracket. To fix it on a non magnetic surface, simply take a nail and hang it up.
  • Rechargeable Battery pack - No need to buy stocks of batteries. With the in-built rechargeable battery pack and extended operating time of over 20 hours, the L360 is a reliable tool on your construction

Package Contents:

  • Leica Lino L360 Line Laser
  • Target plate red
  • Mini tripod adapter
  • International charger with 4 plugs
