Product No Longer Available

Unfortunately Leica Geosystems ROD-EYE Classic Laser Detector Sensors is no longer carried by OpticsPlanet. You can also explore other items in the Surveying Equipment Accessories category yourself to try and find the perfect replacement for you!

This model of Leica Geosystems Surveying Equipment Accessories is now discontinued and no longer available.

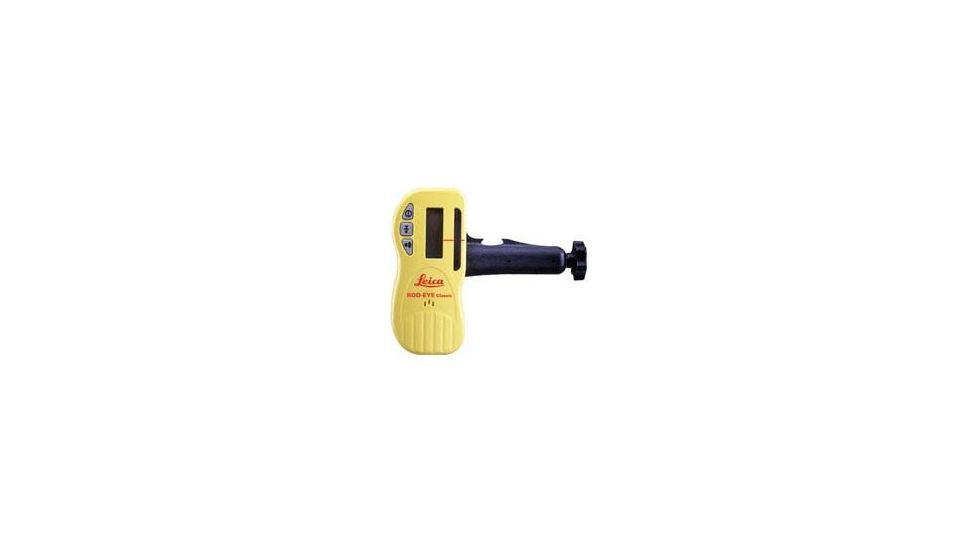

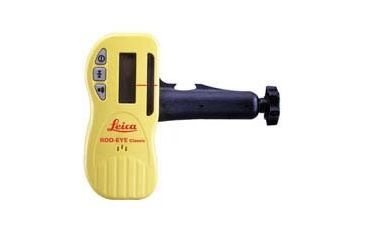

Leica Geosystems ROD-EYE Classic Laser Detector Sensors Product Info

Leica ROD-EYE Classic Laser Detector Sensors on sale and available from our online store. OpticsPlanet, Inc imageis an Authorized US Distributor for Leica Geosystems Surveying Equipment Accessories.

The Leica ROD EYE Classic Sensor is a mid-range sensor for general construction applications.

The Leica Geosystems ROD EYE Family of Sensors offers solutions for any general construction and interior application, and are ideally matched to work with the RUGBYTM Family of Lasers. They are construction-tough, designed to work in harsh, loud environments, and provide precise and repeatable accuracy. The Leica ROD-EYE sensors emit three selectable beeper sounds (rapid, slow, and continuous, when high, low, and on-grade, respectively) to meet your job site conditions.

The Leica Geosystems ROD-EYE Classic Laser Detector is a mid-range sensor for general construction applications. Like the Leica Pro Sensor, it has an LCD on both the front and rear for fast and easy visual reference, and has a working diameter of 2,500 ft (750 m). The Leica Rod Eye Classic Sensor is extremely simple and easy to use, and features a 24-month warranty.

Available Leica Geosystems Rod Eye Classic Laser Detectors:

  • Leica 740022 Rod-Eye Classic Laser Sensor w/o Bracket
  • Leica 739575 Rod-Eye Classic Laser Sensor w/ Bracket

Specifications of Leica ROD-EYE Classic Laser Detector Sensors:

Working Diameter:   6 ft to 2500 ft (2 m to 750 m)*
Detection Height:   2 inches (50 mm)
Detection Accuracy:   Standard Accuracy Bandwidth Fine ± 0.040 in (1 mm) Course ± 0.120 in (3 mm)
Reception Angle:   ± 45°
Display:   LCD front and rear
Grade Display:   5 channel grade display
Beeper Volumes:

High 110 dBA

Low 90 dBA

Off

Battery Size:   2 AA
Battery Life:   70+ hours**
Low Battery Indicator:   Yes
Rod Master:   No
Automatic Shut Off:   30 minutes
Dimensions:   6.4 x 2.9 x 1.2 inches (163 x 74 x 30 mm)
Offset notch:   2 inches (50 mm)
Operating Temperature:   -20°C to 60°C (-4° F to 140°F)
Memory, Last Beam Strike:   No
Rod-Eye Clamp:   Yes
Warranty:   24 months

* Transmitter Dependent

** Battery life is dependant upon environmental conditions

   Download Leica broshure

Features of Leica ROD-EYE Classic Laser Detector Sensors:

  • Liquid Crystal Display (LCD) front and rear
  • Working diameter of 2,500 ft (750 m)
  • Detection height of 2 inches (50 mm)
  • 5-channel grade display
  • Beeper emits an audible tone that indicates on-grade, high or low
  • Accurate sensing bands are user selectable
  • Specifically designed for use in harsh, loud, construction environments
  • Works with any rotating laser
  • General purpose clamp designed to mount on various mounts and staffs
  • 24-month warranty

Package Contents:

  • Leica ROD-EYE Classic Laser Detector Sensors

Leica Geosystems ROD-EYE Classic Laser Detector Sensors Related Products

Leica Geosystems ROD-EYE Classic Laser Detector Sensors Unorderable Models

Leica Geosystems Rod-Eye Classic Sensor w/o Bracket 740022, MPN: 740022, UPC: BACCBB-740022, Code: L5-AQ-BACCBB-740022
Leica Geosystems Rod-Eye Classic Sensor, Bracket 739575, MPN: 739575, Code: L5-AQ-BACCBB-739575
