Product No Longer Available

Unfortunately LeicaGeosystems Rugby Machine Laser 410DG with Rod Eye Plus is no longer carried by OpticsPlanet. You can also explore other items in the Surveying Equipment category yourself to try and find the perfect replacement for you!

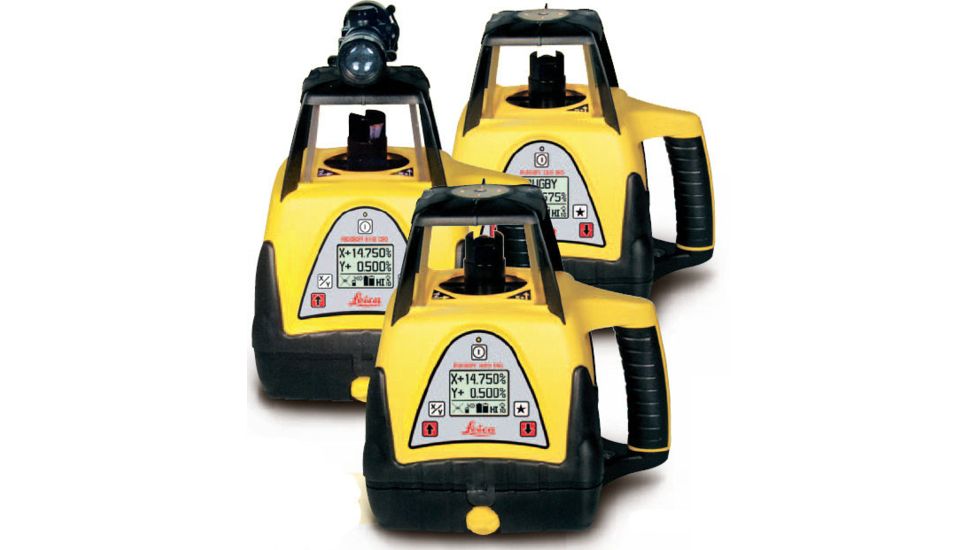

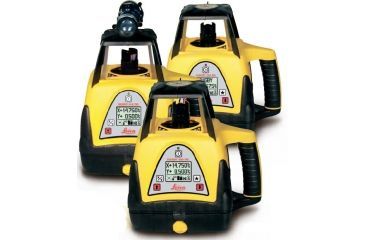

LeicaGeosystems Rugby Machine Laser 410DG with Rod Eye Plus Product Info

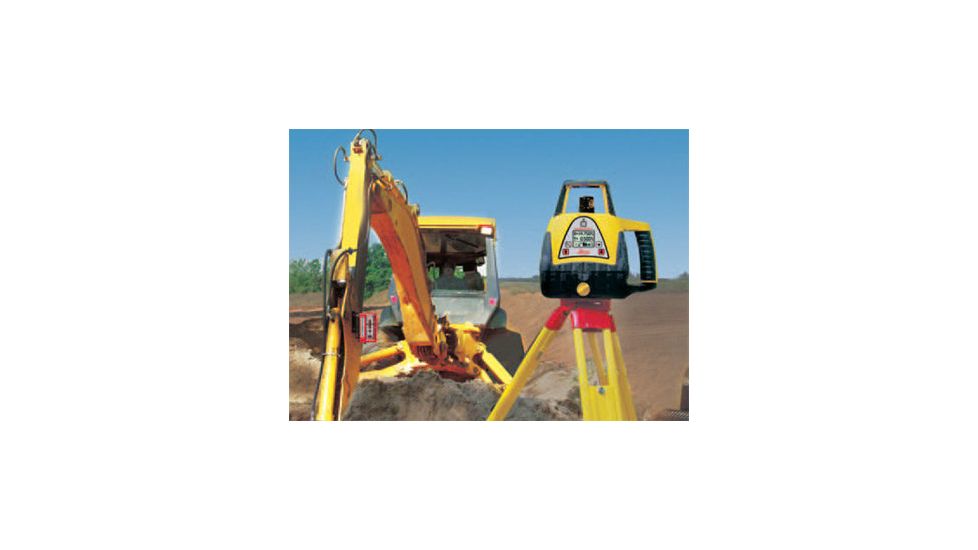

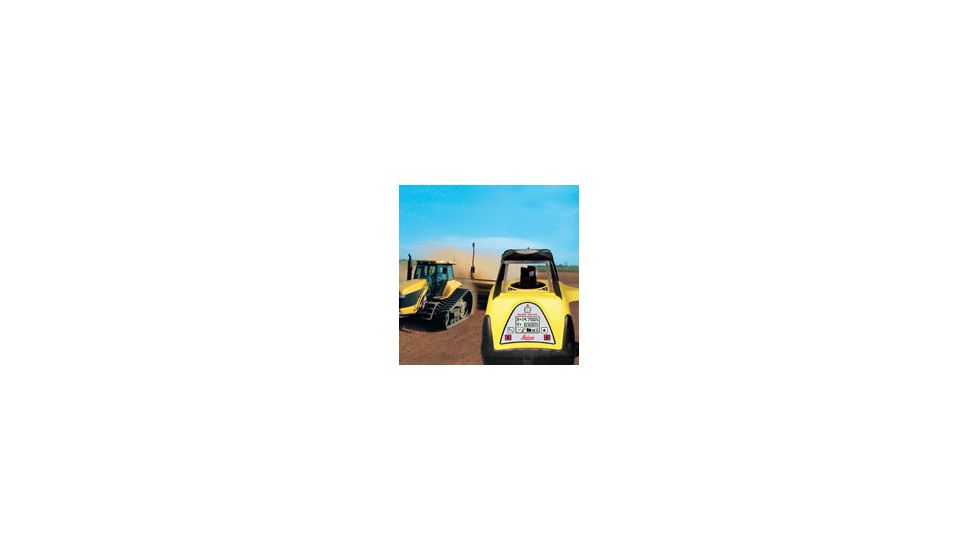

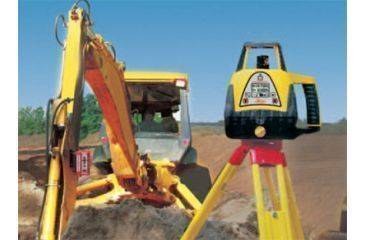

Leica Geosystems Rugby 410DG with Rod Eye Plus is designed specifically for complete compatibility with Leica Geosystems' machine control solutions, e.g. The Leica Rugby 410 DG Surveying Equipment is perfectly suited for the agriculture market, where accuracy over a long-range is required. Making the grade is what the Surveying Equipment by Leica Geosystems from Ruby Series is all about. Whether your work requires level, single or dual grades and high accuracy over a long distance range, the Leica Rugby's extensive features will ensure both material and labor savings, keeping you on target to increase your bottom line. The Leica Grade Lasers are automatic and selfleveling for jobs of any size, large or small. Leica Rugby Grade Lasers can be used for any application involving precise grade control.

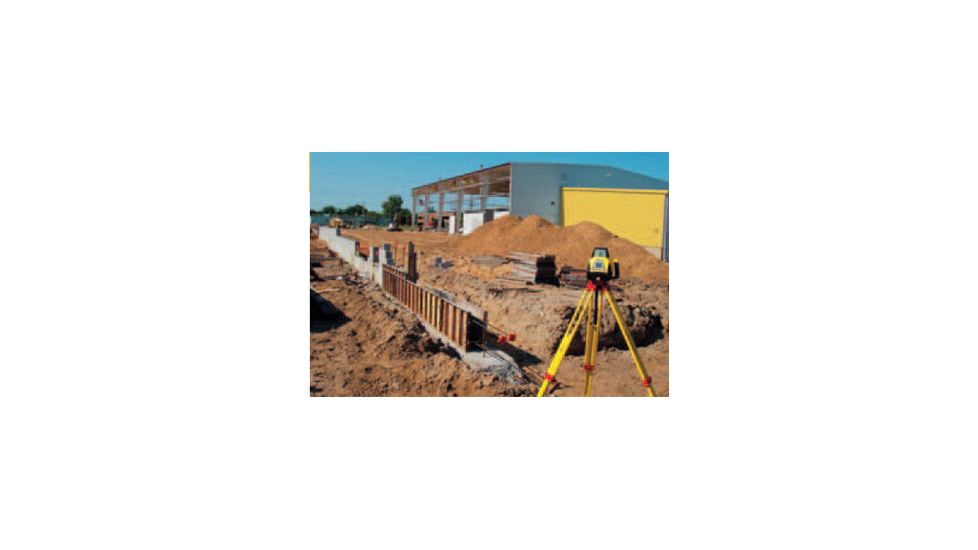

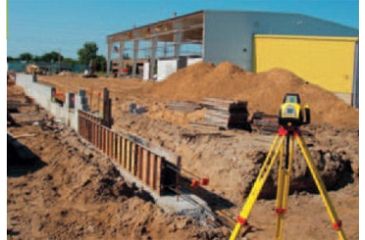

Whether you have to precisely lay out a construction site, perform control measurements, collect height and angle data, align concrete forms, install ceilings and partitions, lay gravity flow pipe, locate underground services or complete site preparation and earthworks - Leica Geosystems offers the right instrument, construction laser or machine control installation specifically designed for your construction application. Easy-to-use, jobsite-tough, accurate and reliable - Leica Geosystems instruments and lasers ensure the efficient use of your materials and resources. High-quality products, such as optical and electronic levels, construction lasers, total stations and machine automation systems, provide fast results, keep you working and increase your profitability.

Leica Rod Eye Plus Laser Detector Sensors with bracket is a full featured receiver with proven performance in the field. This Surveying Equipment Accessory by Leica Geosystems has three bright LED's, nine channel arrow display and audio output that provide the user with all the information needed to lock on the laser beam and get the job done right.

Additionally, Leica Geosystems surveying equipment accessory features the double beep beam finder, last beam strike memory, laser low battery indication and the reversible clamp for rectangular or oval rods. All these features put the Leica Rod Eye Plus at the top of the list for today's contractor.

Available Models of Leica Geosystems Rugby 410DG Grade Laser with Rod-Eye Plus:

  • 6003520: Leica Geosystems Rugby 410DG Laser with Rod Eye Plus and One pack of NiMh Batteries
  • 6003521: Leica-Geosystems Rugby Machine Control Laser 410DG Package with Rod Eye Plus & RF Remote Control (One pack of NiMh Batteries)
  • 6003524: Leica Geosystem Rugby 410 DG with Rod Eye Plus (Alkaline Batteries)
  • 6003525: LeicaGeosystems Rugby 410 DG Grade Laser with Rod Eye Plus & RF Remote Control (Alkaline Batteries)

Specifications for Leica Geosystem 410DG Rugby with Rod Eye Plus:

Operating Range (Diameter): 800m
Self-Leveling Accuracy: +- 1.6 mm per 30 m / +- 1/16 inch per 100 ft
Self-Leveling Range: +- 5
Grade Capability: - 5 to + 25 % in either axis (- 5 to + 15 % in both axes)
Grade Resolution: 0.001 %
Rotating Speeds: 5, 10, 15, 20 RPS
Laser Diode: 780 nm invisible (IR)
Size (H x W x D): 265 x 260 x 200 mm / 10.4 x 10.2 x 7.9 inch
Weight: 5 kg / 11.1 lbs without batteries
Operating Temperature: - 20 to + 50 C / - 4 to + 122 F
Battery Type: alkaline or NiMH
Battery Life: up to 130 hours with alkaline; up to 100 hours with rechargeable
Environmental watertight: to IPX-7 standard
Warranty: 2 years factory warranty / additional 3 years optional
Remote Control Specifications
Instrument Leica Rugby: 410/420 DG
Distance: 225 m / 750 ft typical
Battery Type: four AAA alkaline
Size: 155 x 70 x 45 mm (H x W x D) 6.1 x 2.8 x 1.8 inch
Weight: 410 g / 14.4 oz
Frequency: 2405 - 2480 MHz

Features of Leica Geosystems Rugby 410DG Surveying Equipment:

  • Easy foundation setting because of 5-button keypad
  • Superior power management for working without interruptions (up to 130 hours)
  • Full-function long-range two way remote control
  • saves time and reduces communication errors from inside or outside the cab of the machine
  • High-power laser beam provides enhanced distance performance
  • Rugged and reliable, works when you need it
  • Building pads, parking lots and runways
  • Precise depth control for sub-base and fine grade excavation
  • Agricultural applications such as land leveling or tiling
  • Concrete forming and framework
  • Retention ponds and batters
  • Setting foundations and footings
  • Machine control with the Leica Depthmaster, Power-Grade, Power-Blade and PowerDigger systems
  • Waterproof and dustproof to work reliably in all weather and job site conditions
  • High-impact composite housing with protective rubber overmolding
  • Cast aluminum base withstands rough handling and creates a stable platform
  • Enclosed head for maximum internal component protection
  • Long-range two-way remote control, optional with the Leica Rugby 400 Series
  • Superior battery concept (alkaline or NiMH rechargeable)
  • Designed for agriculture applications, such as land leveling and tiling
  • Highest accuracy over long distances
  • Align the laser with a simple one-person operation using the manual-axis-alignment feature
  • Eliminate communication errors using the longrange remote control
  • Stablelaser plane over the whole temperature range
  • High performance for all day use

Package Contents:

  • Leica Geosystems Rugby 410DG with Rod Eye Plus:
  • Leica Geosystems 765666 Rugby 410DG, Laser with Carrying Case
  • LeicaGeosystems Rod-Eye Plus with bracket 769810
  • 766323 Rugby 410-420DG User Manual English
  • 739855 NiMH Battery Pack, Rugby 300-320SG/400-410-420DG (only 6003520 and 6003521)
  • 741349 NiMH Charger, 100-240VAC to 12VDC (excluding AC power cable) (only 6003520 and 6003521)
  • 731440 US Cable for Universal Charger (only 6003520 and 6003521)
  • 765668 RF Remote Control (only 6003521 and 6003525)
  • 8212806 Alkaline batteries (4D-Cells) (only 6003524 and 6003525)

LeicaGeosystems Rugby Machine Laser 410DG with Rod Eye Plus Unorderable Models

Leica Geosystems Rugby 410DG with Rod Eye Plus (Alkaline Batteries), MPN: 6003524, Code: L5-SQ-410DGPlus-6003524
Leica Geosystems Rugby 410DG with Rod Eye Plus (One pack of NiMh Batteries), MPN: 6003520, Code: L5-SQ-410DGPlus-6003520
Leica Geosystems Rugby 410DG with Rod Eye Plus & RF Remote Control (Alkaline Batteries), MPN: 6003525, Code: L5-SQ-410DGPlus-6003525
Leica Geosystems Rugby 410DG with Rod Eye Plus & RF Remote Control (One pack of NiMh Batteries), MPN: 6003521, Code: L5-SQ-410DGPlus-6003521
