Product No Longer Available

Unfortunately Litepanels 1x1 LED Lighting Fixture - Flood, Spot, SuperSpot is no longer carried by OpticsPlanet.

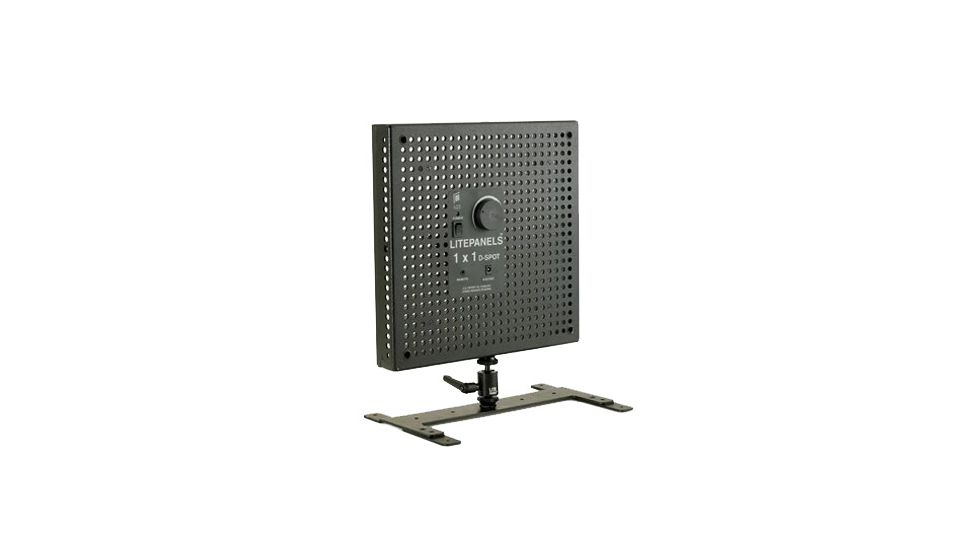

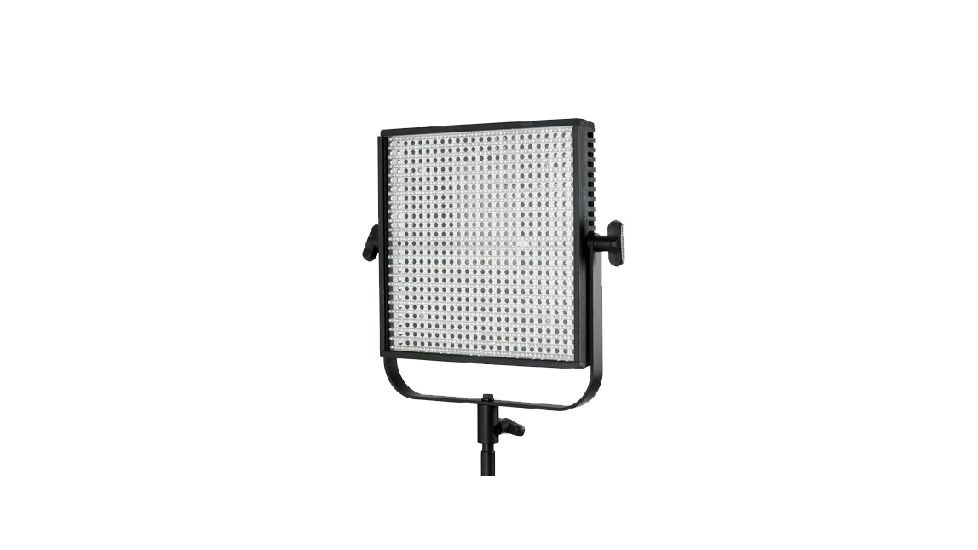

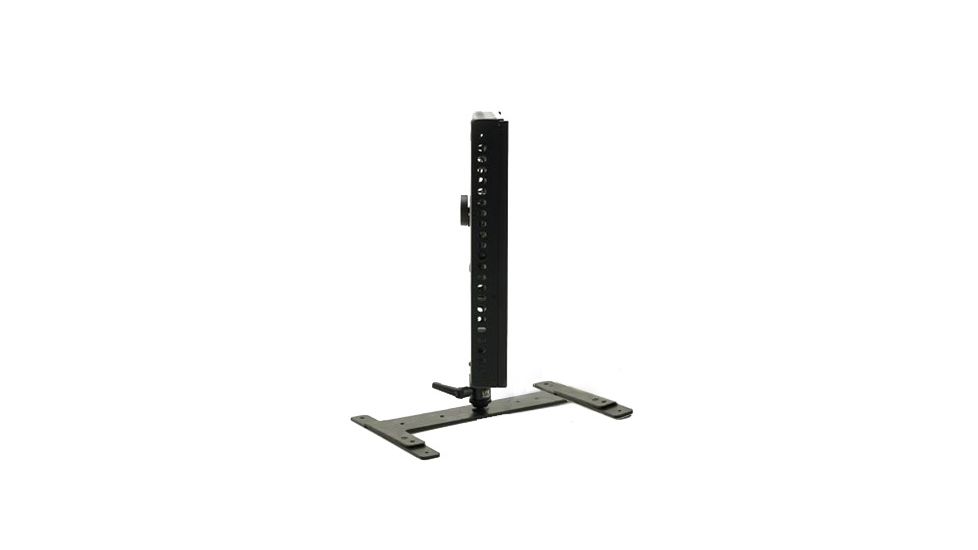

Litepanels 1x1 LED Lighting Fixture - Flood, Spot, SuperSpot Product Info

Litepanels 1x1 Lighting Fixture is the most versatile production light ever built. Combining Litepanels' hallmark LED technology in a sophisticated, slimline housing, this revolutionary modular lighting system provides 1'x1' of pure, luminous, soft, directional output. The Litepanels 1x1 shares many of the technical innovations designed by Litepanels to give you an unmatched level of lighting control. An ergonomic control knob on the back enables instant dimming from 100% to 0 with minimal color shift. Absolutely silent & flicker-free and heat-free, the system can be positioned comfortably close to a subject's face, filling it with an unmatched quality of soft, wrap-around light. For even more control, a set of 6 interchangeable slide-in conversion and diffusion filters is available in various configurations for both daylight and tungsten versions.

Employing Litepanels' ultra-efficient LEDs, the system draws just 40 Watts @ 24V, yet outputs the equivalent of 500 Watts. This Litepanels Photo & Video Light is powered via an external 100-240VAC international adapter, which provides 24VDC to the unit. Equipped with an XLR power connector cable, the 1x1 can also run off a variety of 18-28VDC sources, including a standard camera battery, car battery, or an optional Backpack PowerCell. Designed for quick and easy set up and operation, Litepanels 1x1 measures just 12" (30.48cm) square, has a thickness of only 1.75" (43mm), and weighs a mere 3 lbs. (1.36kg). This ultra-flat profile, lightweight system adapts readily to a variety of lighting situations. The unit mounts easily on a light stand or tripod via a yoke with standard TVMP receptacle. Coupled with dedicated mounting hardware, the modular housing enables 2'x2' and 4'x4' multi-panel configurations - making the units able to fit a wide range of jobs. In addition, Litepanels' groundbreaking design provides operators with a unique view-thru capability. The housing features an integrated pattern of hundreds of precisely aligned mini-portals. This offers the ability to view the subject being illuminated from behind the unit.

The Workhorse - Battery & AC powered 1x1 Litepanels' lightweight, ultra-flat profile 1x1 is the most versatile production light ever built. Designed for quick set up and operation, the fixture mounts easily overhead - or elsewhere - to bathe a studio in soft, directional, luminous output. Its modular housing can be combined into 2'x2' and 4'x4' multi-panel configurations to fit a wide range of jobs. What's more, the 1x1's optional snap-on battery allows for location shooting without generators or power cables.

Litepanels existing 1x1 LED (light emitting diode) slimline fixtures have gained universal acceptance in the production community. The popular 1x1 Spot fixtures, focused the 5600K beam to 30 degrees. Now the Litepanels 1x1 Super-Spot further focuses the output to a 15-degree beam, which concentrates the light in a smaller area, and provides a longer throw of the light. Like all Litepanels fixtures, the 1x1 Super-Spot remains cool to the touch and uses a small fraction of the power used by traditional lighting fixtures. The 5600K Super-spot offers an integrated control knob on the back enables instant dimming from 0 to100% with minimal shift in color. Silent and heat-free, Litepanels 1x1s can be positioned comfortably close to a subject. Engineered for quick and easy set up and operation, Litepanels 1x1 Super-spot weighs just 3 lbs. (1.36kg) and measures 12" W x 12" H x 1.75" D (30.5cm x 30.5cm x 4.4 cm). This lightweight, ultra flat-profile system adapts to a variety of lighting situations. The units yoke allows for mounting via standard TVMP receptacle. Its housing enables multi-panel configurations, making it easy to customize to each jobs specific requirements. Plus, it is equipped with remote dimming capability. The 1x1 Super-spot can be powered from a variety of 12-30V sources, including an optional battery, car battery, or AC adapter. The optional on-board 1.75-hour lithium-ion battery pack provides undeterred mobility. For additional lighting control, Litepanels offers interchangeable slide-in color/diffusion gel filters for both daylight and tungsten versions.

Litepanels 1x1 Light Fixtures are available in Flood (5600 and 3200 K), as well as Spot and SuperSpot configurations (5600 K):

  • LP LP1-F: Litepanels Lighting Fixture 1x1 Flood Daylight (5600K)
  • LP LP1-FT: Litepanels 1x1 Flood Tungsten Light (3200K)
  • LP LP1-S: Litepanels 1xx 1 Spot Daylight (5600K) Lighting Fixture
  • LP LP1-SS: Litepanels 1x1 Super Spot Daylight Lighting Fixture (5600K)

Specifications for Litepanels 1x1 Lights:

Size: 12"W x 12"H x 1.75"D (30.48cm x 30.48cm x 43mm)
Weight: 3 lbs. (1.36kg)
Power Draw: 40 Watts @24V, 45 Watts @ 12V
Power Supply: 18-28V, AC Adapter 100-240V
Distance: 4 ft./1.2 m 8 ft./2.4 m 12 ft./3.6 m
Footcandles: 160 fc 52 fc 20 fc
LUX: 1700 Lux 560 Lux 210 Lux
F-Stop: 4.0 2/3 2.8 1.4 2/3
Distance: 4 ft./1.2 m 8 ft./2.4 m 12 ft./3.6 m
Footcandles: 210 fc 64 fc 32 fc
LUX: 2200 Lux 690 Lux 340 Lux

Features of Litepanels 1x1 32-5600K Lighting Fixture:

  • Only 1.75" (44 mm) thick
  • Ultra-lightweight & portable
  • 12" (30.48 cm) square
  • Runs on AC adapter or battery
  • Heat free & flicker free
  • Dims 100% to 0 with minimal color shift
  • Remote dimmer available
  • Modular design for multipanel configuration
  • 5600°K daylight or 3200°K incandescent versions
  • 50,000+ hours of LED life
  • View-thru to see the talent
  • Litepanels award-winning LED technology
  • Optional Backpack PowerCell (1.75 hrs.)
  • Ballast free
