Product No Longer Available

Unfortunately Magellan Portable GPS Receiver SporTrak Color - 980616-20 is no longer carried by OpticsPlanet. You can also explore other items in the GPS category yourself to try and find the perfect replacement for you!

This model of Magellan GPS is discontinued and no longer available. Please, choose from our wide selection of Garmin GPS Systems, Pharos Digital Navigation, and other GPS on our site.

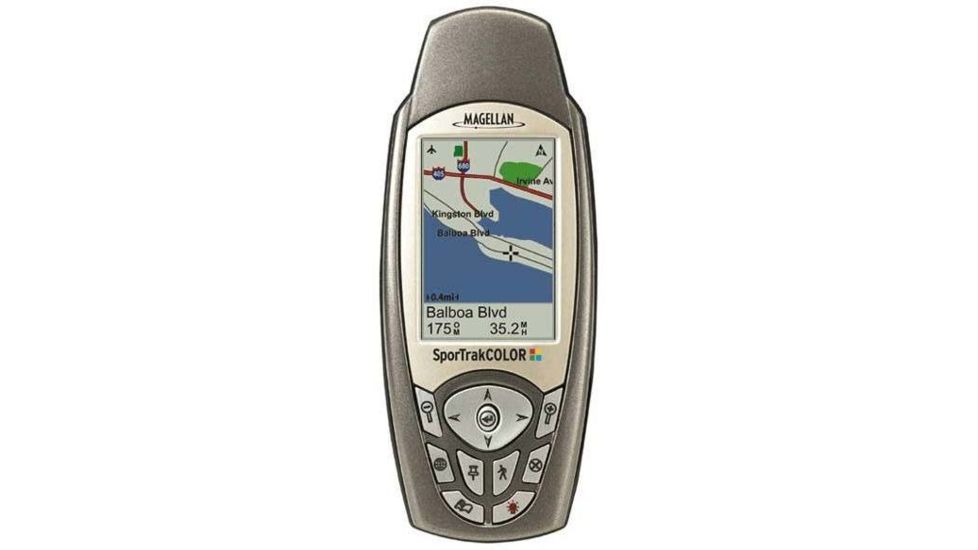

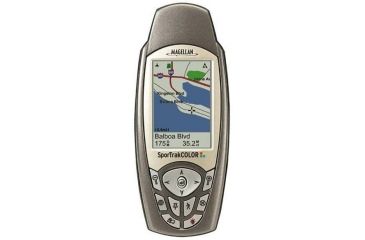

Magellan Portable GPS Receiver SporTrak Color - 980616-20 Product Info

With Magellan Portable GPS Receiver SporTrak Color - 980616-20 navigate through all your outdoor adventures in vibrant color. Magellan Portable GPS Receiver SporTrak Color - 980616-20 provides superior tracking and accuracy, showing your position to within 3 meters, even in difficult environments such as cities or mountains. Featuring an impressive 10 MB North American or 11 MB European, built-in mapping database, Magellan Portable GPS Receiver SporTrak Color - 980616-20 puts rich color maps at your fingertips. The large, high contrast, full color 240 x 160 pixel display enables you to easily find your location, heading and route. An additional 22 MB for North America or 21 MB for Europe of memory enables you to expand your mapping capabilities by uploading detailed maps from optional Magellan MapSend® software products. A clear advantage over the competition, SporTrak Color also offers a built-in barometer, giving you an advance on the weather and an innovative 3-axis compass for superior navigational accuracy no matter how you hold it. Built tough, Magellan Portable GPS Receiver SporTrak Color - 980616-20 is waterproof and rugged enough to go with you on any adventure.


Base Map:   10 MB built-in North American basemap - includes cities, highways, waterways, parks, airports, fog signals, buoys/beacons, lights, radar/radio
Coverage:   North America
Number of Screens:   9
Screens-Types:   User configurable (Map, Compass, Large Data, Position, Road, Speedometer, Strip Compass)
Position Update Rate (per second):   1
Time to First Fix: Cold:   <2 Minutes
Time to First Fix: Warm:   <1 Minute or 60 seconds
Time to First Fix: Hot:   <15 Seconds
Maximum Velocity (mph/km/h):   951(mph)/1530.5(km/h)
Unit Height (inches/cm):   5.6in/14.2cm
Unit Width (inches/cm):   2.2in/5.6cm
Unit Depth (inches/cm):   1.2in/3.05cm
Weight (oz/gm):   6.1oz/172.9gr
Display Height (in/cm):   2.2in/5.6cm
Display Width (in/cm):   1.4in/3.6cm
Display Resolution:   1/8 VGA (240 x 160 pixels)
Display Resolution Color:   Color
Antenna:   Quadrifilar helix
Backlit Display:   Yes
Backlit Keypad:   Yes
Construction:   Rubber Armored Impact Resistant Plastic
Horizontal Accuracy (meters):   <7
Horizontal Accuracy (%RMS):   95% 2D RMS
Horizontal Accuracy -RMS w/ WAAS or EGNOS (meters):   <3
Horizontal Accuracy (%RMS/WAAS or EGNOS ):   95% 2D RMS w/WAAS
Vertical Accuracy (meters RMS):   10
Velocity (knots RMS):   0.1
Plotter Range Minimum (mi/km):   .01mi/0.035km
Plotter Range Maximum (mi/km):   1,700mi/2,700km
Battery Type:   AA
Battery Quantity:   2
Battery Life (hours):   14
Receiver (parallel channels WAAS/EGNOS enabled):   12
Receiver WAAS/EGNOS Enabled:   Yes
Uploadable Memory Form Factor:   Built-in
Uploadable Memory Limit (megabytes):   22 MB
User Data Backup:   Indefinite - Stored in non-volatile Flash Memory
Waterproof (IEC-529 IPX7 Standard):   Yes
Buoyancy:   Floats
Emissions Certification - Immunity (EN 55022 Class B):   Yes
Emissions Certification - Susceptibility (EN 50082-1):   Yes
Operating Temp Min (F/C):   14F/-10C
Operating Temp Max (F/C):   140F/60C
Operating Altitude Max (ft/m):   60,000ft/18,600m
Waypoints:   500
Routes:   20
Trackpoints:   2000
Grids:   Lat/Lon, UTM, OSGB, MGRS, Finnish, German, Swedish, French, Irish, Swiss, USNG, User Grid
Datums:   75
User-defined Datums:   1
Data Input:   Yes
Data Input (RTC M104 Standard):   Yes
Data Output (NMEA 0183 V1.5 Standard):   Yes
Data Output (NMEA 0183 V2.1 Standard):   Yes
DGPS Ready:   Yes
Languages:   English, French, German, Swedish, Finnish, Spanish, Italian, Portuguese, Dutch, Norwegian
Package Contents:   PC Cable, User Manual (English & French) or User Manual on CD-ROM (9 Languages), 2 AA Batteries, Wrist Strap


  • Magellan Portable GPS Receiver SporTrak Color - 980616-20
  • Full Color - See where you are and where you're going in vivid color on a large 240 x 160 pixel, high contrast, full-color display. Color enables you to easily see your location and route, and to easily differentiate between roads, interstates, parks, waterways, airports and other Points of Interest at a glance.
  • Barometer - Like carrying your own little weather station, there's no need to worry about what might be rolling in.
  • 3-Axis Compass - A clear advantage over the competition, SporTrak Color offers an innovative 3-axis compass which orients no matter how it's held, providing added confidence. You don't need to hold the unit level like a compass or a 2-axis electronic compass (found in many GPS devices), to get an accurate reading. Hold it naturally.
  • Accurate - The SporTrak Color uses WAAS (Wide Area Augmentation System) and the European Geostationary Navigation Overlay System (EGNOS) to provide the maximum GPS accuracy and reliability available. Tracking up to 12 satellites to locate your position to within 3 meters, you can rest assured that with the SporTrak Color, you will know where you are.
  • Easy to use - An intuitive interface and keypad provide direct access to key features, putting the power of GPS at your fingertips.
  • Built-in mapping of North America or Europe and expandability - Start navigating right away with the impressive, 10 MB, built-in mapping database of North America or 11 MB for Europe, including highways, major roads, parks, waterways, airports, cities and marine navigation aids, such as buoys, beacons, lights and more. Easily expand your mapping capability by downloading detailed maps from optional Magellan MapSend software products.
  • Full Featured Navigation - Nine customizable graphic navigation screens include a map, compass and speedometer with text readouts of heading, bearing, speed, direction, ETA, and more. Choose from 12 built-in coordinate systems and 76 datums including Latitude/Longitude, Universal Transverse Mercator, and Military Grid Reference System.
  • Store routes and track-points - Store up to 20 routes, 500 waypoints and 2,000 track-points to easily find your way back again.
  • Save Track-to-Route - The unique, Save Track-to-Route feature allows you to convert complicated track files into easy to follow routes. Save hundreds of routes by transferring them to a PC using optional Magellan MapSend software.
  • Sun/Moon positions - SporTrak Color shows you when the sun will rise and set, as well as the phase of the moon, for any date and location in the world.
  • Fish and game calculator - Want to know when the fish are likely to be biting in your little corner of the world? The Magellan SporTrak Color can tell you.
  • Satellite status - Monitor the GPS satellites in view and get information about their status.
  • Built to perform on the most challenging and rigorous adventure.
  • Large backlit full-color display - Easily view all the GPS information you need in full color to make your adventure fun and safe, even at night.
  • Compact and lightweight - At a mere 6.8 oz/192.8 grams the attractive SporTrak Color is compact and lightweight enough to slip into your pocket and go with you no matter where your adventure takes you.
  • Advanced power management - 2 AA batteries provide up to 14 hours of continuous use.
  • Rugged construction - Rubber armored, impact resistant plastic allows you to confidently take SporTrak Color on that next great adventure.
  • Waterproof - SporTrak Color is sealed (to IEC-529 IPX7 specifications) - and it floats!
  • Built-in help database - The SporTrak Color is intuitive and easy-to-use, yet all the major functions are described in step-by-step instructions built into the unit.
  • Multiple language support - If you speak English, French, German, Swedish, Finnish, Spanish, Italian, Portuguese, Norwegian or Dutch, so does the Magellan SporTrak Color.
  • Warranty - We pride ourselves on building rugged and reliable navigation products that you can depend on, backed by a full one-year warranty in North America (2 years in Europe).
