Product No Longer Available

Unfortunately Manfrotto 516 Head, 3182 Tripod with 75 mm half-bowl, 3282 Strap and MBAG120P Bag is no longer carried by OpticsPlanet. You can also explore other items in the Tripod Accessories, Tripods categories yourself to try and find the perfect replacement for you!

This model of Manfrotto Tripods is discontinued and no longer available. Please choose from our wide selection of Celestron Tripods, Meade Tripods, Zhumell Tripods, and other Tripods on our site.

Manfrotto 516 Head, 3182 Tripod with 75 mm half-bowl, 3282 Strap and MBAG120P Bag Product Info

Manfrotto Video Tripod 75 mm Bowl 1-Stage designed with tandem upper legs and single lower legs with variable angle adjustment and twin spiked feet. Thisimage Tripod by Manfrotto is supplied with a 75 mm half bowl attachment. Manfrotto Tripod top spider has a two steps (18° -28°) leg angle positioning system. Legs can be adjusted within a 180° arc to other angle by using a mid level spreader 531SPRB and 530SPRB combined with a set of spike foot shoes 565 in case of unleveled ground or by using a floor spreader code 165MV. Leg locks by a quick lever and stainless steel fittings make this product extremely versatile and easy to use. This Manfrotto Tripod is specifically designed for the latest DV camcorders used by documentary and industrial videographers.

The Manfrotto 516 head is very compact and light but can support cameras up to 10 kg. The Manfrotto Tripod's Head is a cost effective high performance head equipped with fluid cartridges that provide continuous adjustable drag control. This system gives quite a wide range of friction control down to "zero drag" and operates on both pan and tilt axis. Other important features of the head are: separate tilt and pan locking mechanism; a fixed counter balance spring of 7,5 kg load capacity at a center of gravity of 125mm; two telescopic pan handles; a bubble level. The head by Manfrotto has been designed so it can be mounted on a fl at base tripod with a 3/8" female thread attachment or by attaching the ART 500BALL to the head base, allowing it to fit a 100mm bowl.

Manfrotto Tripod Bag Padded 47.2" (120 cm) is the largest bag in the range. The MBAG 120P Bag by Manfrotto is padded to protect your equipment and has the following features: Asymmetric tapered shape allows you to store the tripod with the head attached. Tripod legs fit comfortably in the narrower end (diameter 20cm) and extra space is allowed for the larger volume of the head at the wider end (diameter 23cm). Zip extends down the length of the bag, but also fully opens the top end of the bag. Thermoform padding holds the tripod in place in the bag and protects it, especially the head, during transport. Inner pocket holds accessories (such as video head pan bars). Innovative design and style; ballistic nylon, zips and other materials used are of top quality. This Carrying Bag by Manfrotto can be hand-carried horizontally by the side handle, vertically by the end handle (also useful for storage), or shoulder-carried using the included strap. Manfrotto Strap For 3282 Series Tripod Bags fit to spring hooks of Manfrotto 3282 series tripod bags.

We offer complete line of Manfrotto Tripods. For our complete selection of products by Manfrotto on sale please visit our Manfrotto page. For more Tripods please visit our Tripods store section.

Specifications for Manfrotto Black 75 mm Bowl 1-Stage Video Tripod With 75 mm Half Ball:

Manfrotto Black 75 mm Bowl 1-Stage Video Tripod With 75 mm Half Ball
center column: no center column
closed length: 36.61 in
color: black color
head bowl: 75mm
leg angles: from 0° to 90° (2 steps at 18° and 28°)
leg cross section: round
leg sections: 3 number
legs tube diameter: 19. 25mm
load capacity: 44.09 lbs
material: aluminum
maximum height: 59.45 in
minimum height: 33.07 in
suggested dolly: 114MV - 181B
suggested spreader: 350SPRB. 530SPRB
suggested spreader 2: 165MV
weight: 7.94 lbs
Manfrotto Pro Fluid Video Head With Rapid Connect Plate 357PLV
additional pan handle: 519LV
attaches by.: 1/4" and 3/8" screws attachment type
attachment: 3/8" female thread attachment type
balance control: one fix spring for 7.5kg camera weight
bubble spirit level (no.): 1 number
color: black color
front tilt: -60° / +90° tilt range
independent pan lock: yes
independent tilt lock: yes
load capacity: 22.05 lbs
material: aluminum
maximum working temperature: -20
minimum working temperature: 60
pan bar positions: 2 number
pan bars included (no.): 2 number
pan drag: continuously adjustable from 0 to max level
panoramic rotation: 360°
plate type: 357PLV
quick release: yes
secondary safety system: yes
sliding travel of plate: 3.15 in
tilt drag: continuously adjustable from 0 to max level
weight: 4.41 lbs
working height: 4.92 in
Manfrotto Tripod Bag Padded 47.2in (120cm)
base diameter: 7.87 in
color: black color
diameter: 230
length: 47.24 in
material: ballistic nylon
weight: 3.31 lbs

Features of Manfrotto Tripod Padded 47.2in (120 cm) Bag:

  • Asymmetric tapered shape allows you to store the tripod with the head attached.
  • Tripod legs fit comfortably in the narrower end (diameter 20cm) and extra space is allowed for the larger volume of the head at the wider end (diameter 23cm).
  • Zip extends down the length of the bag, but also fully opens the top end of the bag.
  • Thermoform padding holds the tripod in place in the bag and protects it, especially the head, during transport.
  • Inner pocket holds accessories (such as video head pan bars).
  • Innovative design and style; ballistic nylon, zips and other materials used are of top quality.
  • Can be hand-carried horizontally by the side handle, vertically by the end handle (also useful for storage), or shoulder-carried using the included strap.

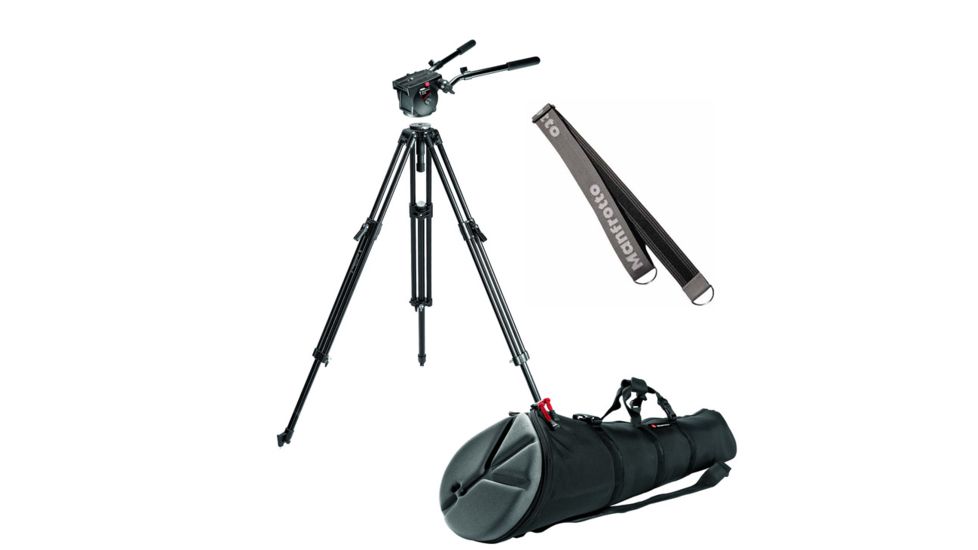

Package Contents:

  • Manfrotto Black 75 mm Bowl 1-Stage Video Tripod with 75mm Half Ball
  • Manfrotto Pro Fluid Video Head With Rapid Connect Plate 357PLV
  • Manfrotto Strap For 3282 Series Tripod Bags
  • Manfrotto Tripod Bag Padded 47.2" (120 cm)

Manfrotto 516 Head, 3182 Tripod with 75 mm half-bowl, 3282 Strap and MBAG120P Bag Related Products

Manfrotto 516 Head, 3182 Tripod with 75 mm half-bowl, 3282 Strap and MBAG120P Bag Unorderable Models

Manfrotto 516 Head, 3182 Tripod, 3282Strap, Mbag120P Bag, MPN: 516-3182, UPC: 719821192510, Code: BN-TR-516-3182

Manfrotto 516 Head, 3182 Tripod with 75 mm half-bowl, 3282 Strap and MBAG120P Bag Comments
