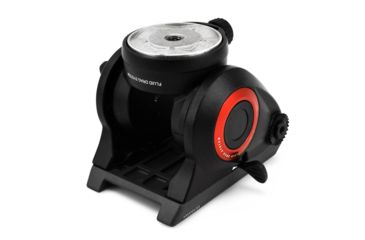

Manfrotto Pro Fluid Head, Flat Base MVH500AH
$169.88 $200.00 Save 15%
Code: BN-EA-MVH500AH
MPN: MVH500AH
UPC: 719821346968

Manfrotto MVH500AH Pro Fluid Tripod Head w/ Flat Base Product Info

The Manfrotto MVH500AH Fluid Lightweight Video Head w/ Flat Base MVH500AH has been designed to be the perfect lightweight video head for all of your individual needs. This Tripod Head from Manfrotto is a lightweightimage head with a wider platform for HDSLR bodies which has a sliding plate which travels to balance the latest interchangeable lens cameras. The entry-level 500 ensures smooth shots and fine control with up to 5kg (11lbs) of equipment. It's the most compact head in our successful Bridging Technology range and it replaces the Manfrotto 701HDV video head. Beautifully smooth shots: the 500 has professional fluid cartridges on both pan and tilt axes to ensure that every camera movement is smooth, controlled and precise. Faster, easier and safer to use: the side lock system allows the camera and sliding QR plate to click quickly into the head from above, instead of needing to be aligned and slid in from the back. No secondary safety lock is necessary. The side lock system on the Manfrotto MVH500AH Fluid Tripod Head also makes it quicker and simpler to lift the camera out of the head from above. The 500 has a pre-set counterbalance of 2.4kg (5.3 lbs), but is able to support equipment of up to 5kg (11 lbs). The 500 has one Easy Link 3/8" connector to allow an external monitor or other accessory equipment to be fitted. The Manfrotto MVH500AH Head with Flat Base Tripod Mount for attachment to a hybrid photo/video tripod, a traditional photo tripod, slider, a monopod or other supports.

Manfrotto MVH500AH: Pro Fluid Head, Flat Base

Specifications for Manfrotto MVH500AH Tripod Head:

Attaches By: 1/4" and 3/8" attachment type
Attachment: 3/8" screw attachment type
Bubble Spirit Level (No.): 1 number
Color: black color
Independent Pan Lock: yes
Independent Tilt Lock: yes
Lateral Tilt: -70deg; / +90° tilt range
Material: aluminum
Maximum Working Temperature: 140 °F
Minimum Working Temperature: -4 °F
Pan Bar Positions: 2 number
Pan Bars Included (No.): 1 number
Pan Drag: fluid cartridge with fixed drag
Panoramic Rotation: 360 degrees
Plate Type: 500PLONG
Quick Release: yes
Secondary Safety System: yes
Spring Loaded Counter Balance: yes
Tilt Drag: fluid cartridge with fixed drag
Weight: 2.05 lbs
Working Height: 3.74 in

Package Contents:

  • Manfrotto MVH500AH Fluid Lightweight Video Head w/ Flat Base MVH500AH
