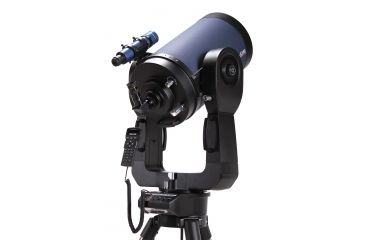

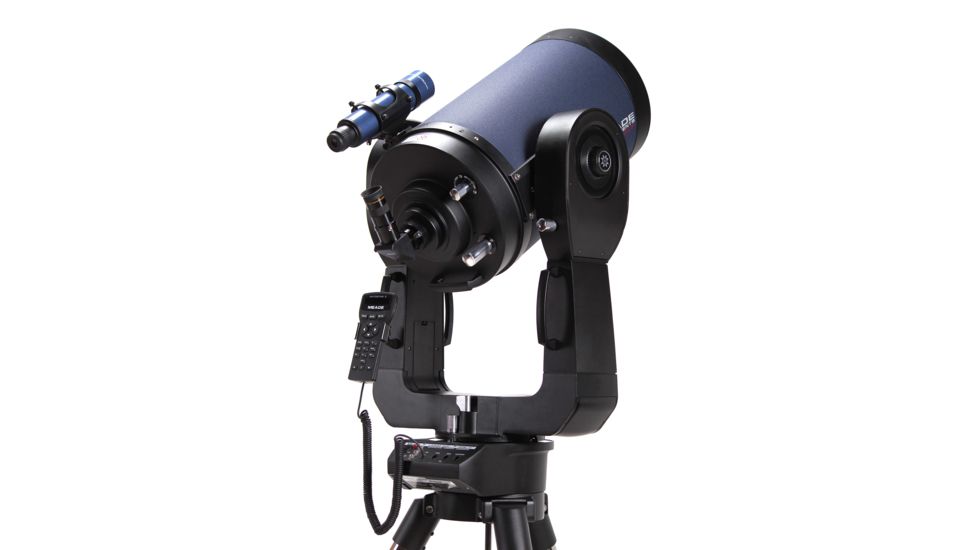

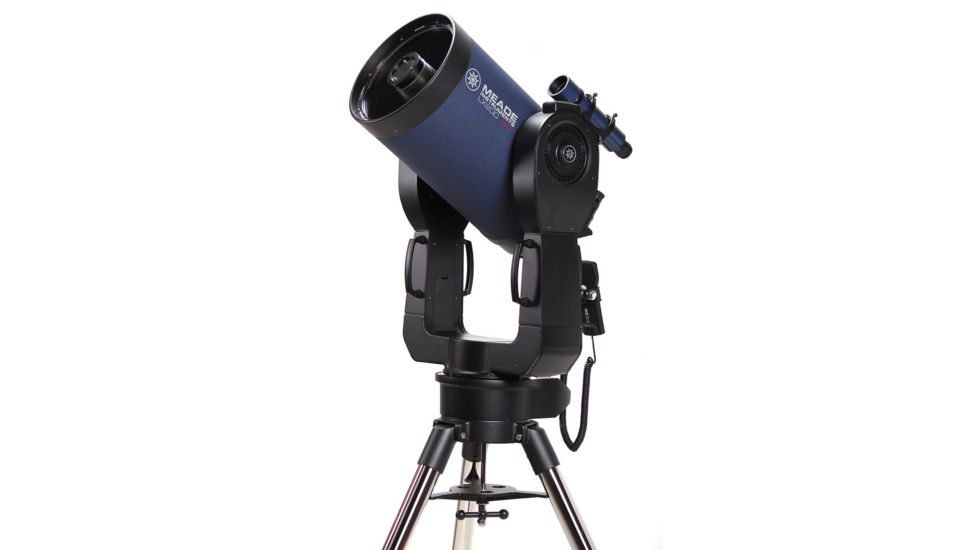

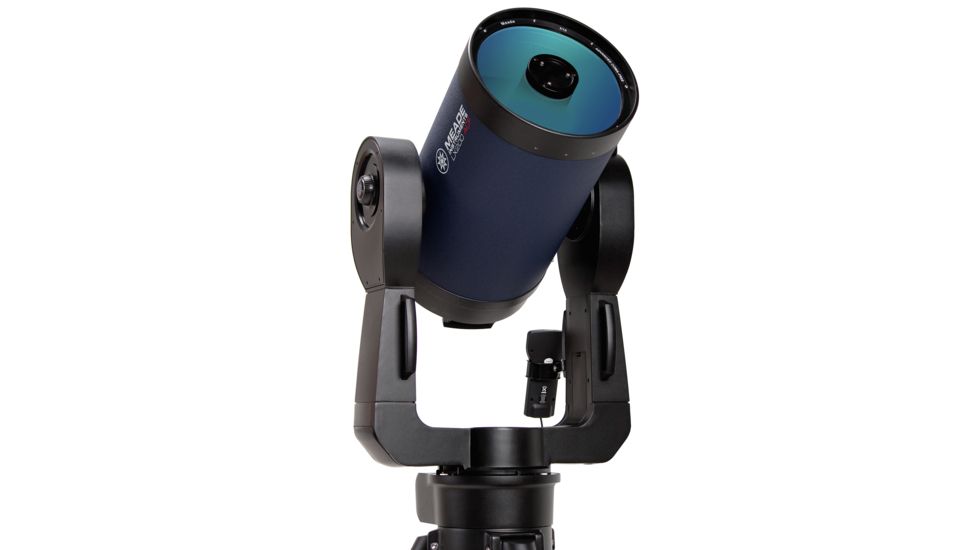

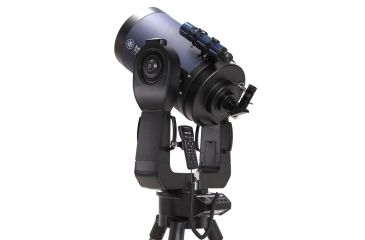

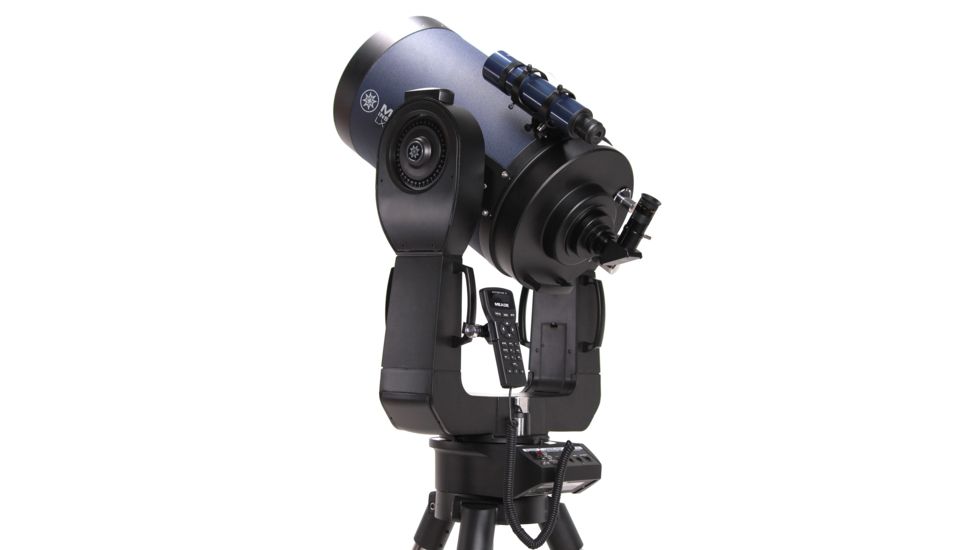

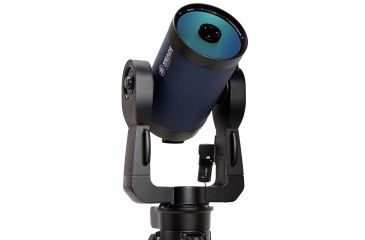

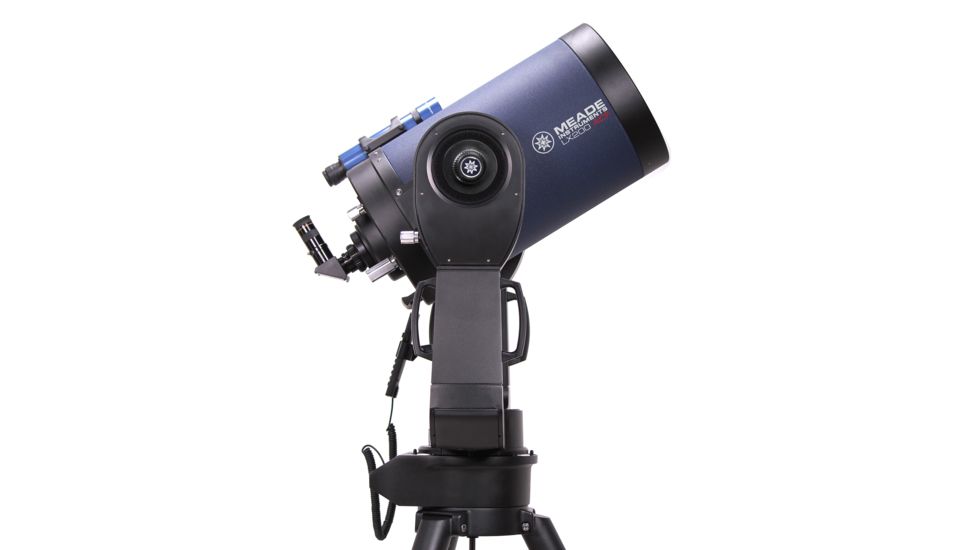

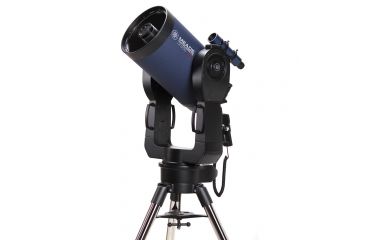

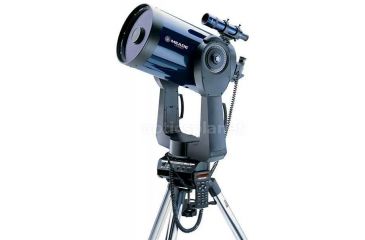

Meade 10in LX200ACF UHTC Advanced Coma Free Computerized GPS Telescope w/Autostar II, AutoAlign, Tripod
$3,499.00 $3,690.00 Save $191.00
Code: ME-TS-LX200ACF-10IN-1010-60-03
MPN: 1010-60-03
UPC: 709942500349
Click to select this item for your bundle offer!
Buy Together & Save Even More!

A great way to save even more money is to purchase complementary products at the same time that you shop for what you want!

In many cases you'll be offered two additional items that you can add to your order and save, but feel free to only pick one if you want - you'll still save

You Save $197.96
Shipping Limitations Shipping Limitations

Buy now, pay later! Now when you check out at OpticsPlanet with PayPal, you can apply for PayPal's 6 month no payments, no interest option through PayPal Credit. PayPal Credit available in USA only and orders must be over $99 to qualify. Click here to learn more.

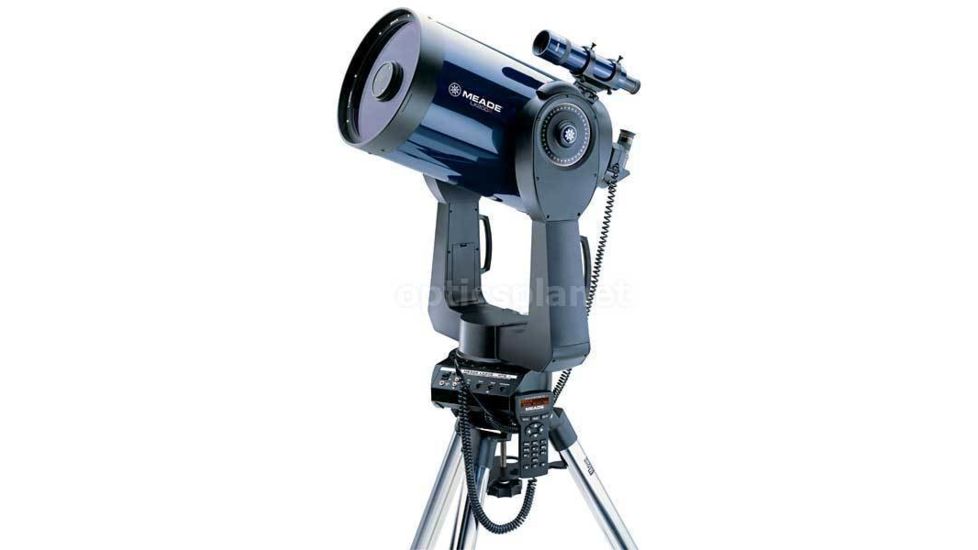

Meade 10" LX200ACF UHTC Advanced Coma Free Computerized GPS Telescopes w/ Meade Autostar II, AutoAlign, Tripod Product Info

Meade 10" LX200 ACF UHTC Advanced Coma Free GoTo GPS Telescope is a Hubble for your Backyard! Meade LX200 ACF Telescopes brings Advanced Coma Free optics within reach of aspiring astronomers everywhere. Now with Meade 10" LX200ACF Computerized Telescope you can own what the professionals own. Meade LX200-ACF Telescopes Advanced Coma-Free GOTO Telescopes includes all the field-proven features of the Meade LX200 and Meade LX200GPS Telescopes, including GPS, LNT, Primary Mirror Lock, Zero Image-Shift Microfocuser, Oversized Primary Mirror, SmartDrive, Smart Mount, Meade AutoAlign, Meade AutoStar II and more. Plus, all Meade Telescopes of Meade LX 200 ACF Series come with observatory-class optics crafted in the USA, Irvine, California, and Meade Series 5000 26mm 5-Element Plossl Eyepiece. The new Meade LX200ACF Advanced Coma Free Go To GPS Telescopes are the biggest news in astronomy since, well, Meade LX200.

For more information on Meade LX200 ACF Advanced Coma Free Telescopes see the Meade LX200ACF Telescopes page.

Meade 10in LX200ACF UHTC Advanced Coma Free Computerized GPS Telescopes w/ Meade Autostar II, Meade AutoAlign, Tripod via Motor Freight

Specifications for Meade LX200ACF 10" Advanced Coma-Free GPS Telescope with Meade UHTC 10106002:

Optical Design: Advanced Coma Free
Clear Aperture: 254mm (10 ")
Focal Length Focal Ratio: 2500mm f/10(10")
Maximum Practical Visual Power: 650X (10")
Telescope Mounting: heavy-duty fork type; double-tine
Primary Mirror Lock: included (progressive tension) All models
Zero Image-Shift Micro Focuser: included (4-speed) All models
Eyepiece: Series 4000 Plossl
Viewfinder: 8 x 50mm
GPS, True-level and North sensors: included (16-channel GPS receiver) All models
Pointing Precision, High Precision Mode: 1-arc min. All models
Meade Autostar II Hand Controller: included (147,541 object database) All models
Batteries (user-supplied): 8 x C-cells
Battery Life (approx.): 21 hrs
Slew Speeds: RA and Dec - 0.01x to1.0x sidereal, variable in0.01x increments; 2x, 8x, 16x, 64x, 128x sidereal; 1°/sec. to 8°/sec., variable in 0.1° increments All models
Tracking Rates: sidereal, lunar, or custom-selected from 2000 incremental rates All models
Primary, Secondary Mirrors: Pyrex glass
Correcting Plate/Lens: water white glass
Total Net Telescope Weight: 90 lbs.
Field Tripod Height all models: 30" to 44" variable
Meade UHTC Coatings: Included
UPC Code - UHTC: 709942500332

Features of Meade LX200-ACF Telescopes with UHTC:

  • Advanced Coma-Free Optics: Meade Advanced Comafree design is a huge jump over the traditional Schmidt-Cassegrain as far as sharpness of image, flatness of field, and color. Meade Advanced Coma Free Telescopes delivers the same sharp, flat, comafree field from edge to edge as a typical Ritchey-Chretien. The use of the corrector plate in the Meade ACF system creates a closed and protected optical tube, reduces astigmatism and eliminates the diffraction spikes inherent in the traditional RC design. ACF optical system by Meade perform at the same high level as comparable RC systems costing thousands more.
  • Meade UHTC Ultra-High Transmission Coatings: (included with model 1010-60-02) increases total light transmission and image brightness by nearly 20% over Meade standard coatings. Objects such as stars, galaxies and nebulae will appear significantly brighter. For more information on Meade UHTC, please, click here.
  • Zero Image Shift Microfocuser: allows you to obtain precise image focus with no image movement.
  • Primary Mirror Lock: locks the mirror in place during long exposure astro photography.
  • Oversize Primary Mirror: diameters are greater than their listed aperture (e.g., the diameter of the Meade 8" LX200 ACF is actually 8.25"). This additional 1/4" yields a wide, fully illuminated field-of-view.
  • Meade Smart Mount: constantly refines pointing accuracy each time an object is centered and updated. Compatible with both equatorial and altazimuth mounts.
  • Meade Smart Drive: provides permanent periodic error correction (PPEC) on both axes by learning and averaging error over the course of one or more training periods, thereby minimizing guiding corrections during long-exposure photographs. PPEC is available on both axes and functions in both polar and altazimuth modes.
  • Sony GPS Receiver Sensor: automatically inputs precise time, date, and geographical location to help quickly and precisely align a LX200-ACF Meade Telescope.
  • Meade AutoAlign: Telescopes with Meade Auto Align come pre-aligned. They are smart scopes that know the night sky right out of the box. Meade AutoAlign picks two fail-proof alignment stars for you and places them right in your view-finder. Just center them to fine tune your alignment and the wonders of the universe are at your fingertips.
  • Meade AutoStar II Hand Controller: features "Hot Keys" for quick access to a 145,000 celestial object database. Meade Auto Star II can be updated with the latest software upgrades, guided tours and timely objects like comets free at

Package Contents:

  • Meade 10 inch LX200 ACF UHTC Computerized Telescope:
    • Meade LX 200 ACF 10" Advanced Coma-Free OTA with Meade UHTC Coatings
    • Heavy Duty Double-Tine Fork Mount
    • AutoStar II GO TO Computer Controller w/ LNT and Smart Mount Technology
    • 16-channel GPS Automatic Alignment System
    • Metal Field Tripod (30"-44")
    • AutoStar Suite Software
    • Meade Series 4000 Plossl eyepiece
    • 1.25" Star Diagonal
    • 8 x 50mm Finder Scope
    • 7-port control panel (w/ two RS-232 serial interface ports)

Meade 10" LX200ACF UHTC Advanced Coma Free Computerized GPS Telescopes w/ Meade Autostar II, AutoAlign, Tripod Related Products

Meade 10" LX200ACF UHTC Advanced Coma Free Computerized GPS Telescopes w/ Meade Autostar II, AutoAlign, Tripod Comments

Customer Reviews
Helpful Positive Review Good Aperature, Precision suitable for astrophotography by Legacy Reviewer, February 24, 2013
This is a very nice scope. Meade is well know for it's optics and perfomance. On wedge guide can get good PE of around 1-2 arc second with PEC on and Autoguide. It have a large mirror, great light bucket for deep space object. For planets not bad eit...
Helpful Negative Review 10" LX-200 not meeting expectations by Legacy Reviewer, May 13, 2012
The telescope seems to be poorly made, the threads for the wedge are messed up, the tripod has a large central hump that prevents good mounting, and it doesn't self align like it is supposed to. When I contacted Meade they give me the runaround like...
4/5 found this helpful
Most Recent Review Heavier than you can imagine by Legacy Reviewer, February 15, 2014
After resolving my earlier quality issues with Meade, I'm finding that it has great views and optics; however, the telescope is just to heavy to use single handedly. At 90 lbs, it is way too heavy for a normal person to lift and transport. This is ...
Most Recent Review Meade 10 inch LX2000acf by Legacy Reviewer, October 12, 2010
First of all, let me admit that I am a dimwit and didn't know a lot of common star names when I first got the scope. I was always a planet guy and never worried much about constellations other than Orion and Ursa Major. When this thing goes auto setu...
17/17 found this helpful
