Product No Longer Available

Unfortunately Meade LXD75 SN-6AT 6" Schmidt-Newtonian Telescope - 06057501 is no longer carried by OpticsPlanet. You can also explore other items in the Telescopes category yourself to try and find the perfect replacement for you!

This model of Meade Telescopes has been discontinued. However, Meade LXD75 SN-6AT UHTC Schmidt-Newtonian Telescope 0605-75-02 is available. Also check other Meade LXD 75 Telescopes and a huge selection of telescopes by different brands such as Bushnell, Celestron, Vixen, TeleVue, Zhumell and more.

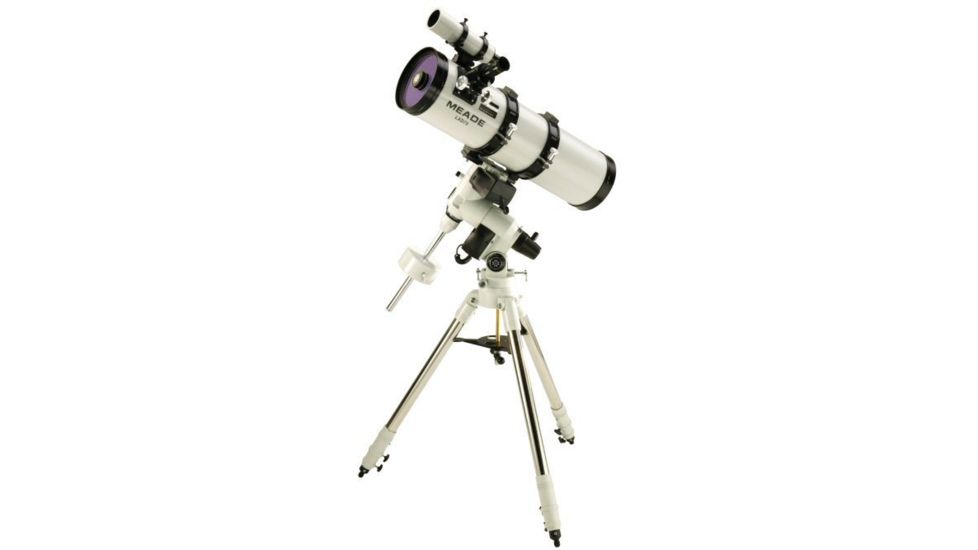

Meade LXD75 SN-6AT 6" Schmidt-Newtonian Telescope - 06057501 Product Info

The new Meade LXD75 SN-6AT 6" Schmidt-Newtonian Telescope offers a high-performance equatorial mount, heavy-duty, all-metal imagefield tripod and precision drive system. Stable Meade LXD75 German Equatorial Mount is designed for high-performance observing and astrophotography, the LXD75 Series sets a new Meade standard in their price class for sturdiness, precision operation and smoothness of movement. With the LXD75, Meade engineers have created a virtually backlash-free equatorial mount incorporating heavy-duty castings and four high-precision stainless steel ball bearings in both RA and Dec axes. The reliable Meade LXD-75 drive system has enhanced precision alignment of the motor gear assembly for greatly reduced backlash and tracking smoothness.

Specifications for Meade LXD75 SN 6 AT Schmidt-Newtonian Telescope:

Aperture:   6" (152mm)
Focal Ratio:   f/5
Focal Length:   762mm
Corrector Lens:   White Water
Primary Mirror:   Pyrex
Viewfinder:   8 x 50
Hand Controller:   Electronic

Features of Meade LXD 75 SN6AT 6 inch Schmidt-Newtonian Telescope:

  • 2" Focuser: Aluminum rack and pinion focuser allows the user to achieve a precise focus.
  • Eyepiece Holder: Accepts both 1.25" & 2" eyepieces. Allows use of all common telescope accessories and cameras.
  • 8x50 Achromatic Viewfinder: Easily locate and center deep-sky objects.
  • Made in the U.S.A. and Performance Tested: All Meade Schmidt-Newtonian and Schmidt-Cassegrain optics are manufactured at Meade's state-of-the-art facility in Irvine, Calif., then performance tested on an Interferometer.
  • Sturdy Mount with Heavy-Duty Castings: Designed by Meade's engineers and manufactured for high-performance observing and astrophotography.
  • Shaft & Bearing System: The sturdy German Equatorial Mount is accurate and precise. The RA and Dec axes move effortlessly on four high-precision stainless steel ball bearings.
  • High-Precision Worm Gears: Located on both axes for smooth tracking and slewing.
  • High-Precision Pointing (HPP): For even more-precise pointing, use the HPP function. HPP puts objects in the center of the field-of-view, which allows you to confirm deep-sky objects at the faintest limits of the telescope's capability.
  • Periodic Error Correction: Corrects periodic errors on the RA axis over the course of one or more training periods, thereby minimizing guiding corrections during long-exposure photography.
  • 9-Speed Drive Controls: From a rapid slew rate of 4.5°/sec. to 1x sidereal - it's all controlled from the Autostar controller.
  • 3-Star Alignment: Ensures precise alignment while eliminating the need for a complicated optical/mechanical alignment process.
  • Heavy-Duty Tripod: Variable-height field tripod with spreader bar brace provides the stability and vibration damping required for visual observation and astrophotography.
  • Illuminated Polar Alignment Viewfinder: For quick, precise polar alignment.
  • Power Supply: Powered by 8 D-size batteries. Can also be powered by optional car cigarette lighter or AC wall adapter.

Package Contents:

  • Meade LXD75 SN-6AT 6" Schmidt-Newtonian Telescope

Meade LXD75 SN-6AT 6" Schmidt-Newtonian Telescope - 06057501 Related Products

Meade LXD75 SN-6AT 6" Schmidt-Newtonian Telescope - 06057501 Unorderable Models

Meade LXD75 SN-6AT 6" Schmidt-Newtonian Telescope - 06057501, MPN: 0605-75-01, UPC: 709942380248, Code: ME-TS-LXD75-0605-75-01
