Product No Longer Available

Unfortunately Meade 8" LX200GPS SMT Telescope is no longer carried by OpticsPlanet. You can also explore other items in the Telescopes category yourself to try and find the perfect replacement for you!

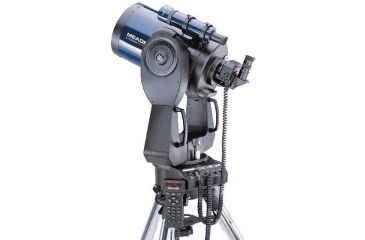

Meade 8" LX200GPS SMT Telescope Product Info

Meade 8" LX200GPS SMT Telescope build on the legendary reputation of their predecessor LX200 imagetelescopes and the result of a two-year design effort at the Meade Irvine facility, Meade 8" LX200 GPS-SMT Telescope take previous telescope technology to a level heretofore unimagined. Announced in September, 2001, few telescopes in the thirty-year history of Meade Instruments have aroused such intense interest, or been so quickly accepted, among both beginning and experienced amateur astronomers, but Meade 8" LX200-GPS SMT Telescope did.

Here you can find out more about Ultra-High Transmission Coatings (UHTC)

Specifications for Meade 8" LX200 GPS SMT Telescope:

Optical Design:   Schmidt-Cassegrain
Clear Aperture:   203mm
Primary Mirror Diameter:   209.6mm (8.25")
Focal Length, Focal Ratio:   2000mm f/10
Near Focus (approx.):   25 ft.
Resolving Power (arc secs.):   0.56
Optical Coatings:   MgF2 on correcting plate (2-sides); standard aluminum on primary & secondary mirrors
Ultra-High Transmission Coatings:   optional at time of purchase
Limiting Visual Magnitude (approx.):  14.0
Limiting Photographic Magnitude (approx.):   16.5
Image Scale (degs./inch):   0.72 (8" f/10)
Maximum Practical Visual Power:   600X
35mm Angular Film Coverage:   0.68° x 0.97°
Optical Tube Dimensions (dia. x length):   9.1" x 16.75"
Secondary Mirror Obstruction (dia.; %):   3.0"-14.1%
Telescope Mounting:   heavy-duty fork type; double tine
Setting Circle Diameters:   Dec: 5"; RA: 8.75"
RA Motor Drive Systems:   185-speed, microprocessor-controlled, 12v DC servo motor; 5.75" LX worm gear with Smart Drive software
Hemispheres of Operation:   North and South, automatically selected by GPS input or by user override
Declination Control System:   185-speed, microprocessor-controlled, 12v DC servo motor; 5.75" LX worm gear with Smart Drive software
Primary Mirror Lock:   included (progressive tension)
GPS Alignment:   included (16-channel GPS receiver, electronic sensors for true-level and North, with magnetic declination compensation)
GO TO Pointing Precision (approx.):   2-arc mins.
Pointing Precision, High-Precision Mode:   1-arc min.
Slow-Motion Controls:   manual and electric, RA and Dec.
Bearings:   Dec: 3 x 1.83" dia. ball bearings; RA: 1 x 4" dia. and 1 x 2.25" dia. ball bearings
Autostar Hand Controller:   Atmel 89C451 & PIC16C57 microcontrollers; 2 line x 16 alphanumeric character display; 20-button keypad, red LED backlit
Main Telescope Controller:   distributed intelligence architecture using 8 networked microcontrollers (Motorola 68HC11, Atmel 89C451, 3 x PIC16C62, 2 x PIC16C54, Sony digital signal processor); 3.5-Megabyte flash memory (field reprogrammable), 32K RAM
Batteries (user-supplied):   8 x C-cells
Battery Life (approx.):   20 hrs.
Onboard Celestial Object Database:   147,541 objects
Slew Speeds:   RA and Dec: 0.01x to 1.0x sidereal, variable in 0.01x increments; 2x, 8x, 16x, 64x, 128x sidereal; 1°/sec. to 8°/sec., variable in 0.1° increments
Tracking Rates:   sidereal, lunar, or custom-selected from 2000 incremental rates
Tube Body:   aluminum
Mount Casting:   aluminum
Primary, Secondary Mirror:   Pyrex® glass
Correcting Plate/Lens:   clear float glass
Telescope Dimensions, swung down:   9.25" x 17" x 24.75"
Shipping Carton Dimensions:   31" x 22" x 14"
Total Net Telescope Weight:   73 lbs
Heaviest Sub-Section for Field Assembly:   45 lbs.
Total Shipping Weight (approx.):   94 lbs.
#1220 Field De-rotater:   optional
Equatorial Wedge Latitude Range:   23° to 64°
Field Tripod Height:   30" to 44" variable

Features of Meade 8" LX200 GPS SMT Telescope:

  • High-Precision Pointing (HP) Capability
  • Autostar II Control System: Completely redesigned and updated for the 8" LX200 GPS SMT
  • Built-in 145,000-Object Library Included as Standard Equipment
  • New Heavy-Duty Fork Mounts
