Minox ZA 5 2-10x40 Riflescope ZA5 Rifle Scope has been discontinued by Minox and is no longer available. Our product experts have helped us select these available replacements below. You can also explore other items in the Rifle Scopes category yourself to try and find the perfect replacement for you!

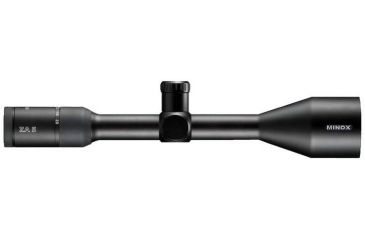

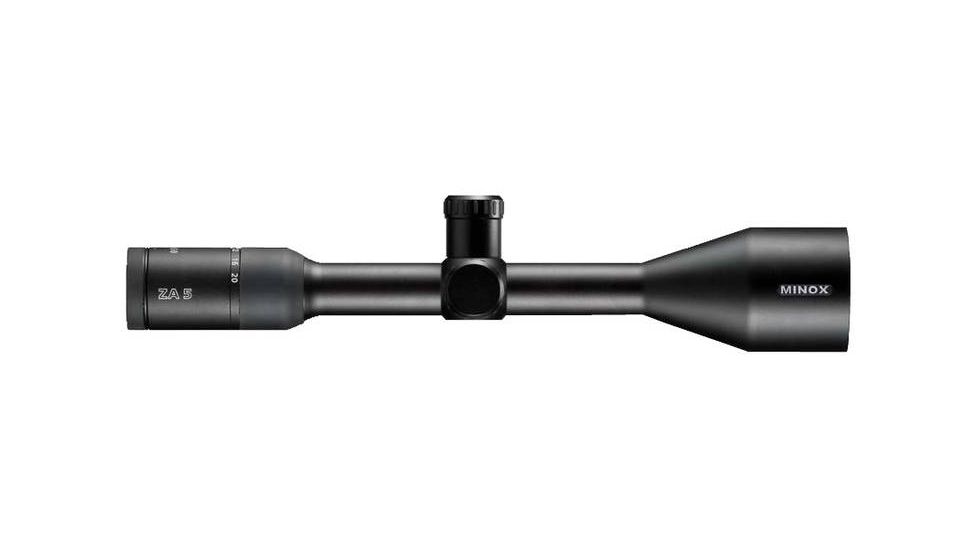

Minox ZA 5 2-10x40 Riflescope ZA5 Rifle Scope Product Info

The Minox ZA 5 2-10x40 Riflescope is designed to meet the practical demands of any hunt, from the low magnification needs of woodland hunters to the higher power requirementsimage of the open plains and high mountains. This ZA5 Riflescope by Minox features a 2x to 10x variable zoom, and a 40 mm objective.

Uncompromising performance with the Minox ZA-5 2-10x 40mm Rifle Scope begins with the glass. These Minox Riflescopes feature lenses from legendary German glass specialist SCHOTT. This lens system has the Minox M* coating that delivers target-popping contrast and “can’t hide” brightness dawn or dusk, rain or shine, ensuring accurate shot placement no matter how challenging the conditions.

Minox ZA5 2-10x40mm Riflescopes are manufactured with maximum care and reliability to meet the sophisticated demands of customers. Traditional German Engineering values such as Quality, Precision and Ruggedness are seen in the development and manufacturing of these Riflescopes. Each Riflescope is crafted from lightweight, incredibly tough aircraft-grade anodized aluminum and features standard one inch mono-tube construction for easy, low-profile mounting. ZA 5 Riflescopes are also waterproof and system purged with inert argon gas to prevent fogging on inner glass surfaces and provide corrosion protection for critical precision mechanisms.

The Minox ZA 5 2-10x40 Rifle Scope is built to operate perfectly in the harshest environments and after enduring the roughest handling, uncontrollable, unexpected things that can happen in the field. Minox provides a Full Coverage Lifetime Warranty protection with every Minox Riflescope. Minox will repair or replace any damaged Minox Rifle Scope with no questions asked. These features make the Minox ZA 5 2-10x40 a scope that is equally at home from woodlots to mountain tops.

Specifications for Minox ZA 5 2-10x40mm Riflescope:

Clear aperture (mm): 40
Parallax setting or adjustment range: 100 yds
Eye relief: +4"
Exit pupil high: 4.0 mm
Exit pupil low: 20.0 mm
Eyepiece - diopter (min): -2
Eyepiece + diopter (min): 1.5
Magnification high power (+/- 5%): 10
Magnification low power (+/- 5%): 2
Field of View Low Power / ft@100 yds: 47.5
Field of View High Power / ft@100 yds: 9.4
Reticle Adjustment/per Click: 1/4" at 100 yards
Windage reticle travel - total: 72 MOA
Elevation reticle travel - total: 72 MOA
Main tube diameter: 1"
Overall length: 12 3/16"
Main tube length: 5 9/16"
Front mounting distance: 2 3/16"
Rear mounting distance: 2 3/16"
Objective bell length: 3"
Eyepiece assembly length: 3 9/16"
Objective diameter: 1 7/8"
Eyepiece diameter: 1 9/16"
Weight: 13.1 oz

Features of Minox ZA5 2-10x 40mm Riflescope:

  • Lenses by legendary German glass specialist SCHOTT AG
  • Minox M* coating - up to 21 different layers applied to the glass surface to greatly improve light transmission, brightness, contrast, detail, and color rendering
  • Windage and elevation knobs, finger adjustable, with positive & precise reticle movements of 1/4 MOA, zero resettable
  • Long four inch plus eye relief
  • Rubber cushioned fast-focus eyepiece
  • Smooth operating soft-touch rubber variable power ring

Package Contents:

  • Minox ZA 5 2-10x40 Riflescope
  • Scopecoat protective field cover

Minox ZA 5 2-10x40 Riflescope ZA5 Rifle Scope Related Products

Minox ZA 5 2-10x40 Riflescope ZA5 Rifle Scope Unorderable Models

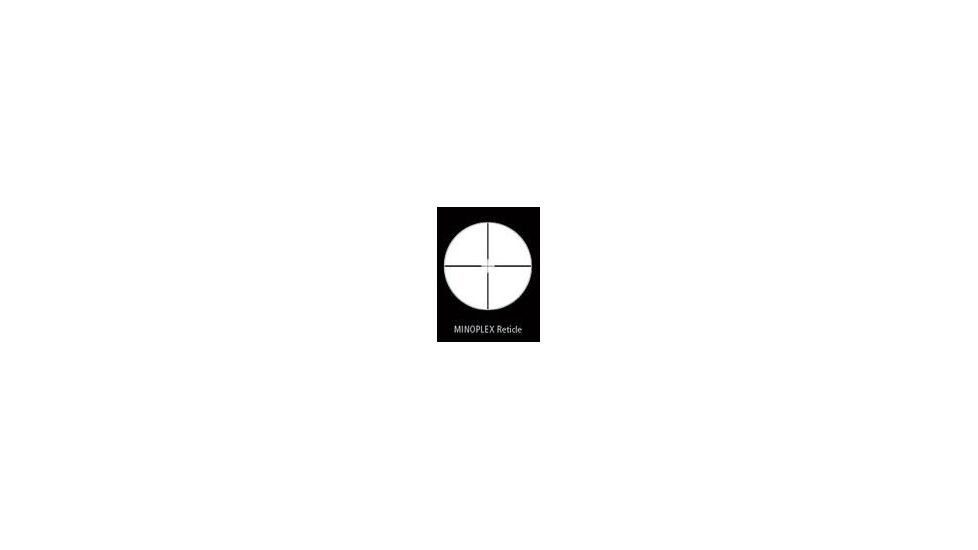

Minox ZA 5 2-10x40 Fully Coated Riflescope, Black w/ MinoPlex Reticle 66010, MPN: 66010, UPC: 4007450660101, Code: MX-RS-ZA5-2-10x40-66010
Minox ZA 5 2-10x40 Fully Coated Riflescope, Black w/German #4 Reticle 66014, MPN: 66014, UPC: 4007450660149, Code: MX-RS-ZA5-2-10x40-66014
Minox ZA 5 2-10x40 Fully Coated Riflescope, Black w/XR-BDC Reticle 66012, MPN: 66012, UPC: 4007450660125, Code: MX-RS-ZA5-2-10x40-66012

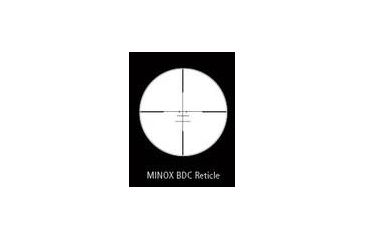

Minox ZA 5 2-10x40 Fully Coated Riflescope, Black w/ Minox BDC Reticle 66011, MPN: 66011, UPC: 4007450660118, Code: MX-RS-ZA5-2-10x40-66011
