Select a Model

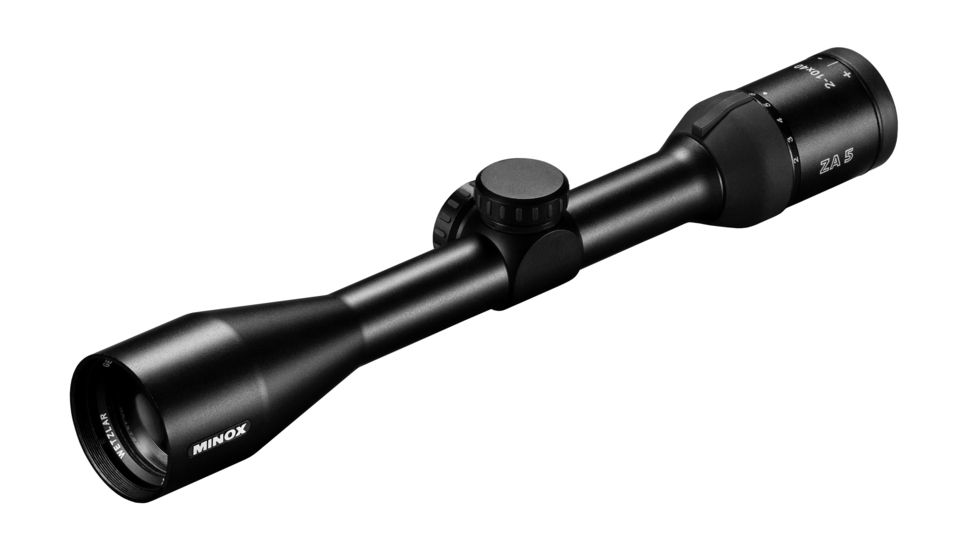

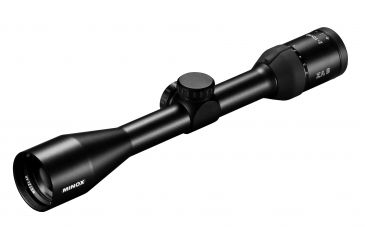

Minox ZA 5 HD 2-10x40 w/ German #4 Reticle, Black 66414
$549.00 $639.00 Save 14%
Model: Minox ZA 5 HD 2-10x40 w/ German #4 Reticle, Black 66414
Code: MX-RS-ZA21040-66414
MPN: 66414
UPC: 4007450664147

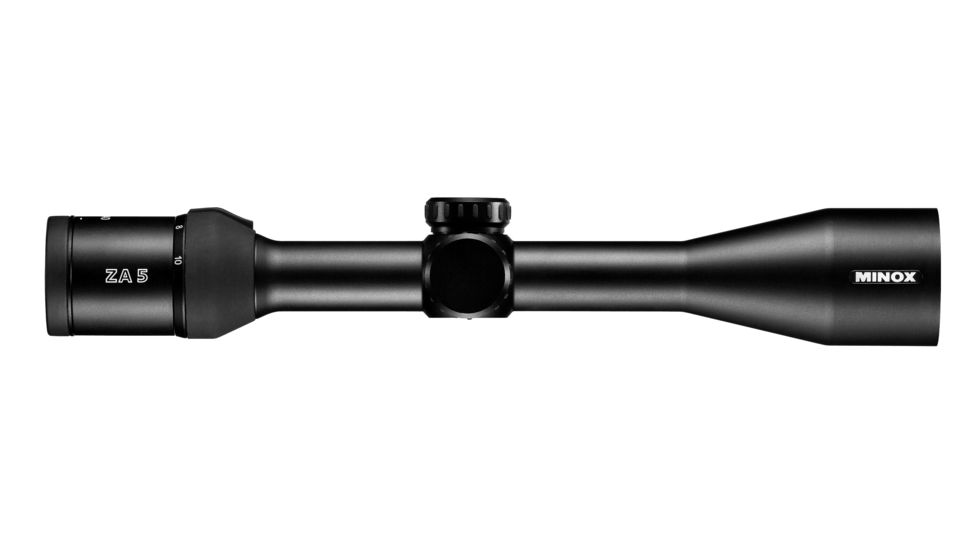

Minox ZA 5 HD 2-10x40 w/ Mino-Plex Reticle, Black 66410
$549.00 $639.00 Save 14%
Model: Minox ZA 5 HD 2-10x40 w/ Mino-Plex Reticle, Black 66410
Code: MX-RS-ZA21040-66410
MPN: 66410
UPC: 4007450664109

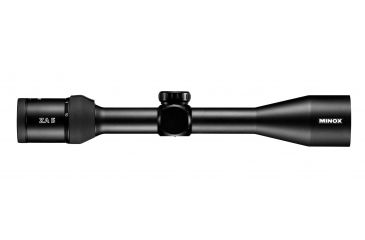

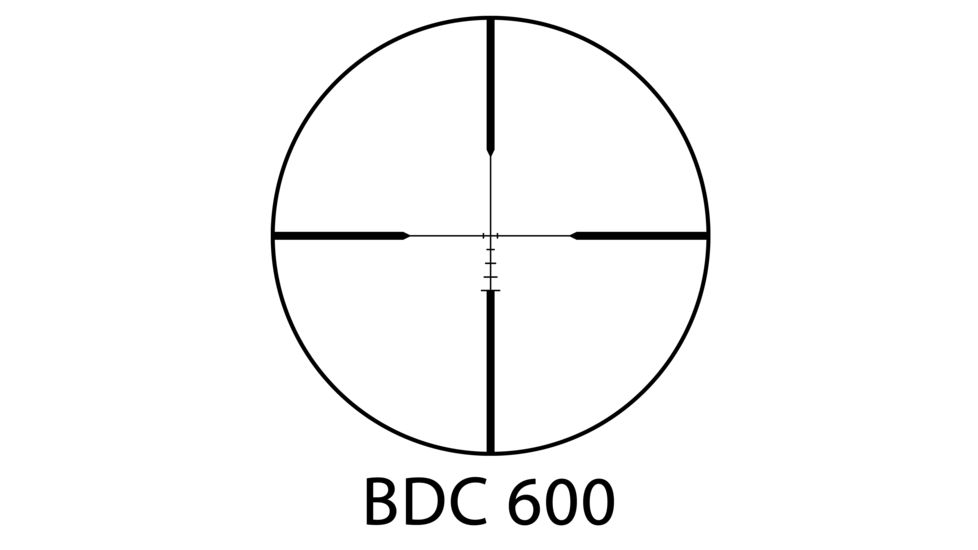

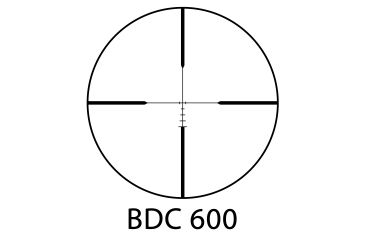

Minox ZA 5 HD 2-10x40 w/ BDC 600 Reticle, Black 66411
$569.00 $659.00 Save 14%
Model: Minox ZA 5 HD 2-10x40 w/ BDC 600 Reticle, Black 66411
Code: MX-RS-ZA21040-66411
MPN: 66411
UPC: 4007450664116
Click to select this item for your bundle offer!
Buy Together & Save Even More!

A great way to save even more money is to purchase complementary products at the same time that you shop for what you want!

In many cases you'll be offered two additional items that you can add to your order and save, but feel free to only pick one if you want - you'll still save

As low as $59699 You Save 15%

Minox ZA 5 HD 2-10x40 Riflescope Product Info

The Minox ZA 5 HD 2-10x40 - 1" tube Riflescope is a waterproof riflescope that lets you take charge of your hunting experience. The universal riflescope for close to medium shooting ranges. Theimage Minox ZA Hunting Riflescope is suitable for flexible use from woodlots to mountain tops. Designed and engineered in Germany and assembled in the USA, the Minox ZA HD Zoom Riflescopes offer a 5x zoom range and new long-range reticles for improved accuracy and peace-of-mind.

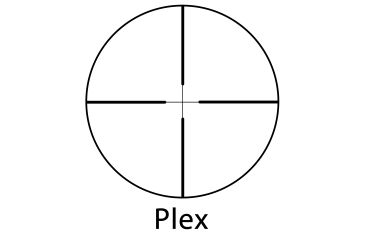

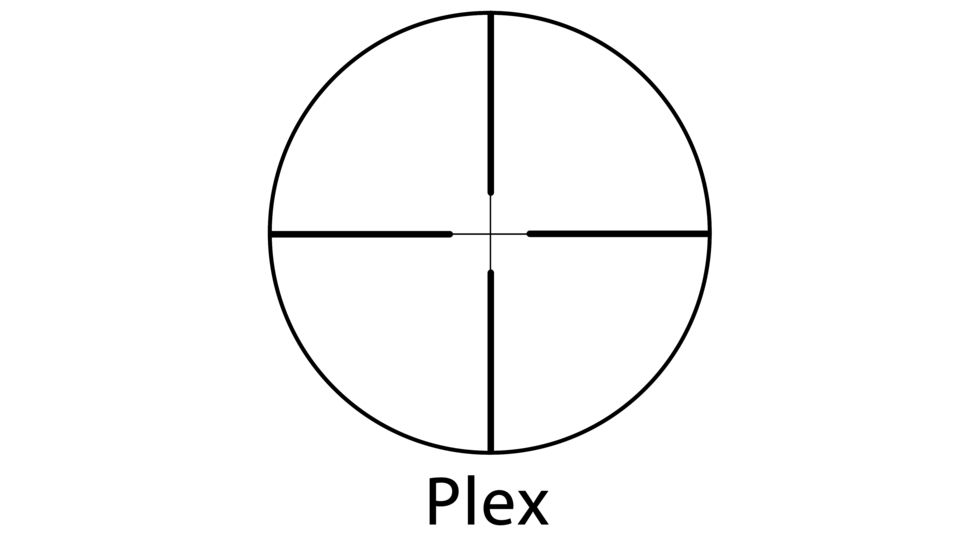

Minox 66410: ZA 5 HD 2-10x40 w/ Mino-Plex Reticle, Black

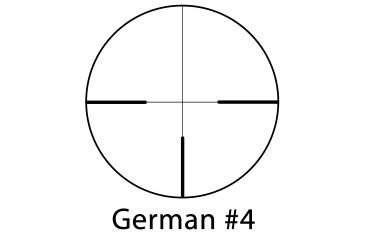

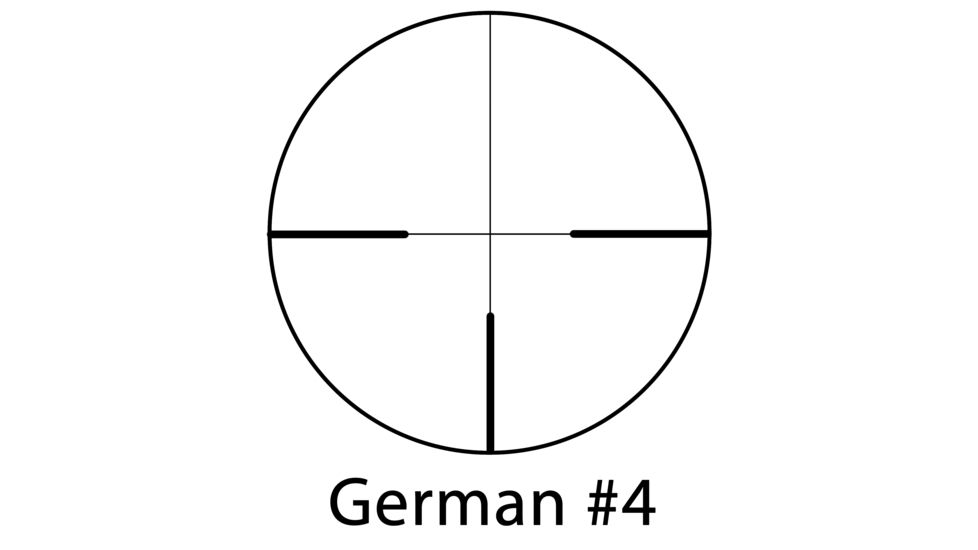

Minox 66414: ZA 5 HD 2-10x40 w/ German #4 Reticle, Black
Minox 66411: ZA 5 HD 2-10x40 w/ BDC 600 Reticle, Black

Specifications for Minox ZA HD 2-10x40 Riflescope:

Object Lens
Clear aperture (mm): 40
Parallax adjustment range (Side focus): 100 yds
Eyepiece
Fully multicoated: Yes
Eye relief (mm): 101
Exit pupil high power (mm): 4.0
Exit pupil low power (mm): 17.5
Eyepiece -diopter (min): 2
Eyepiece +diopter (max): 2
Power Selector
Magnification high power: 10
Magnification low power: 2
Field of view low power/ft 100 yards: 48.7
Field of view high power/ft 100 yards: 9.7
Windage/Elevation
Reticle adjustment per click: .25"
Windage travel - total: > or = 80 MOA
Elevation travel - total: > or = 80 MOA
Mechanical
Main tube outside diameter (mm): 25.4/1.0in
Overall length (in): 12.74
Front mounting distance (in.): 2.2
Rear mounting distance (in.): 1.96
Weight (oz.): 16

Features of Minox ZA HD Riflescope:

  • High performance German HD optics
  • Aluminum tube (1" and 30 mm)
  • Anodized scope body
  • 5x zoom range
  • Long, safe eye relief
  • Large field of view
  • Reticle at the 2nd focal plane
  • Parallax adjustment (SF models)
  • Waterproof
  • Filled with Argon gas

Package Contents:

  • Minox ZA 5 HD 2-10x40 Riflescope
