Select a Model

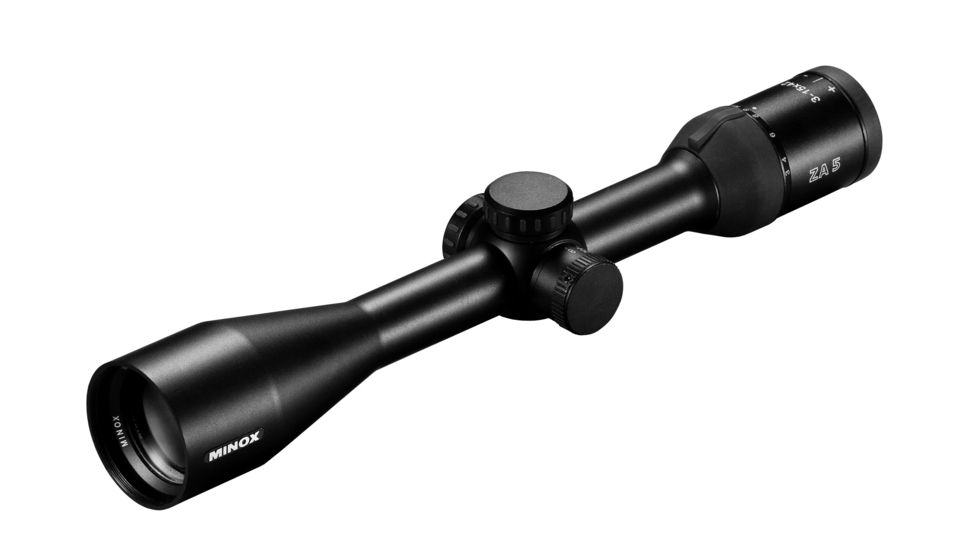

Minox ZA 5 HD 3-15x42 SF w/ Mino-Plex Reticle, Black 66430
$599.00 $689.00 Save 13%
Model: Minox ZA 5 HD 3-15x42 SF w/ Mino-Plex Reticle, Black 66430
Code: MX-RS-ZA31542-66430
MPN: 66430
UPC: 4007450664307

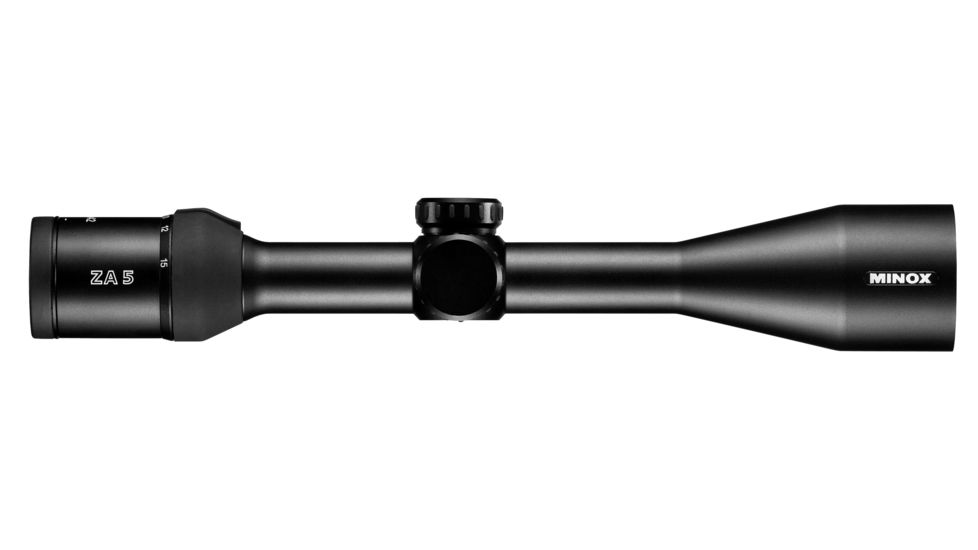

Minox ZA 5 HD 3-15x42 SF w/ German #4 Reticle, Black 66434
$599.00 $689.00 Save 13%
Model: Minox ZA 5 HD 3-15x42 SF w/ German #4 Reticle, Black 66434
Code: MX-RS-ZA31542-66434
MPN: 66434
UPC: 4007450664345

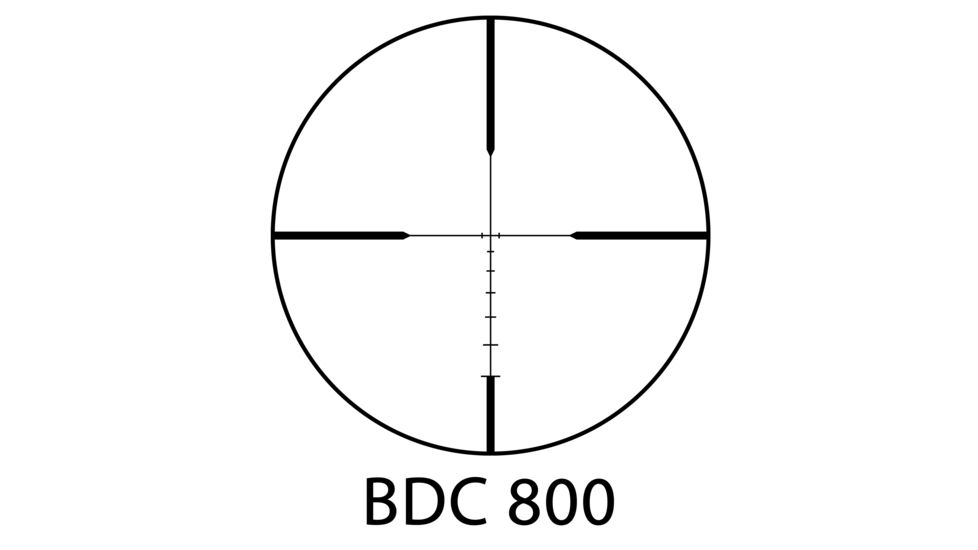

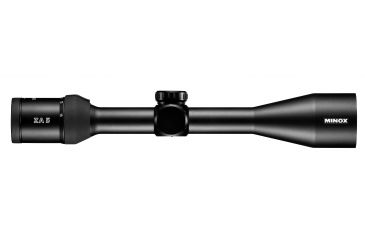

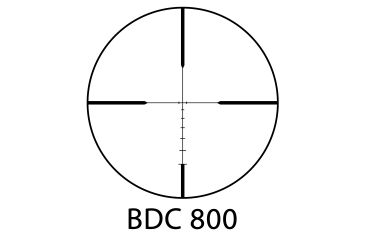

Minox ZA 5 HD 3-15x42 SF w/ BDC 800 Reticle, Black 66432
$619.00 $709.00 Save 13%
Model: Minox ZA 5 HD 3-15x42 SF w/ BDC 800 Reticle, Black 66432
Code: MX-RS-ZA31542-66432
MPN: 66432

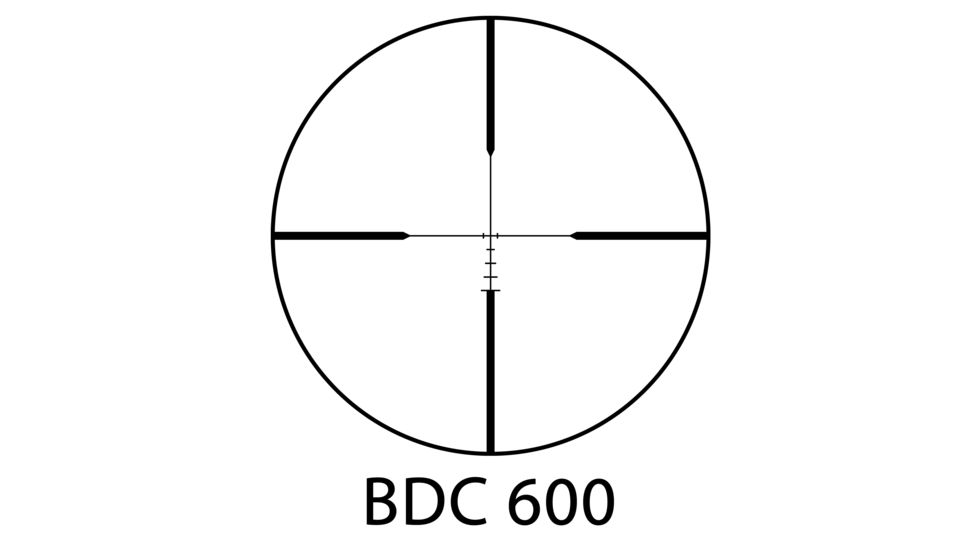

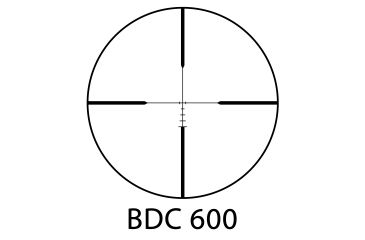

Minox ZA 5 HD 3-15x42 SF w/ BDC 600 Reticle, Black 66431
$619.00 $709.00 Save 13%
Model: Minox ZA 5 HD 3-15x42 SF w/ BDC 600 Reticle, Black 66431
Code: MX-RS-ZA31542-66431
MPN: 66431
UPC: 4007450664314
Click to select this item for your bundle offer!
Buy Together & Save Even More!

A great way to save even more money is to purchase complementary products at the same time that you shop for what you want!

In many cases you'll be offered two additional items that you can add to your order and save, but feel free to only pick one if you want - you'll still save

As low as $65399 You Save 13%

Receive a FREE PUMA IP Elk Hunter Knife ($169.99 value) with the purchase of any qualifying, in-stock MINOX ZA 5 HD Riflescope between June 10th, 2014 and July 31st, 2014. Must be postmarked by August 31st, 2014. See the Rebate Form and Rules for more details.

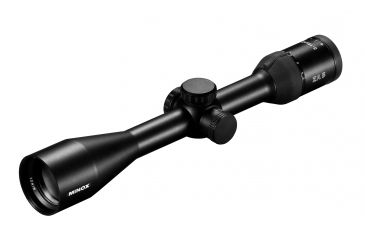

Minox ZA 5 HD 3-15x42 Riflescope Product Info

The Minox ZA 5 HD 3-15x42 SF - 1" Tube Riflescope is a beautifully crafted side focuse riflescope. The universal Side Focus Parallax Adjustment riflescope for close to medium shooting ranges. The Minox ZA 5 HD Side Focus Riflescope isimage suitable for flexible use from woodlots to mountain tops. Designed and engineered in Germany and assembled in the USA, the Minox ZA HD Zoom Riflescopes offer a 5x zoom range and new long-range reticles for improved accuracy and peace-of-mind.

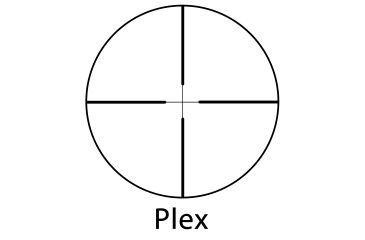

Minox 66430: ZA 5 HD 3-15x42 SF w/ Mino-Plex Reticle, Black

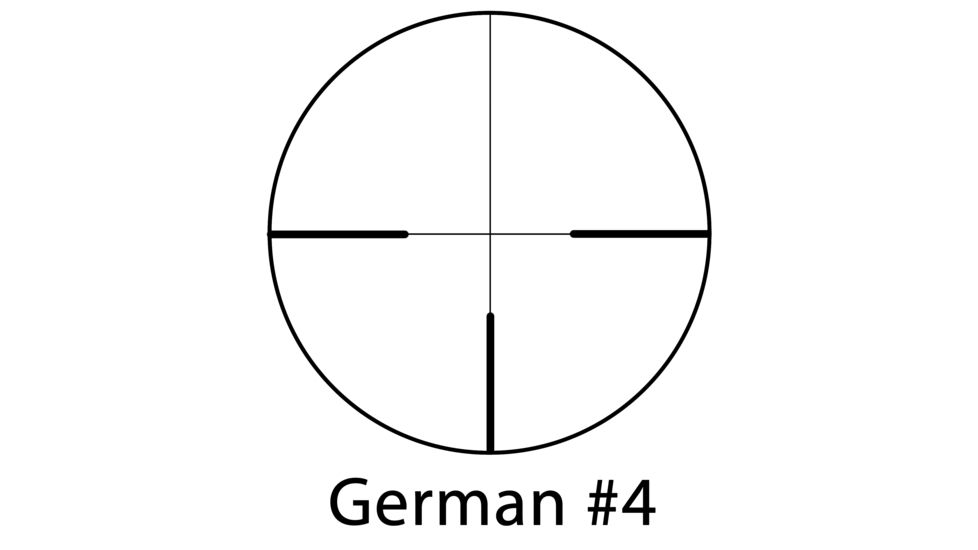

Minox 66434: ZA 5 HD 3-15x42 SF w/ German #4 Reticle, Black
Minox 66431: ZA 5 HD 3-15x42 SF w/ BDC 600 Reticle, Black
Minox 66432: ZA 5 HD 3-15x42 SF w/ BDC 800 Reticle, Black

Specifications for Minox ZA HD 3-15x42 SF Riflescope:

Object Lens
Clear aperture (mm): 42
Parallax adjustment range (Side focus): 50 yds - infinity
Eyepiece
Fully multicoated: Yes
Eye relief (mm): 101
Exit pupil high power (mm): 2.8
Exit pupil low power (mm): 12.7
Eyepiece -diopter (min): 2
Eyepiece +diopter (max): 2
Power Selector
Magnification high power: 15
Magnification low power: 3
Field of view low power/ft 100 yards: 32.5
Field of view high power/ft 100 yards: 6.5
Windage/Elevation
Reticle adjustment per click: .25"
Windage travel - total: > or = 60 MOA
Elevation travel - total: > or = 60 MOA
Mechanical
Main tube outside diameter (mm): 25.4mm/1in
Overall length (in): 12.98
Front mounting distance (in.): 2.3
Rear mounting distance (in.): 1.96
Weight (oz.): 17.6

Features of Minox ZA HD Riflescope:

  • High performance German HD optics
  • Aluminum tube (1" and 30 mm)
  • Anodized scope body
  • 5x zoom range
  • Long, safe eye relief
  • Large field of view
  • Reticle at the 2nd focal plane
  • Parallax adjustment (SF models)
  • Waterproof
  • Filled with Argon gas

Package Contents:

  • Minox ZA 5 HD 3-15x42 Riflescope
