Select a Model
Minox ZE 5i 1-5x24 w/ Illuminated Dot Reticle, Black 66553
$1,399.00 $1,649.00 Save 15%
Model: Minox ZE 5i 1-5x24 w/ Illuminated Dot Reticle, Black 66553
Code: MX-RS-ZE1524-66553
MPN: 66553
UPC: 4007450665533
Minox ZE 5i 1-5x24 w/ Illuminated German #4 Reticle, Black 66554
$1,399.00 $1,649.00 Save 15%
Model: Minox ZE 5i 1-5x24 w/ Illuminated German #4 Reticle, Black 66554
Code: MX-RS-ZE1524-66554
MPN: 66554
UPC: 4007450665540
Click to select this item for your bundle offer!
Buy Together & Save Even More!

A great way to save even more money is to purchase complementary products at the same time that you shop for what you want!

In many cases you'll be offered two additional items that you can add to your order and save, but feel free to only pick one if you want - you'll still save

As low as $1,44799 You Save 16%

Buy now, pay later! Now when you check out at OpticsPlanet with PayPal, you can apply for PayPal's 6 month no payments, no interest option through PayPal Credit. PayPal Credit available in USA only and orders must be over $99 to qualify. Click here to learn more.

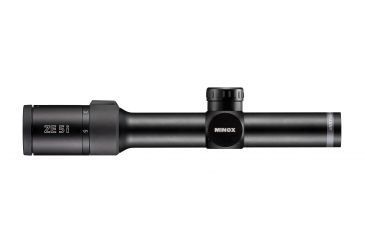

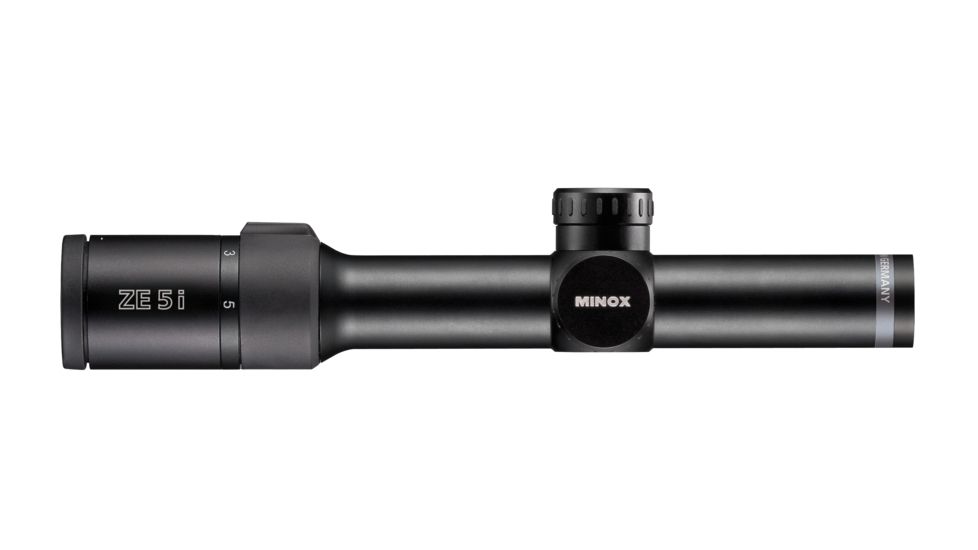

Minox ZE 5i 1-5x24 Riflescope Product Info

The Minox ZE 5i 1-5x24 Riflescope is a super small, compact zoom riflescope. With large field of view for quick aiming. The Minox ZE 5i Hunting Riflescope is incredibly light and uniquely compact for dynamic lowland or mountain hunting. After successfully introducing and establishing the MINOX ZA riflescope line, the optical specialist from Wetzlar is now expanding its product range with the presentation of four new ZE-i riflescopes. The new riflescopes have been meticulously designed to meet the needs of passionate hunters and marksmen and women. With our quality seal "Made in Germany" and an outstanding cost/benefit ratio, they are able to set new standards in their class. Equipped with a 30 mm riflescope tube, a 5x magnification and a red dot reticle with 11 brightness settings, the Minox ZE 5i Zoom Riflescope offers the user maximum flexibility and precision for short and long range shooting distances.

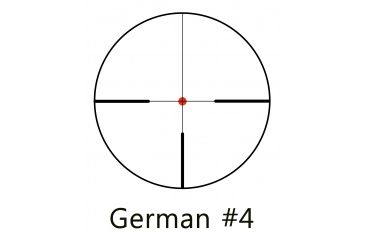

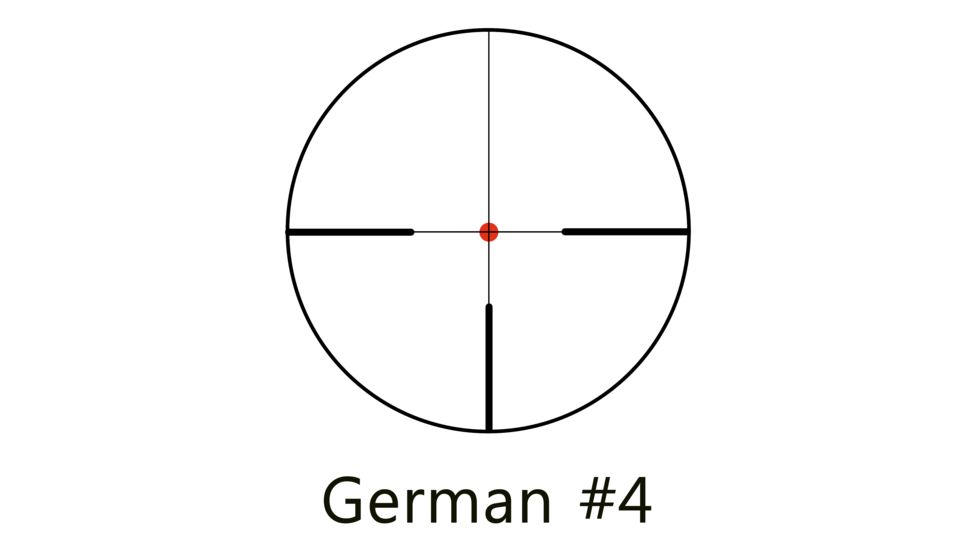

Minox 66554: ZE 5i 1-5x24 w/ Illuminated German #4 Reticle, Black

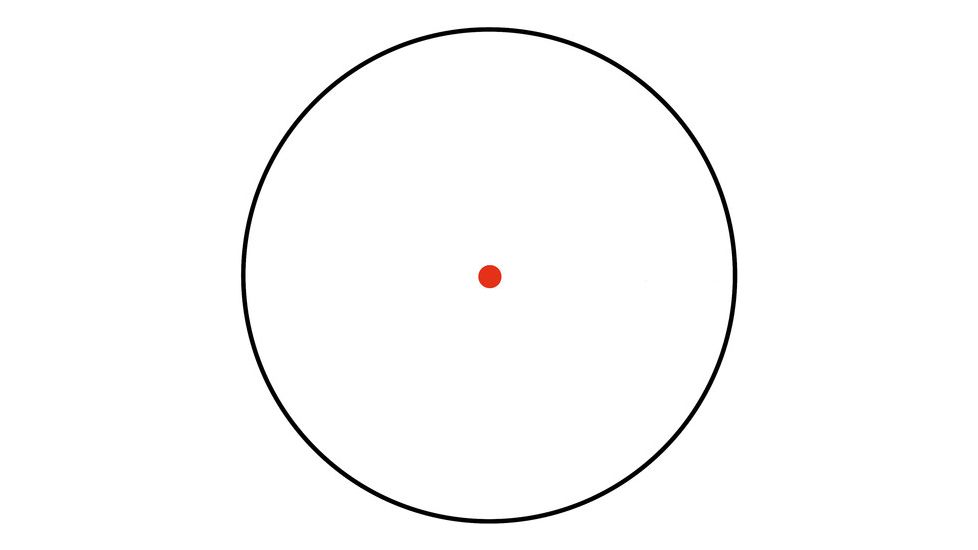

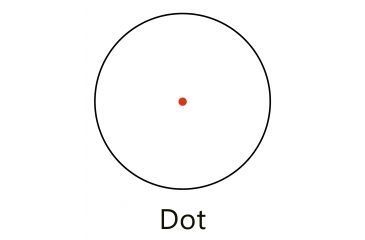

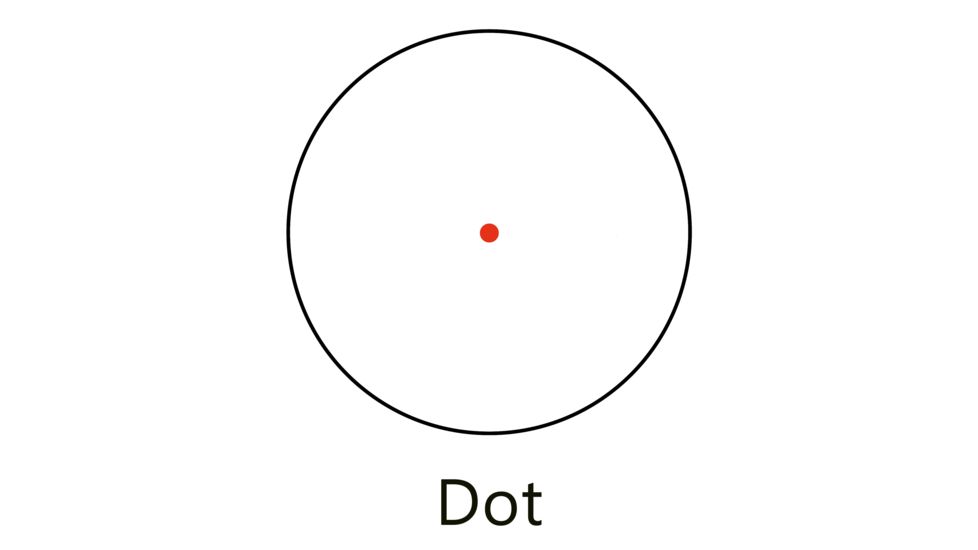

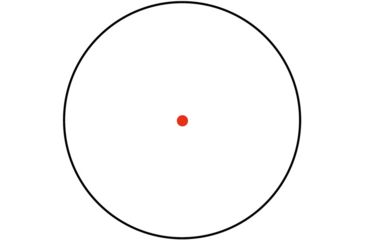

Minox 66553: ZE 5i 1-5x24 w/ Illuminated Dot Reticle, Black

Specifications for Minox ZE 5i 1-5x24 Riflescope:

Object Lens
Clear aperture (in.): .94
Parallax adjustment range (Side focus): 109 yds/100m
Eyepiece
Fully multicoated: Yes
Eye relief: 3.94
Exit pupil high power (in.): .45
Exit pupil low power (in.): .19
Eyepiece -diopter (min): 2.5
Eyepiece +diopter (max): 2.5
Power Selector
Magnification high power: 5
Magnification low power: 1
Field of view low power/ft 100 yards: 110.6
Field of view high power/ft 100 yards: 23.1
Windage/Elevation
Reticle adjustment per click: 1cm/100m
Windage travel - total: > or = 38 MOA
Elevation travel - total: > or = 38 MOA
Mechanical
Main tube outside diameter (in.): 1.2
Overall length (in.): 11.2
Front mounting distance (in.): 3.6
Rear mounting distance (in.): 2.4
Weight (oz.): 16.9

Features of Minox ZE Riflescope:

  • Precise reticle with a brilliant illuminated red dot - adjustable in 11 levels of brightness.
  • Extremely bright red dot even for hunting during the day
  • Helps you to aim quickly and significantly increase your hit rate
  • Red dot visible at the 2nd focal plane
  • Auto Power-Off: automatic deactivation of the red dot
  • Spare battery integrated into the reticle adjustment drum

Package Contents:

  • Minox ZE 5i 1-5x24 Riflescope
