Product No Longer Available

Unfortunately Morovison Pinnacle Gen3 Night Vision Weapon Sight MVP-BNS-P is no longer carried by OpticsPlanet. You can also explore other items in the Night Vision category yourself to try and find the perfect replacement for you!

This model of Morovision Night Vision Riflescope is no longer available. Please select from other excellent models of Morovision , Bushnell , N-Vision , ATN, and more Night Vision RifleScopes on our site.


Please note: Black spots (artifacts) in image intensifier tubes are an inherent result of the manufacturing process and do not affect the performance of a night vision unit. Higher generation units have fewer artifacts.

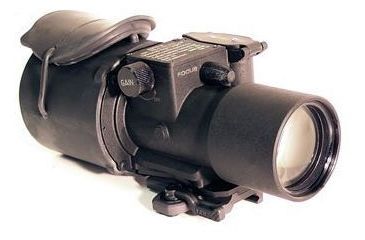

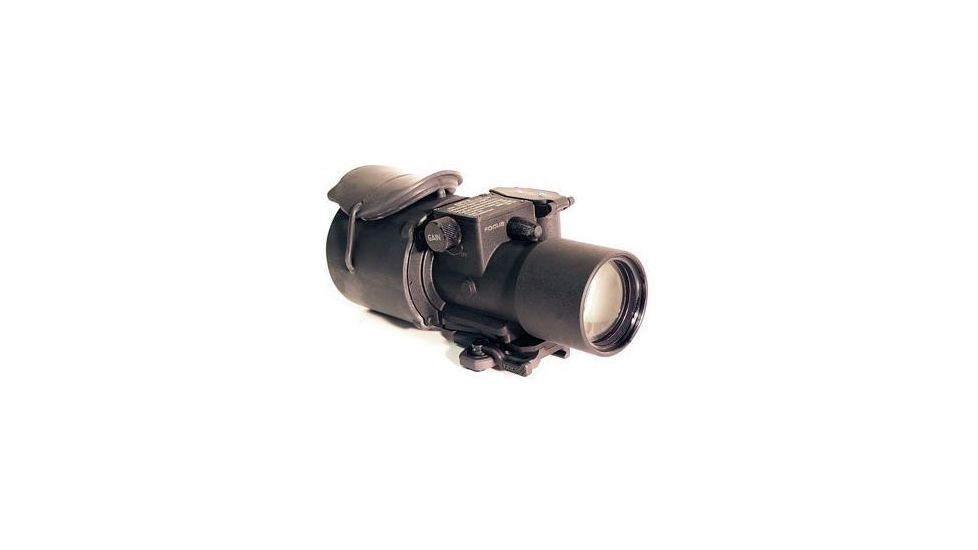

Morovison Pinnacle Gen3 Night Vision Weapon Sight MVP-BNS-P Product Info

The Morovison Pinnacle Gen3 Night Vision Weapon Sight MVP-BNS-P is a unique night vision system that is small enough to mount in front of any boresighted daytime Rifle Scopes. Rifle Scope magnification can range from one toimage twelve power. The BNS P Generation 3 Weapon Sight from Morovision does not require any boresighting and once mounted the daysight provides the aiming point. The Morovision BNS NV Sight maintains boresight despite normal misalignments due to mount position errors and does not alter the sighting centerline (parallax is unchanged from dayscope). The BNS P+ PINNACLE also contains no beam splitter or folded optics to go out of alignment.

The MVP-BNS P+ PINNACLE Sight is a revolutionary Morovision Night Vision device when used with a high magnification fixed or variable power daytime riflescope. The magnification is provided by the dayscope, which typically has much smaller optics than those associated with normal 4X or 6X night vision weaponsights. This means there is no loss in system gain or typical f/number loss associated with large hunting optics. Variable magnification dayscopes can actually zoom in (up to 12X) and still retain the same gain (image brightness) with only a slight loss in resolution. This Night Vision Scope requires 2 AA batteries for use

Specifications for Morovison Pinnacle Gen3 Night Vision Weapon Sight MVP-BNS-P:

Generation:   3 (U.S. ITT PINNACLE)
Resolution:   64 lp/mm (Min)
Film:   Thin-Film
Gate:   Auto-Gated
Magnification:   1x
Field of View:   13 Degrees
Objective Lens:   68 mm f/1.12
Range of Focus:   10mm to infinity
Boresight Accuracy:   within 1 MOA
Boresight Repeatability:   within 0.5 MOA
Boresight Retention:   Permanent
Boresight Adjustment:   None Required
Reticle Adj. Step Size:   0.2 mil
Battery Type:   Two (2) AA batteries
Battery Life:   40 hours at 70˚F
Weight:   1.9 lbs
Length:   7.08"
Width:   3.0in in Outside Diameter
Height:   2.95" Max Above Rail

Package Contents:

  • Morovison Pinnacle Gen3 Night Vision Weapon Sight MVP-BNS-P
    • ARMS Weaver (Picatinny) Rail Mount
    • Flip Up Lens Caps
    • Batteries - Two (2) AA batteries.
    • Operators Manual- Instructional users guide
    • Lens Cleaning Kit
    • Soft Carry Case
