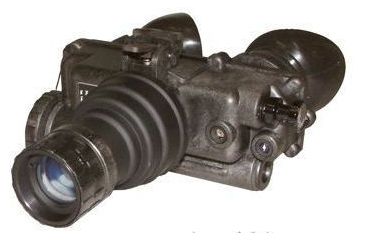

Morovision PVS-7 Goggle Gen 3 PINNACLE
is the standard issue night vision goggle
type supplied to the U.S. Military and its allies. Morovision Night Vision Goggles
equipped with a factory new, high-performance, ITT Generation 3 PINNACLE
image intensifier tube
is the world's leading producer of night vision devices
. The PVS-7 Gen 3 PINNACLE night vision goggle
by Moro Vision
is designed for the most demanding of night time applications. Battle-proven technology
includes Automatic Brightness Control
) which automatically adjusts the brightness
of the image tube
to achieve the highest quality image resolution
under varying light conditions
as well as a built-in infra-red illuminator
which allows the user to operate under zero light conditions
. Lightweight and versatile, the PVS-7 Gen 3 PINNACLE night vision goggle
can be hand-held
, and helmet-mounted
. Standard accessories of Morovision Nightvision Goggles
and System Data Sheet
For more variety of MoroVision Night Vision
and ITT Night Vision
models please visit our Night Vision Goggles and Night Vision Scopes
Specifications for Moro Vision PVS-7 Goggle Gen 3 PINNACLE:
Features of Morovision Goggle PVS-7 Gen 3 PINNACLE MVP-MVPVS7-3P:
|Generation: || 3 U.S. (ITT PINNACLE)|
|Resolution: || 64 lp/mm (Min)|
|Film: || Thin-Film|
|Gate: || Auto-Gated|
|Magnification: || 1x|
|Field of View: || 40 degree|
|Objective Lens: || f/1.2|
|Eyepiece Lens: || EFL 26 mm|
|Diopter Adjustment: || +2 to -6|
|Interpupillary Adjustment: || 55 to 71mm|
|Range of Focus: || 20 cm to infinity|
|Battery Type: || Two (2) AA batteries|
|Battery Life: || 30 hrs in room temp.|
|Weight w/batteries: || 24 oz / 680 grams|
|Dimensions: || 6 3/8"(L) x 6"(W) x 3"(H)|
|Operating Temperature: || -51 C to +52 C|
|Weather Resistant: || Yes|
|IR Illuminator: || Yes (built in)|
|Warranty: || Two (2) Years|
- ITT PINNACLE® Image Intensifier Tube - Thin-Filmed/Auto-gated
- High resolution 64 lp/mm (Min), high gain, and high photoresponse in visible and near infrared
- Multifunctional: Hand-held, head-mounted, helmet-mounted, or tripod mounted
- Lightweight only 24 oz w/ batteries
- Equipped with momentary or continuous IR switch
- Automatic high-light cutoff
- Comprehensive two-year warranty

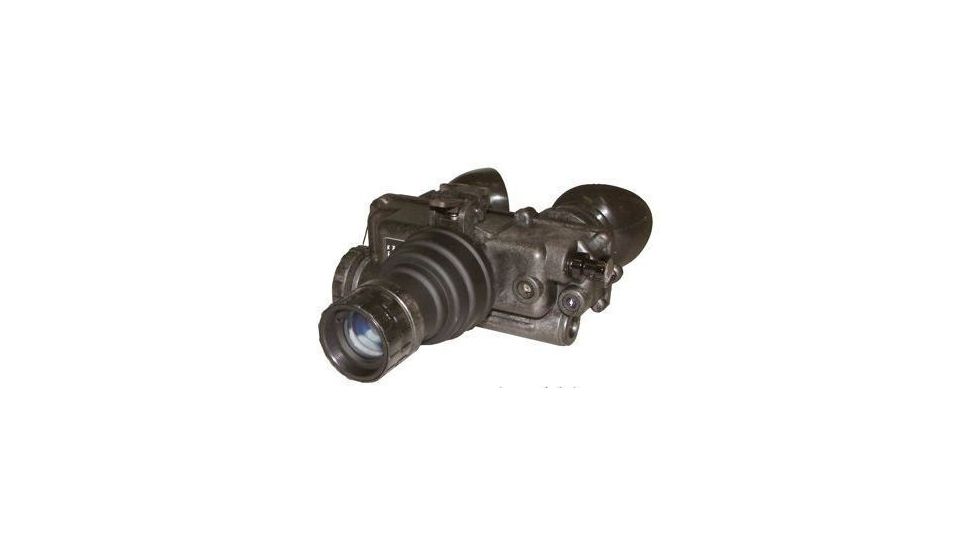

- Morovision PVS-7 Goggle Gen 3 PINNACLE MVP-MVPVS7-3P
- Head Mount Assembly - Allows for hands free operation. Accommodates user's head size and eye positioning.
- Medium & Thick Brow Pads - Changeable pads.
- Eye Cups - Prevents the emission of stray light or facial reflections.
- Soft Carrying Case - Provides convenient storage.
- Day Light Filter - Filters excessive light. Protects objective lens from the elements.
- Shoulder Strap - Attaches to the PVS-7 carrying case for easy portability.
- Lens Paper - Used to lightly clean the objective and eyepiece glass surfaces.
- Sacrificial Window - Shields the optics from sand, air particles, or anything that may scratch the lens.
- Demist Shields - Snaps onto the eyepiece to prevent condensation from forming on the optics.
- Operator's Manual - Instructional users guide.
- Batteries - Two (2) AA.
- Data Sheet - System Test Data Sheet.
