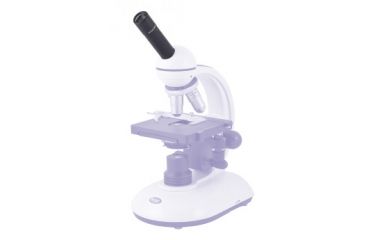

Motic Instruments Digital Compound Microscopes, Motic Widefield Eyepieces WF10x, 20 Mm is a reliable and dependable addition to the Motic Instruments Microscopes family of products. Combining top-notch and uncompromising quality with an affordable price, the Motic Instruments Digital Compound Microscopes, Motic Widefield Eyepieces WF10x, 20 Mm SG02.S0121/ 19000-032 can fulfill your laboratory needs while still offering a great value for the money.
Product Category Description:
Digital Compound Microscopes, Motic*
These all-in-one concept microscopes combine a routine laboratory or university microscope with a built-in high resolution 8.5mm (1/3") CCD camera, which can produce images on TVs and monitors with approximately 80% field of view through the eyepiece. A built-in grabber converts an analog signal to digital signal. The precise graduation of the low position coaxial control mechanical stage allows quick finding and marking of specific areas on the slide. The stage has a travel range of 76x50mm (X-Y), graduated to 1mm with vernier reading to 0.1mm. The ball bearing-mounted, reversed quintuple nosepiece has a ribbed grip for easy rotation and is positioned closer to the microscope body for easy access to the specimen.
The laboratory microscopes feature a Siedentopf trinocular phototube inclined at 30°; 12V, 20W halogen Koehler illumination; plug and play computer applications with simple USB plug; slide-in, centerable 1.25 Abbe condenser with Iris diaphragm for maximum flexibility; and the Motic Images 2000 user-friendly image processing and analyzing software. Microscopes are available with achromatic or planachromatic objectives.
The university microscope features a Jentzsch trinocular phototube inclined at 30°; 12V, 20W halogen illumination; 1.25 Abbe condenser with Iris diaphragm for maximum flexibility; and the Motic Images 2000 user-friendly image processing and analyzing software.
The high-quality phase contrast unit (19000-068) consists of centerable five-position condenser; brightfield, phase 10x, 20x, 40x, and 100x oil objectives; and four basic planachromatic 10x, 20x, 40x, and 100x phase objectives. The optional Moticap capture card (19000-152) allows a real time image size of 640x480 pixels, provides 30 frames per second transmission speed, and has twain drivers for still image capturing.
Ordering Information: Supplied with USB, S-Video, and RCA video cables. Microscopes include eyepieces; 4x, 10x, 40x (spring), and 100x (spring, oil) objectives; and a dust cover. For additional accessories and options, contact our sales representative.
