Product No Longer Available

Unfortunately LOMO MULTISCOPE BMH4-BF binocular microscope is no longer carried by OpticsPlanet. You can also explore other items in the Microscopes category yourself to try and find the perfect replacement for you!

This model of LOMO Microscopes has been discontinued and is no longer available. Please visit our LOMO Microscopes page to see the whole collection of LOMO scopes or check out Microscopes section of our store.

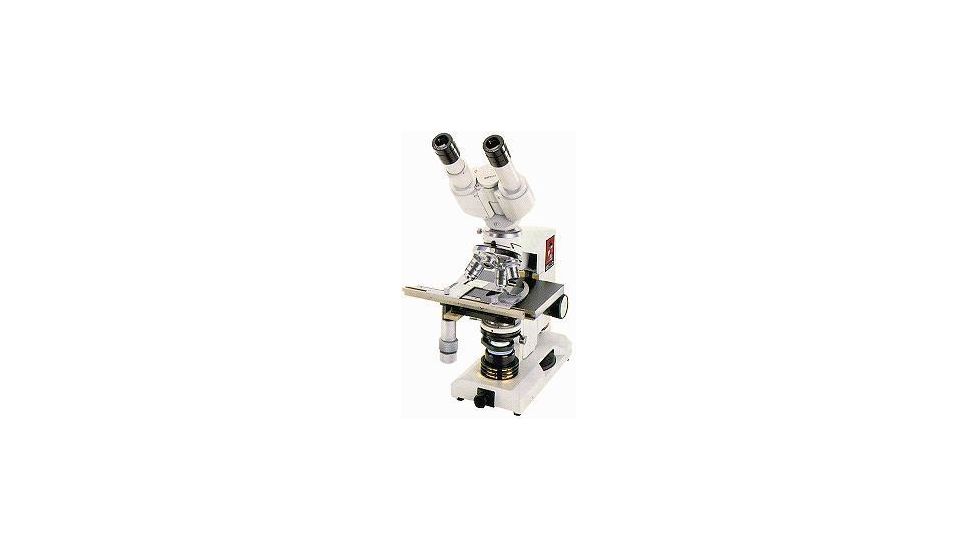

LOMO MULTISCOPE BMH4-BF binocular microscope Product Info

LOMO BMH4-BF MULTISCOPE binocular microscopes - The best value inimage the world of microscopy must be the general-purpose Multiscope™ line of modular microscopes! Sparkling RMS Achromat and Plan Achromat optics with a 33mm parfocal distance, an extensive array of included and optional accessories, and modest prices make the Multiscope™ BMH4-BF microscope an ideal choice when classic optical performance is required, but cost must be a consideration. Even at our low prices, every Multiscope BMH4-BF binocular microscope includes a Limited Lifetime Warranty.

Do not confuse the LOMO BMH4-BF microscope with the cheaply made, low cost optics so frequently seen in advertisements and retail stores. This is a ruggedly made microscope with serious imaging capabilities! Utilizing a precision mechanical stage, and a high resolution optical system consisting of 4x and 10x plan achromats, 40x and 100x flat field achromats and a focusable 1.25 N.A. abbe condenser, the BMH4-BF will astonish you with its image quality and ease of use. Ready to use "out-of-the box", the BMH4-BF binocular microscope is capable of performing urinalysis tests, protozoan hunts, mycological spore analysis, blood counts, clinical samples and more! The binocular head on all Multiscopes™ includes a field-flattening 1.5x internal lens system to boost the microscope magnification 50%! For example,with the standard 10x widefield eyepieces, using the 4x objective yields an image magnification of 60x (10X x 4X x 1.5X). Using the 10x objective with the 10x eyepieces yields a magnification of 150x. Using the 40x objective yields 600x magnification, and so on to the 100x oil immersion objective, which yields an image magnification of 1,500x. Such a magnification range requires an ultra-precise focusing system. The "FineWheel™" fine focus control is ergonomically placed in the base of the microscope to limit unnecessary hand movement, and is coupled to one of the smoothest, most precise focusing systems in the microscope industry.

The LOMO®BMH4-BF binocular microscopes also include a brilliant 12V/20W variable intensity illuminator with a centerable bulb, and a precision 12-leaf aperture iris diaphragm in the sub-stage condenser. A swing-out reduction lens on the condenser allows the correct illumination of the full field of view with all objectives ranging from 4x to 100x. The built-in lamp housing sharply and evenly illuminates the specimen, while the external, variable intensity power supply keeps any transformer heat away from the microscope.

Should you wish to "turbo-charge" your illumination to aid in high magnification, phase contrast and/or darkfield observations, a modestly priced 6V/15W halogen Koehler illuminator may be purchased as an optional accessory.

The array of optional LOMO Multiscope binocular microscope accessories includes a trinocular head capable of attaching 35mm, video and digital camera adapters for photomicrography, an assortment of eyepiece reticles, contrast-enhancing and neutral density filters, phase contrast, darkfield and reflected light upgrades,special objectives - and much, much more! Just ask!

Sample Applications

  • Education: Biology, Botany, Cell Biology, Morphology, Mycology, Zoology
  • Health/Public Health: Blood counts, Urinalysis (Veterinary, Physician), Plaque examination(Dentist), Fecal examination (Veterinary)
  • Agriculture: Plant and soil examination, animal diseases, semen vitality
  • Forensic: Trace evidence examination
  • Water Quality: Coliform counts

If you plan to take pictures or video, you will need a trinocular version of this microscope. In some cases our adapters can fit into an eyepiece tube on the binocular head. However, we find this to be an inconvenience most of the time and highly recommend a trinocular head for photomicrography. The TMH4-BF-V,F or E is the trinocular version of the BMH4-BF (-V comes with a 1.0x C-mount adapter for video cameras and some digital cameras, -F comes with a 2.4X T-mount adapter designed for attaching 35mm cameras, and the -E comes with a telescoping DIN standard (23.2mm) eyepiece tube adapter for inserting our digital camera adapters or 3rd party adapters) As with any of the items offered in our store, we encourage you to e-mail us with any questions info@opticsplanet.com!



OPTICAL SYSTEM: 160mm Mechanical Tube Length, 33mm Parfocal Distance, 28X–1500X Magnification for observation
HEAD Binocular 45° inclined, 360° rotatable. Magnification factor: 1.5X. IPD adjustment range: 55mm–75mm. DA for the left eyepiece: ±5dpt
STAND UniFrame™ • Observation head universal dovetail mount. Accepts heads, Epi-Illuminators, and photo-attachments.

• Dovetail nosepiece mount. Allows the use of an interchangeable nosepiece or an Epi-Objective adapter.

• Centerable condenser mount. Rack-and-pinion focusing with tension adjustment and safety stop.

• Condenser vertical movement: 22mm.

• Sturdy and stable base with four rubber feet.

• Chemical- and scratch-resistant finish.

FOCUSING Coarse Two large knurled knobs. Built-in slip clutch mechanism. Tension adjustment. Travel range: 42mm
FineWheel™ Large knurled disk built into the base. Adjustment range: 2.5mm with 0.45mm of vertical travel per full revolution.
NOSEPIECE Quadruple Built-in precision click stops for parfocality and parcentricity of the objectives. Dustproof. Chrome plated.
STAGE Mechanical High-precision mechanical stage. Low coaxical X/Y controls. Size: 135mm x 120mm. Specimen cross-travel: 80mm x 40mm. Scale graduation: 1mm. Vernier accuracy: 0.1mm.
CONDENSER Brightfield N.A. 1.25, Abbe type. Spherically corrected. Built-in aperture diaphragm and swing filter holder.
ILLUMINATION Variable Halogen Built in, 12V/20W. Easy bulb replacement and filament alignment. Internal heat-absorbing filter. External power supply for additional safety and cooler operation.
OBJECTIVE EAB Achromats (4) 4 X 0.12, 10 X 0.25, 40 X 0.65 (spring loaded), 100 X 1.25 Oil Immersion (spring loaded)
EYEPIECE ESW Series (2 pc) 10X, F.N. 18 Widefield. High eyepoint.
FILTERS Diffusing 33mm.
Blue 33mm.
Miscellaneous Instruction manual, dust cover, spare bulb, immersion oil (Type A, 1/4 oz)

LOMO's

LIFETIME WARRANTY

(USA, Canada, and Mexico only)


MULTISCOPE™ Microscopes are warranted to be free from defects in material and workmanship for the life of the instrument. Normal wear, or damage resulting from abuse, accident, alteration, misuse, service by an unauthorized party or shipping damage, are excluded from this warranty and are not covered. LOMO America, Inc. will repair or replace the defective microscope covered by this warranty free of charge if it is returned, postage prepaid, to LOMO America's Service Center in Northbrook, Illinois in its original package. A Return Authorization Number (RAN) has to be obtained from LOMO America, Inc. prior to shipping. This warranty gives you specific legal rights. You may also have other rights that vary from state to state and country to country.

LOMO MULTISCOPE™ BMH4-BF microscope (Biolam Student Microscope) is awesome and a great deal.
