Unfortunately LOMO MULTISCOPE TMH4-BF-V Microscope with adapter for Video & Photomicrography (VA-VAV2 C-Mount Adapter for HT-30) is no longer carried by OpticsPlanet. You can also explore other items in the Microscopes category yourself to try and find the perfect replacement for you!

This model of LOMO Microscopes has been discontinued and is no longer available. Please visit our LOMO Microscopes page to see the whole collection of LOMO scopes or check out Microscopes section of our store.

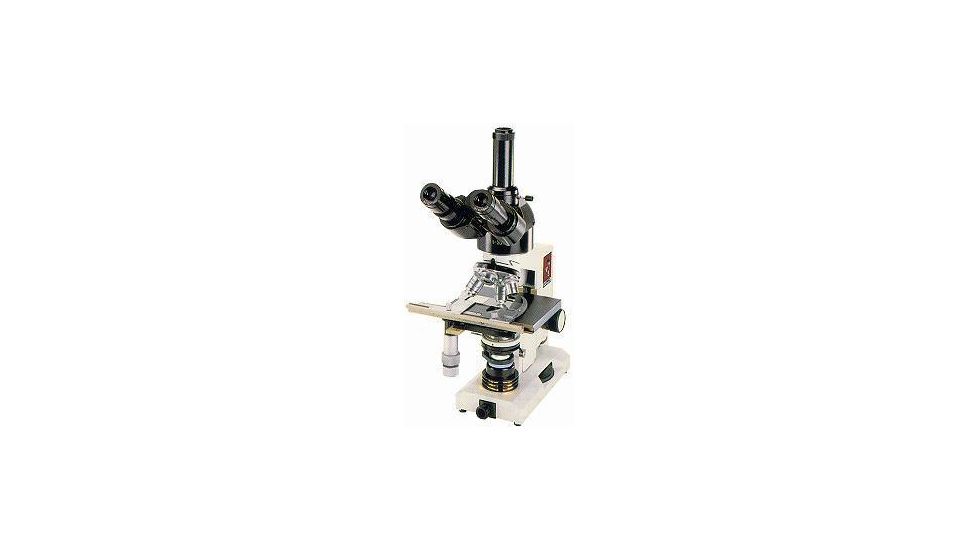

LOMO MULTISCOPE TMH4-BF-V Microscope with adapter for Video & Photomicrography (VA-VAV2 C-Mount Adapter for HT-30) Product Info

Do your applications require a workhorse of a microscope capableimage of documenting your analyses via photograph? Then look no further than the LOMO Multiscope™ TMH4-BF-V, F or E. The Multiscope™ TMH4-BF offers an unsurpassed optical magnification range from 44x- 2,500x due to its unique, built-in, 3-position magnification changer with1.1x, 1.6x, and 2.5x positions.  Combine that with your choice of adapters for 35mm, video and digital cameras and just about anyone can afford an excellent photomicrography microscope package. This is a great microscope for teachers, food scientists, quality assurance departments -- anyone who would like to share or document microscope images with others.

We believe the TMH4-BF is the best value in the world of photomicrography-ready microscopes. Sparkling RMS Achromat and Plan Achromat optics with a 33mm parfocal distance, an extensive array of included and optional accessories, and modest prices make the Multiscope™ TMH4-B-F an ideal choice when classicoptical performance is required, but cost must be a consideration. Even at our low prices, all LOMO Multiscope TMH4-BF include a LimitedLifetime Warranty.

Do not confuse the LOMO TMH4-BF Microscope with the cheaply made, low cost optics so frequently seen in advertisements and retail stores. This is aruggedly made microscope with serious imaging capabilities! Utilizing aprecision mechanical stage, and a high resolution optical system consisting of4x and 10x plan achromats, 40x and 100x flat field achromats and a focusable1.25 N.A. abbe condenser, the TMH4-BF will astonish you with its imagequality and ease of use. Ready to use "out-of-the box", the TMH4-BF is capable of performing urinalysis tests, protozoan hunts, mycological sporeanalysis, blood counts, clinical samples and more!

Magnification Changer - All Trinocular Multiscopes come with LOMO's HT-30 trinocular head. The LOMO HT-30 microscope head includes a unique and versatile dial-in, field-flattening, magnification-changer capable ofboosting magnifications by up to 250%! The rotating magnification changer has 4positions. The first three positions have magnification values of 1.1x, 1.6x and2.5x, respectively. Therefore, with the standard 10x widefield eyepieces and the4x objective, the microscope can yield images with magnifications of 44x, 64x or100x. Using the 10x objective with the 10x eyepieces, the microscopes can yield image magnifications of 110x, 160x or 250x. Using the 40x objective produces 440x, 640x or 1000x, and so on to the 100x oil immersion objective, which canproduce magnifications of 1,100x, 1,600x or 2,500x. The fourth position of the magnification changer contains a Bertrand Lens. This useful device looks into the objective back focal plane, which is beneficial for aligning the bulb in theoptical system, aligning phase rings for phase contrast, and looking at interference figures using polarized light.

All of this added magnification from the HT-30 requires an ultra-precisefocusing system. The "FineWheel™" fine focus control isergonomically placed in the base of the microscope to limit unnecessary handmovement, and is coupled to one of the smoothest, most precise focusing systemsin the microscope industry.

The TMH4-BF microscope also includes a brilliant 12V/20W variable intensity illuminator with acenterable bulb, and a precision 12-leaf aperture iris diaphragm in thesub-stage condenser. A swing-out reduction lens on the condenser allows thecorrect illumination of the full field of view with all objectives ranging from4x to 100x. The built-in lamp housing sharply and evenly illuminates thespecimen, while the external, variable intensity power supply keeps anytransformer heat away from the microscope.

Should you wish to "turbo-charge" your illumination to aid inhigh-magnification, phase contrast and/or darkfield  observations, a modestly priced 6V/15W halogen Koehlerilluminator may be purchased as an optional accessory.

The array of optional LOMO Multiscope microscope accessories includes video anddigital camera adapters for photomicrography, an assortment of eyepiece reticles,contrast-enhancing and neutral density filters, phase contrast, darkfield andreflected light upgrades, special objectives - and much, much more! Just ask!

How do I knowwhat model to buy? See if our chart below can point you in the right direction.Still unsure, or want us to recommend a solution for your needs? Then simplydrop us a message customercare@opticsplanet.com for professional advice and/or a quotation for a system that will meet both yourneeds and your budget.

TMH4-BFV: this configuration includes a 1x C-mount adapter (#VA-VAV2) most commonly usedfor attaching 1/3" and 1/2" C-mount video and digital CCD cameras.



Sample Applications

  • Agriculture: Plant and soil examination, animal diseases, semen vitality
  • Education: Classroom lectures in Biology, Botany, Cell Biology, Morphology, Mycology, Zoology
  • Forensic: Microscopic evidence examination
  • Health/Public Health: Blood counts, urinalysis (Veterinary, Physician), Plaque examination (Dentist), Fecal examination (Veterinary)
  • Quality Assurance: Food, asbestos, particle counts.
  • Science Museums: Exhibits
  • Water Quality: Coliform counts
  • Wineries, Breweries: Yeast cultures, contaminant detection, tours

OPTICAL SYSTEM: 160mm Mechanical Tube Length, 33mm Parfocal Distance, 28X-1500X Magnification for observation
HEAD Trinocular 30° inclined, 360° rotatable. Magnification changer (1.1X, 1.6X, 2.5X). IPD adjustment range: 55mm-75mm. DA for the left eyepiece: ±5dpt. Built-in optical path selector and Bertrand lens.
STAND UniFrame™ • Observation head universal dovetail mount. Accepts heads, Epi-Illuminators, and photo-attachments.

• Dovetail nosepiece mount. Allows the use of an interchangeable nosepiece or an Epi-Objective adapter.

• Centerable condenser mount. Rack-and-pinion focusing with tension adjustment and safety stop.

• Condenser vertical movement: 22mm.

• Sturdy and stable base with four rubber feet.

• Chemical- and scratch-resistant finish.

FOCUSING Coarse Two large knurled knobs. Built-in slip clutch mechanism. Tension adjustment. Travel range: 42mm
FineWheel™ Large knurled disk built into the base. Adjustment range: 2.5mm with 0.45mm of vertical travel per full revolution.
NOSEPIECE Quadruple Built-in precision click stops for parfocality and parcentricity of the objectives. Dustproof. Chrome plated.
STAGE Mechanical High-precision mechanical stage. Low coaxical X/Y controls. Size: 135mm x 120mm. Specimen cross-travel: 80mm x 40mm. Scale graduation: 1mm. Vernier accuracy: 0.1mm.
CONDENSER Brightfield N.A. 1.25, Abbe type. Spherically corrected. Built-in aperture diaphragm and swing filter holder.
ILLUMINATION Variable Halogen Built in, 12V/20W. Easy bulb replacement and filament alignment. Internal heat-absorbing filter. External power supply for additional safety and cooler operation.
OBJECTIVE EAB Achromats (4) 4 X 0.12, 10 X 0.25, 40 X 0.65 (spring loaded), 100 X 1.25 Oil Immersion (spring loaded)
EYEPIECE ESW Series (2 pc) 10X, F.N. 18 Widefield. High eyepoint.
FILTERS Diffusing 33mm.
Blue 33mm.
Miscellaneous Instruction manual, dust cover, spare bulb, immersion oil (Type A, 1/4 oz)
