Product No Longer Available

Unfortunately Nikon Instruments E200 Complete Microscope Trinocular Set Multi Voltage 100v to 220v is no longer carried by OpticsPlanet. You can also explore other items in the Microscopes category yourself to try and find the perfect replacement for you!

Buy now, pay later! Now when you check out at OpticsPlanet with PayPal, you can apply for PayPal's 6 month no payments, no interest option through PayPal Credit. PayPal Credit available in USA only and orders must be over $99 to qualify. Click here to learn more.

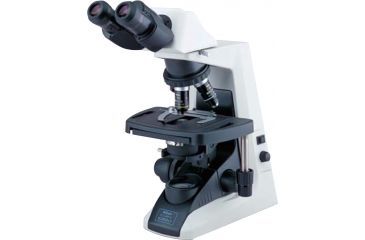

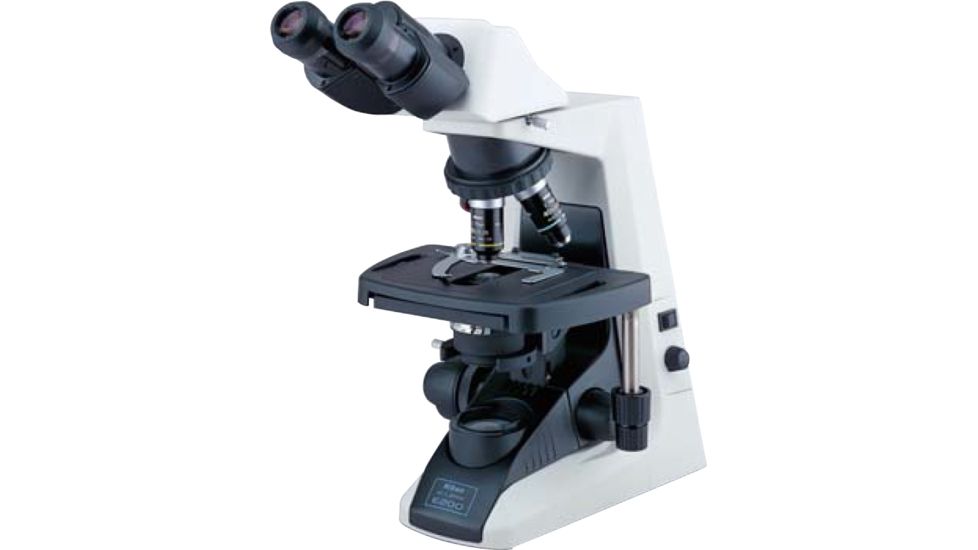

Nikon Instruments E200 Complete Microscope Trinocular Set Multi Voltage 100v to 220v Product Info

The Nikon E200 Complete Multi Voltage Microscope Trinocular Set 120V MCA752CC is a built-to-last, top-quality biological microscope ideal for basic laboratory use or educational purposes. Powered by Nikon 's CFI60 optics, the E200 Educational Microscope produces stunningly sharp and clear images at any magnification. Best of all, the Nikon Eclipse E 200 maintains the same operational ease and rigidity common to all Nikon microscopes and is compatible with many accessories for higher-grade Eclipse series microscopes. For the first time, the CF I60 optical system optics of the world's highest level hasbeen incorporated into a microscope of this class. The result is stunningly sharp and clear images at any magnification. Of course, Nikon maintains the same operational ease and rigidity common to all microscopes from Nikon and is compatible with many accessories. Is mold a problem? Not any more. By using anti-mold paint and sealing anti-mold agent inside the compound microscope at critical places, the Nikon Binocular Eclipse E200 Microscope is designed for use even in hot and humid environments. Moreover, this instrument packs all of these features into a contemporary design that blends in with the clean interiors of your hospital and examination rooms. Best of all, the Eclipse E200 is affordable. Once you use it, you'll realize what an outstanding performer it is, despite its modest price.

Owning a Nikon MCA752CC Microscope is not just about making a purchase it is about joining a growing family and becoming part of the future. Nikon provides you with the opportunity to enter a new world that you can help shape and define. Their corporate goal is to instill trustworthiness and future creativity truly depends on your input. With microscope optics at the heart of every imaging system, it's essential to choose the leading brand. With over 90 years expertise in the field, Nikon has achieved a level of optical excellence unrivalled by any other. Combined with innovative technology and intuitive software you can be reassured that Nikon microscopes are second to none. Adapters IB-MA-MBB73520 and IB-MA-MQD42000 can be used to connect a c-mount camera to the microscope.

Included components in MCA752CC Nikon E 200 Microscope Set

  • E200 Main Body (120V)
  • Right side fine focus, left side coarse & fine focus with tension adjust knob
  • Quadruple nosepiece, mechanical stage right handle ,
  • Exclusive "push-to drop" refocusing mechanism, halogen illuminator base
  • Field lens unit without diaphragm, halogen lamp 6V-20W,
  • Vinyl cover, instruction manual, hex key (to remove shipping clamps)
  • Power Cord 120v
  • E2-TF Trinocular Eyepiece Tube, 2-way prism 100% visual - 100% photo
  • Siedentopf eye tube rotates 180 degrees to adjust height,
  • Eyepiece CFI E 10X (Field No. 20) - two eyepieces provided
  • E2-C Abbe Condenser N.A. 1.25 with aperture diaphragm marked in objective magnifications, filter holder (33mm)
  • Blue filter 33mm
  • CFI E Plan Achromat 4X, N.A. 0.10, W.D. 30mm
  • CFI E Plan Achromat 10X, N.A. 0.25, W.D. 7mm
  • CFI E Plan Achromat 40X, N.A. 0.65, W.D. 0.65mm , spring-loaded
  • CFI E Plan Achromat 100X oil, N.A. 1.25, W.D. 0.23mm, oil-immersion, spring-loaded

Specifications for Nikon E200 Complete Microscope Trinocular Set Multi Voltage 100v to 220v:

Optical system: CFI60 (infinity optical system) Parfocal distance 60mm
Magnification: 40-1000X for observation
Eyepiece tube: E2-TF Trinocular tube Siedentopf type (Inclination of 30 degrees)
Eyepiece: CFI E 10X (Field number 20)
Nosepiece: Quadruple nosepiece, reversed type
Coarse/fine Focusing: Coarse/Fine
Stage: Rectangular 216 x 150 mm surface stage mounted on the main body. Cross travel 78 x 54 mm using low-positioned X/Y coaxial control knob
Objectives: CFI E Plan Achromat 4X N.A. 0.10 (W.D. 30mm), CFI E Plan Achromat 10X N.A. 0.25 (W.D. 7.0mm), CFI E Plan Achromat 40X N.A. 0.65 (W.D. 0.65mm), CFI E Plan Achromat 100X Oil N.A. 1.25 (W.D. 0.23mm) As an option, CFI Achromat DL and other higher-grade CFI60 objectives can be used
Condenser: E2 Abbe condenser N.A. 1.25; leaf-type aperture diaphragm with position guide markings for respective CFI E Plan objectives Optional condensers
Intermediate attachment: E200 epi-fluorescence attachment (optional)

Features of Nikon E - 200 Upright Binocular Microscope::

  • •Ergonomic design equals comfortable operation
  • •E2-TF Trinocular tube, Siedentopf type
  • •Anti-mold design
  • •Robust, vibration resistant construction
  • •Unique Refocusing Stage
  • •Upper limit stopper
  • •Revolving nosepiece

Package Contents:

  • Nikon MCA752CC Compound Microscope Multi-Voltage System E 200
