Product No Longer Available

Unfortunately Nikon Instruments E200 Compound Microscope Set with 4X 10X 40X 120V MCA74101 is no longer carried by OpticsPlanet. You can also explore other items in the Microscopes category yourself to try and find the perfect replacement for you!

This model of Nikon Microscopes is now discontinued and no longer available. Please check out our other selection of Motic Instruments Microscopes, UNICO Microscopes, VWR Microscopes and other Microscopes currently available at our store.

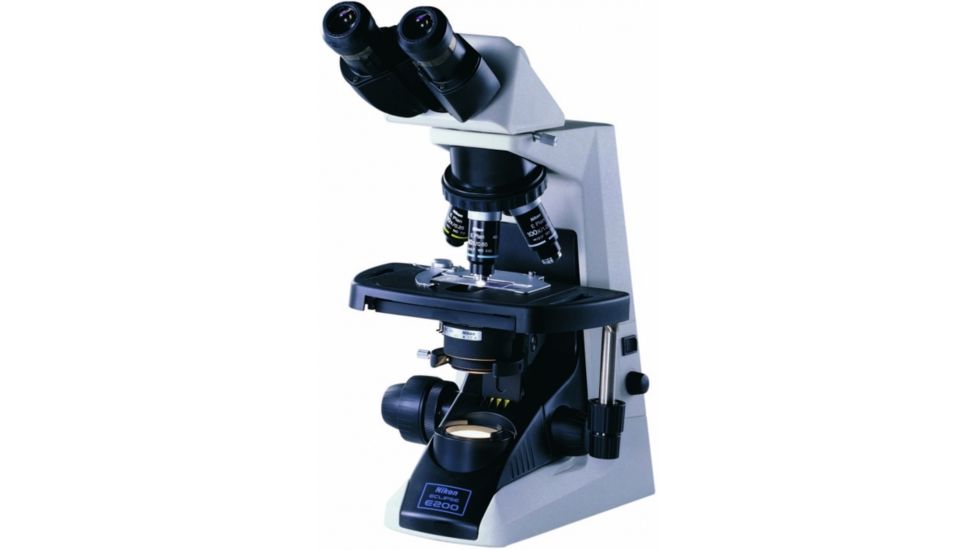

Nikon Instruments E200 Compound Microscope Set with 4X 10X 40X 120V MCA74101 Product Info

The Nikon E200 MCA74101 Compound Microscope Set with 4X 10X 40X - Left Hand is a built-to-last, top-quality biological microscope ideal for basic laboratory use or educational purposes. Powered by Nikon 's CFI60 optics, the E200 Educational Microscope produces stunningly imagesharp and clear images at any magnification. Best of all, the Nikon Eclipse E 200 maintains the same operational ease and rigidity common to all Nikon microscopes and is compatible with many accessories for higher-grade Eclipse series microscopes. For the first time, the CF I60 optical system optics of the world's highest level has been incorporated into a microscope of this class. The result is stunningly sharp and clear images at any magnification. Of course, Nikon maintains the same operational ease and rigidity common to all microscopes from Nikon and is compatible with many accessories. Is mold a problem? Not any more. By using anti-mold paint and sealing anti-mold agent inside the compound microscope at critical places, the Nikon Binocular Eclipse E200 Microscope is designed for use even in hot and humid environments. Moreover, this instrument packs all of these features into a contemporary design that blends in with the clean interiors of your hospital and examination rooms. Best of all, the Eclipse E200 is affordable. Once you use it, you'll realize what an outstanding performer it is, despite its modest price.

Owning a Left handed Nikon MCA74101 Microscope is not just about making a purchase it is about joining a growing family and becoming part of the future. Nikon provides you with the opportunity to enter a new world that you can help shape and define. Their corporate goal is to instill trustworthiness and future creativity truly depends on your input. With microscope optics at the heart of every imaging system, it's essential to choose the leading brand. With over 90 years expertise in the field, Nikon has achieved a level of optical excellence unrivalled by any other. Combined with innovative technology and intuitive software you can be reassured that Nikon microscopes are second to none.

Specifications for Nikon E 200 Upright Microscope System:

Optical system: CFI60 (infinity optical system) Parfocal distance: 60mm
Magnification: 40-1500X for observation / 8-500X for 35mm photomicrography
Eyepiece tube: E2-TB Binocular tube, E2-TF Trinocular tube Siedentopf type (Inclination: 30°, Interpupillary distance: 47-75 mm, 360° rotatable) C-TE Ergonomic Binocular Tube (inclination: 10- 30°, extension: 40mm)
Eyepiece: CFI E 10X (F.O.V.: 20mm), CFI E 15X (F.O.V.: 12mm)
Photo lens: PLI projection lens: 2X, 2.5X, 4X, 5X
Nosepiece: Quadruple nosepiece, reversed type
Coarse/fine Focusing: Fine: 0.2mm per rotation, Coarse: 37.7mm per rotation, Minimum reading: 2 microns on left-side fine control knob, Coarse motion torque adjustable, Refocusing system incorporated in stage, Stage handle and focusing knob are at equal distance from the operator
Stage: Rectangular 216 x 150 mm surface stage mounted on the main body. Cross travel 78 x 54 mm using low-positioned X/Y coaxial control knob
Objectives: CFI E Plan Achromat 4X N.A. 0.10 (W.D. 30mm) CFI E Plan Achromat 10X N.A. 0.25 (W.D. 7.0mm), CFI E Plan Achromat 40X N.A. 0.65 (W.D. 0.65mm) CFI E Plan Achromat 100X Oil N.A. 1.25 (W.D. 0.23mm) As an option, CFI Achromat DL and other higher-grade CFI60 objectives can be used
Condenser: E2 Abbe condenser N.A. 1.25; leaf-type aperture diaphragm with position guide markings for respective CFI E Plan objectives Optional condensers: E2 Phase condenser N.A. 1.25; leaf-type aperture diaphragm with position guide markings for respective CFI Achromat DL objectives For microscope without field diaphragm: C-C Achromat Condenser Achromat Swing-out Condenser Darkfield Condenser, dry type C-C Phase Contrast Condenser
Illumination system: 6V-20W halogen bulb, 6V-30W halogen bulb (Optional)
Intermediate attachment : E200 epi-fluorescence attachment, Teaching head (face-to-face and side-by-side types), Drawing tube, Eye level riser *Maximum intermediate space 50mm

Features of Nikon E - 200 Upright Binocular Microscopes:

  • Ergonomic design equals comfortable operation
  • Ergonomic binocular tube
  • Anti-mold design
  • Eye-level riser
  • Robust, vibration resistant construction
  • Unique Refocusing Stage
  • Upper limit stopper
  • Revolving nosepiece

Package Contents:

  • Nikon Left Handed MCA74101 Compound Microscope System E 200
