Product Discontinued by Manufacturer

Nikon Instruments SMZ-445 10X Microscope 83600 Set with Objectives and Plain Focusing Stand has been discontinued by Nikon Instruments and is no longer available. Our product experts have helped us select these available replacements below.

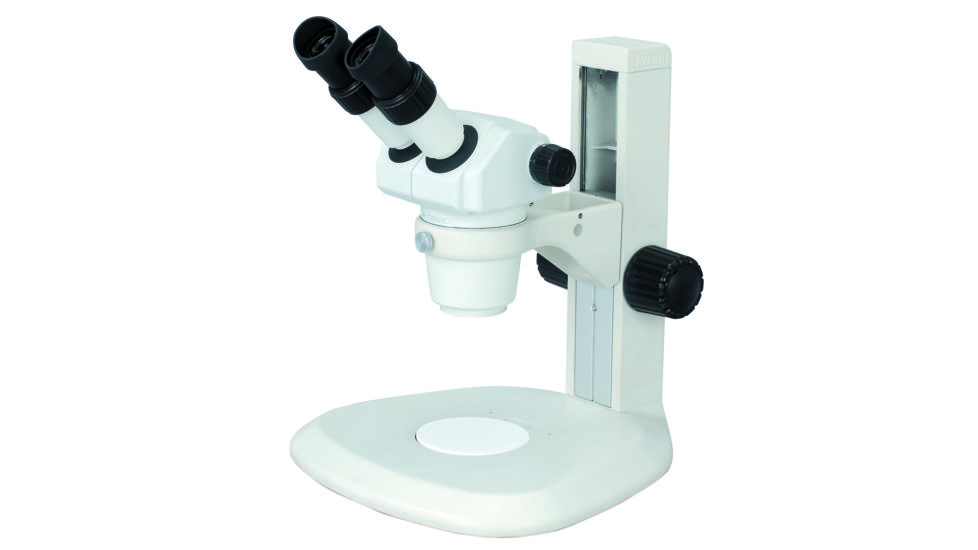

Nikon Instruments SMZ-445 10X Microscope 83600 Set with Objectives and Plain Focusing Stand Product Info

Nikon SMZ-445 StereoZoom Microscope 83600 Set with 10X Eyepieces and Plain Focusing Stand, includes the Nikon SMZ-445 (MMA23008) Stereo Microscope that delivers the outstanding optical performance you expectimage from Nikon 's cutting-edge stereoscopic zoom microscopes. Porro prisms enable a lightweight, compact zoom microscope like the included Nikon Stereo SMZ-445 with 0.8x - 3.5x zoom magnification (Zoom Ratio 4.4:1). High quality images with superior flatness are achieved by following the optical design and quality criteria of all Nikon 's high performance stereoscopic microscopes . The multicoated lenses provide clear, bright and high contrast images. The long working distance of 100mm allows safe focusing even with specimens having markedly uneven surfaces. This is useful when using tweezers, dissection tools or a pipette during specimen manipulation. The inside of the zooming body is treated with a mold-resistant finish. This maintains the quality of the microscope optics even in hot, humid environments. The ergonomic base is compact and thin, designed to be robust for all uses. The set includes dedicated 10x eyepieces with diopter adjustments for parfocality. Combining the Nikon SMZ-445 (MMA23008) with 10x eyepieces with rubber eyecups makes for a perfect stereoscopic biological microscope. We are an Authorized US Distributor for Nikon Microscopes. All Microscopes by Nikon from our online store come with a Full Manufacturer Warranty.

Specifications for Nikon SMZ-445 StereoZoom Microscope (MMA23008) Part of 83600 Set:

Type:

Twin zooming objective optical system

Total magnification:

8x ~ 35x (4x ~ 70x by replacing eyepieces and/or auxiliary objective lens)

Eyepiece:

E10xB eyepieces (F.N. 21), E20xB eyepieces  (F.N. 12)

Zoom range:

0.8x ~ 3.5x (Zoom ratio 4.4:1)

Auxiliary objective lens :

AL0.5x

Working distance:

100mm (standard configuration), 181mm (AL0.5x):

Eyepiece inclination:

45º

Optical system:

True erect image, 12º inner bevel, independent adjustment of right and left eyepieces,and 54 to 75mm interpupillary adjustment

Weight:

(Zooming body) Approx. 1.0kg

Features of Nikon SMZ-445 Microscope 83600 Set:

  • The multicoatings on lens surfaces provide clear, bright and high contrast images.
  • Microscope has Mold-resistant finish
  • Dedicated 10x eyepieces with diopter adjustments for parfocality
  • C-PS Plain Stand with focus mount

Package Contents:

  • Nikon SMZ-445 StereoZoom Microscope 83600 Set with 10X Eyepieces and Plain Focusing Stand
    • MMA23008- SMZ-445 Zoom Stereo Microscope-NC
    • MMK20106- E10XB-SMZ 445/460 Eyepiece-NC
    • MMD31000- C-PS Plain Stand with Focus Mount
