Product Discontinued by Manufacturer

Nikon Instruments SMZ-745 10X Microscope 83602 Set with Wide Field Eyepieces and Plain Focusing Stand has been discontinued by Nikon Instruments and is no longer available. Our product experts have helped us select these available replacements below.

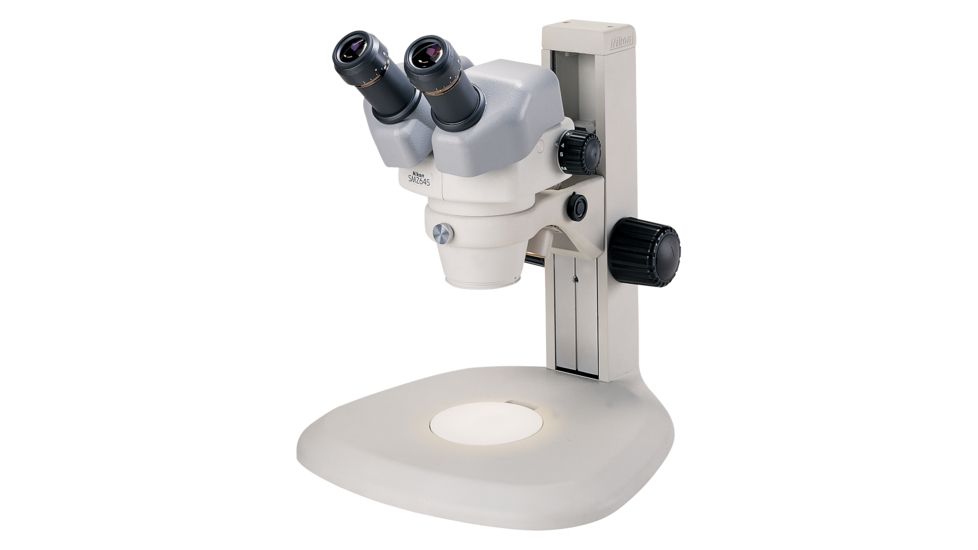

Nikon Instruments SMZ-745 10X Microscope 83602 Set with Wide Field Eyepieces and Plain Focusing Stand Product Info

Nikon SMZ-745 StereoZoom Microscope 83602 Set with 10X Wide Field Eyepieces and Plain Stand was developed especially to meet the needs of customers who demandimage more advanced features and higher performance from a stereo microscope. For these reasons, Nikon believes the SMZ-745 microscope will become the new standard for stereoscopic zoom microscopes in the 21st century. The MMK30102 10x widefield eyepiece was designed especially for the SMZ-745 (MMA36400) stereozoom biological microscope and comes equipped with built-in diopter correction. This brings the image and the reticle into focus at the same time, making it easier to view images, while reducing eye strain. The plain microscope stand features a trim design that makes handling samples much easier. Moreover, the Nikon base has a wide front and smooth curves, allowing operators to work while resting their arms in a natural position. The focus knob is located within easy reach of the operator, eliminating the need to twist your shoulders to use it. The diameter of the stage glass in the diascopic stand has been widened to make it possible to view samples even in large Petri dishes. By using twin zooming objective optics developed exclusively by Nikon, the SMZ-745 (MMA36400) research microscope incorporates a convenient 6.3:1 zoom ratio, enabling observations at just the right magnification to match the sample. The zooming knob also features click stops which allow changes in magnification in 1X intervals from 1X to 4X without removing your eyes from the eyepieces. And since it is easy to maintain the same magnification, efficiency is ensured, whether you are using the microscope by yourself or sharing it in a laboratory situation. Even though the Nikon SMZ-745 (MMA36400) offers extremely high magnifications, it still provides the longest working distances of any microscopes in its class. This allows you to process and manipulate samples with ease, even while performing delicate or complex tasks. We are an Authorized US Distributor for Nikon Microscopes. All Microscopes by Nikon from our online store come with a Full Manufacturer Warranty.

Specifications for Nikon SMZ-745 Zoom Stereo MMA36400 Microscope:

Optical System:

Twin zooming objective

Zoom Range:

.67x to 5x

Zoom Ratio:

7.5

Working Distance:

115mm (4.2 inches)

Total Magnification:

4x to 200x depending on eyepiece and auxiliary objective used

Interpupilary Distance Adjustment:

52 to 75mm (2.0 to 3.0 inches)

Eyepiece (with diopter adjustment):

C-W10x (F.N. 22)

Plain Focusing Stand:

292mm (w) (front) x 305mm (d) x 325mm (h); 100mm Focusing Stroke; 90mm black/white acrylic stage plate

Features of Nikon SMZ-745 Microscope 83602 Set with 10X Wide Field Eyepieces:

  • The multicoatings on lens surfaces provide clear, bright and high contrast images.
  • Microscope has Mold-resistant finish
  • Dedicated 10x eyepieces with diopter adjustments for parfocality
  • C-PS Stand Plain Stand with Focus Mount

Package Contents:

  • Nikon SMZ-745 Stereozoom Microscope 83602 Set with 10X Wide Field Eyepieces and Plain Stand
    • SMZ-745 Zoom Stereo Microscope -MMA36400
    • C10X Widefield Eyepiece - NC MMK30102
    • C-PS Plain Focusing Stand MMD31000
