Nivisys MUM-14A Multi-Use Mini Night Vision Monocular, Black NVMA-31602
$1,869.00 $1,999.00 Save $130.00
Code: NYS-NVM-NVMA-31602
MPN: NVMA-31602

Nivisys MUM-14A Multi-Use Mini Night Vision Monocular Product Info

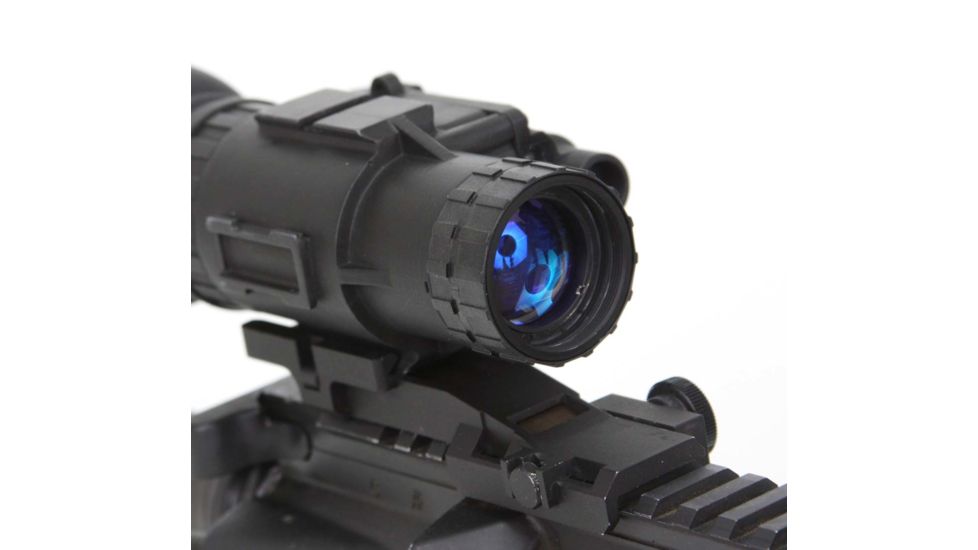

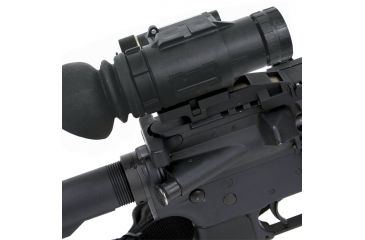

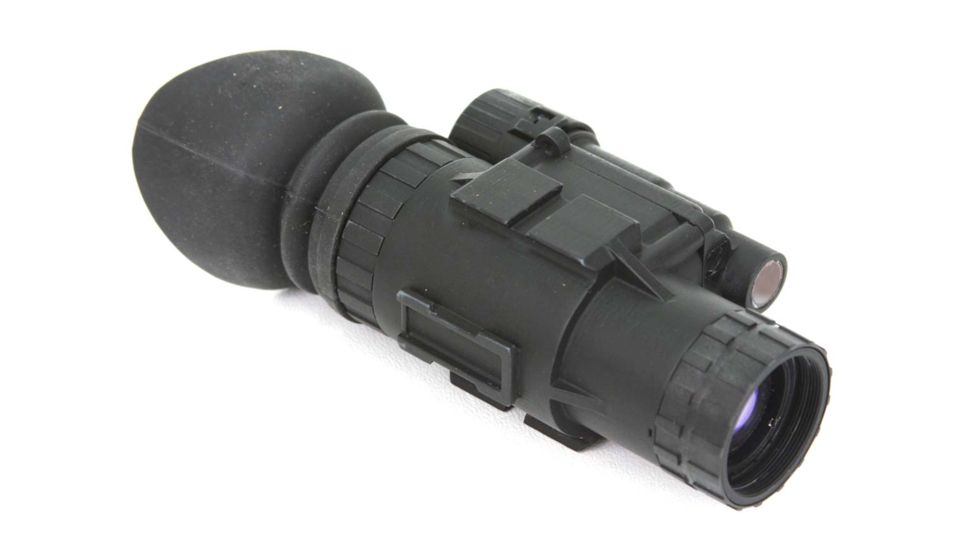

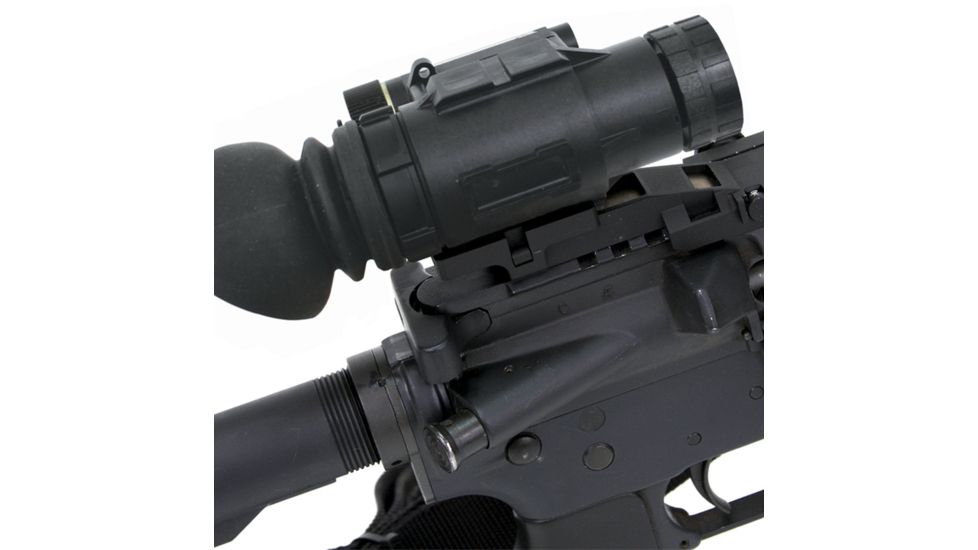

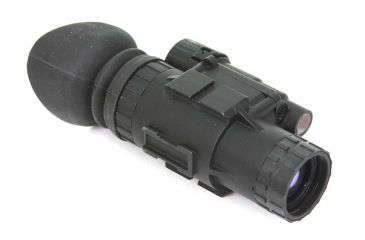

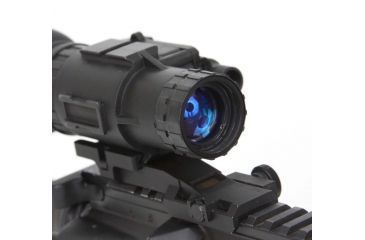

The Nivisys MUM-14A Multi-Use Mini Night Vision Monocular is small and versatile that gives you high performance and utilizes a single Generation III intensifier tube to provide crisp, clear images. This night visionimage monocular engineered by the experts at Nivisys has the ability to be weapon mounted, head/helmet mounted, hand-held, optionally attached to C-Mount lenses, cameras and extender 3x/5x Afocal objective lenses. Also available is the dual-system head/helmet mount that would allow two Mini Monoculars to become one binocular system. The Nivisys MUM-14A Multi-Use Mini NV Monocular w/ IR Illuminator is based upon the proven concept that independent use of each eye maximizes the ability of the user to operate under a wide range of low light conditions and maintain maximum situational awareness. You'll get crisp, clear images with the Nivisys MUM-14A Multi-Use Gen 3 Mini NV Monocular even under the darkest conditions.

Nivisys NVMA-31602: MUM-14A Multi-Use Mini Night Vision Monocular, Black

Specifications for Nivisys MUM-14A Multi-Use Mini NV Monocular w/ IR Illuminator:

Image Intensifier Tube: 18mm 2nd/3rd Gen
Resolution: 1.3 cm/mR (typical Gen III)
Spectral Response: 600-900nm
Objective Lens: 27mm, f/l 1.2
Magnification: 1x (unity)
Field of View: 40° standard, 13.3° with 3x Afocal, 10.0° with 4x Afocal, 8.0° with 5x Afocal
Focus Range: 15cm - ∞
Battery Type: CR123 lithium or AA
Battery Life: >40 hours operation (CR123), >20 hours operation (AA)
Dimensions (L x W x H): 10.75 x 6.85 x 4.95 cm
Diopter Range: +4 to -6
Weight: 260 grams
Eye Relief: 27mm
Indicators: Low Battery (yellow)
IR Illuminator (red):
Environmental: -51C to +45C (operating); -51C to +85C (storage); 20m (submersible)

Features of Nivisys MUM-14A Multi-Use Gen 3 Mini NV Monocular:

  • 3rd Generation
  • High Res - 64 lp/mm
  • Lightweight
  • Compact
  • Rugged Design
  • Hands-free Operation
  • Integrated IR Illuminator
  • Submersible to 20m
  • Single Battery Use (AA or CR123)
  • MIL-SPEC
  • Head, Helmet or Weapon Mountable
  • Intuitive Modular Design
  • Dual Mini Rails for Fast Head and Weapon Mounting Transition

Package Contents:

  • Nivisys MUM-14A Multi-Use Gen 3 Mini Night Vision Monocular
