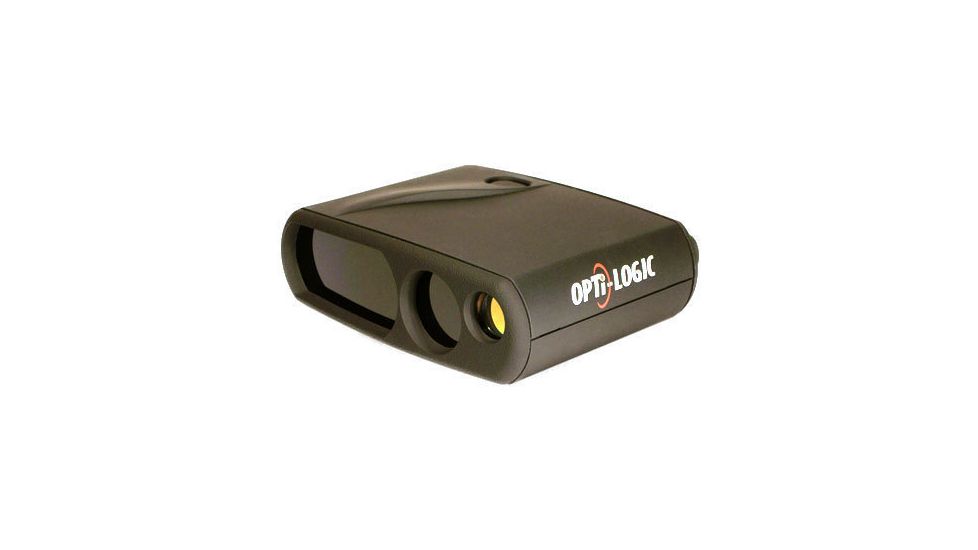

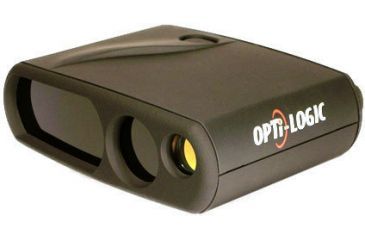

Opti-Logic Insight 1000XT LED Vertical Compensation Laser Range Finder Black
$332.96 $369.95 Save $36.99
Code: OL-RF-Insight1000XT-Black
MPN: Insight1000XT-Black
UPC: 738490112377

Buy now, pay later! Now when you check out at OpticsPlanet with PayPal, you can apply for PayPal's 6 month no payments, no interest option through PayPal Credit. PayPal Credit available in USA only and orders must be over $99 to qualify. Click here to learn more.

Opti-Logic Insight LED Laser Range Finder 1000XT Product Info

The Opti-Logic Insight 1000XT LED Laser Range Finder combines a pulsed laser-rangefinder and a vertical angle sensor in a lightweight, easy-to-use package that is ideal for shooting applications that require precision distance measurements uphill or downhill with this Opti-Logic Range Finder. The hand-held Range Finder is capable of measuring distances to non-cooperative targets, depending on target size and reflectivity. Incorporating an internal electronic tilt sensor, the Opti-Logic Insight Laser RangeFinder is also capable of automatically correcting for vertical angle with 0.1 degree resolution to provide the true horizontal distance to an uphill or downhill target. True horizontal distance is especially important for any applications that require a projectile to be launched at an angle: for example bow hunting and 3-D Archery, rifle hunting and SWAT team applications, golfing and much more. With the Insight LED Display, you can now range in extremely low light levels of the morning or evening. With this rangefinder there is no need to take your eye off the target. Simply press the power button, put the Red Dot on the target and release the button.

We also carry the Opti-Logic 1000XT Laser Range Finder without InSight LED Technology

Colors for Opti-Logic In sight 1000 XT LED Laser RangeFinders

  • Opti-Logic Insight 1000XT LED Laser Range Finder Yellow
  • Opti-Logic Insight 1000XT LED Laser Range Finder Black
  • Opti-Logic Insight 1000XT LED Laser Range Finder Camo

Specifications for OptiLogic Tilt Compensated Laser Range Finder 1000 XT:

Operational Rangem of 1000XT: 4-1000 yd(Passive) Up to 1500 yd(Reflective)
Approx. Size: 1.7" x 4" x 5.1"
Weight: 11 oz
Range Accuracy: +/- 1 yard (+/- 2 yards for very dark or very bright targets).
Range Resolution: 1 foot / 0.5 yard / 0.1 meter
Readout: Easy to read external LCD display.
Units of Measure: User Selectable in either feet, meters, or yards.
Viewfinder: Monocular viewing port. Red LED aiming sight, +/- 0.1 degrees
Battery: Single 9 volt battery. Operates for approximately 1000 readings.
Operational Temp: 0° - 40°C, 32°-104°F.
Laser Type: Infrared Class 1, eye safe 905nm Laser.

Features of Opti-Logic Tilt-Compensated Laser Rangefinder 1000XT LED:

  • Range Button: Press the "Range" button to take distance or height measurements, or to select modes.
  • Display: The Opti-Logic Laser Rangefinder is user
  • programmable to read in either Feet, Meters, or Yards.
  • Low Battery: Replace the battery when the Low Battery symbol is displayed constantly.
  • Automatic Rain Mode: For range accuracy in light rain conditions.
  • Automatic Timeout: To save batteries, the instrument will automatically "time out" after about 7 seconds.
  • Proudly Made in the USA!

Package Contents:

  • Opti-Logic 1000XT Laser Range Finder with LED InSight

Opti-Logic Insight LED Laser Range Finder 1000XT Related Products

Opti-Logic Insight LED Laser Range Finder 1000XT Unorderable Models

Opti-Logic Insight 1000XT LED Vertical Compensation Laser Range Finder, Camo, MPN: Insight1000XT-Camo, Code: OL-RF-Insight1000XT-Camo

Opti-Logic Insight LED Laser Range Finder 1000XT Comments

Customer Reviews
Helpful Positive Review Insight1000XT by Legacy Reviewer, November 29, 2010
This range finder helped me take a deer at 425 yards with one shot. Pros: made in USA, good price Cons: none
1/1 found this helpful
Helpful Negative Review Laser diode by Legacy Reviewer, June 1, 2011
Used in Afghanistan and can't get readings over 400mt in various weather conditions and time of the day. Can laser diode be replaced or increase the power output? adjust the collimating lens? Pros: LED Display Cons: NO readins past 400mt
2/2 found this helpful
Most Recent Review great rangefinder by Legacy Reviewer, October 29, 2011
Good rangefinder for the money. Love the fact that it is made in USA. Wish it had magnification. Pros: ranges at least 1000 yds. Cons: noisy to use, no magnification, bulky
2/3 found this helpful
Read All 3 Reviews
