Unfortunately Opti-Logic 800XL Insight LED Laser Range Finder is no longer carried by OpticsPlanet. You can also explore other items in the Range Finders category yourself to try and find the perfect replacement for you!

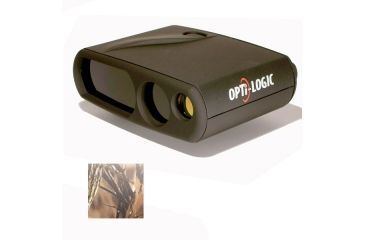

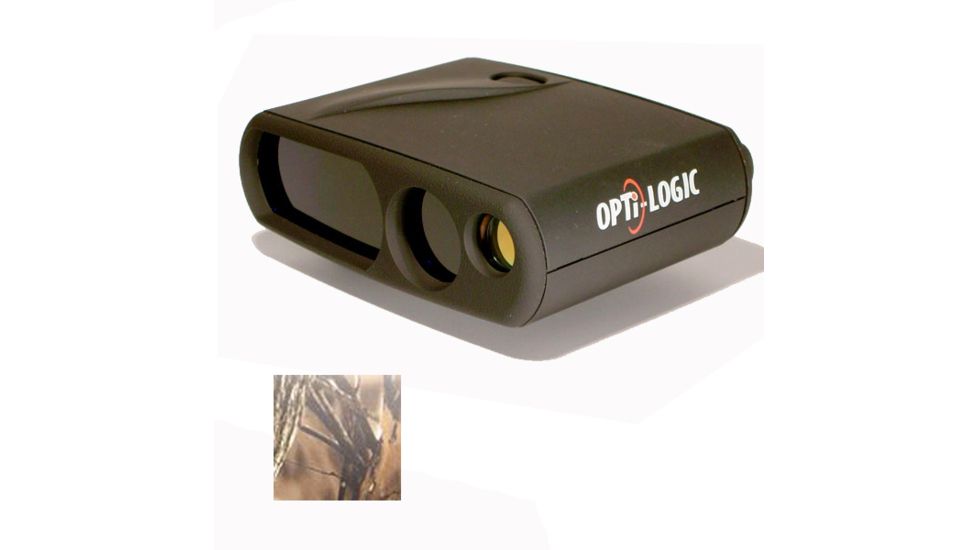

Opti-Logic 800XL Insight LED Laser Range Finder Product Info

The Opti-Logic Insight 800XL LED Laser Range Finder is an easy-to-use, electronic instrument designed for hunting, utilities, construction, and many other distance measurement applications with this Opti-Logic Range Finder. The 800XL Laser Rangefinder by Opti-Logic allows rapid, accurate determination of distance to an object in a matter of seconds using one button operation. With the Insight LED Display, you can now range in extremely low light levels of the morning or evening. With this Range Finder there is no need to take your eye off the target. Simply press the power button, put the Red Dot on the target and release the button. We also carry the Opti-Logic 800XL Laser Range Finder without InSight LED Technology. Opti-Logic Laser Range-Finder 800-XL is designed for years of trouble-free operation and is proudly Made in the USA.

Specifications for Opti-Logic Range-Finder 800XL:

Operational Range of 800XL: 4-800 yd(Passive) Up to 999 yd(Reflective)
Approx. Size: 1.7" x 4" x 5.1"
Weight: 11 oz
Range Accuracy: +/- 1 yard (+/- 2 yards for very dark or very bright targets).
Range Resolution: 1 foot / 0.5 yard / 0.1 meter
Readout: Easy to read external LCD display.
Units of Measure: User Selectable in either feet, meters, or yards.
Viewfinder: Monocular viewing port. Red LED aiming sight, +/- 0.1 degrees
Battery: Single 9 volt battery. Operates for approximately 1000 readings.
Operational Temp: 0° - 40°C, 32°-104°F. Relative Humidity 5-95% non-condensing.
Laser Type: Infrared Class 1, eye safe 905nm Laser.

Features of Opti-Logic 800XL Laser Rangefinder:

  • Range Button: Press the "Range" button to take distance or height measurements, or to select modes.
  • Display: The Opti-Logic Laser Rangefinder is user
  • programmable to read in either Feet, Meters, or Yards.
  • Low Battery: Replace the battery when the Low Battery symbol is displayed constantly.
  • Automatic Rain Mode: For range accuracy in light rain conditions.
  • Automatic Timeout: To save batteries, the instrument will automatically "time out" after about 7 seconds.
  • Made in the USA!

Package Contents:

  • Opti-Logic InSight 800XL Laser Range Finder

Opti-Logic 800XL Insight LED Laser Range Finder Related Products

Opti-Logic 800XL Insight LED Laser Range Finder Unorderable Models

Opti-Logic Insight 800XL LED Programmable Laser Range Finder - Camo, MPN: INSIGHT 800XLC, UPC: 738490112261, Code: OL-RF-Insight800XL-Camo
Opti-Logic Insight 800XL LED Programmable Laser Range Finder - Black, MPN: Insight 800XL, UPC: 738490112254, Code: OL-RF-Insight800XL-Black
