$239.99
Code: PI-FI-12686
MPN: 12686

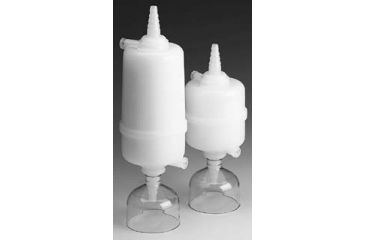

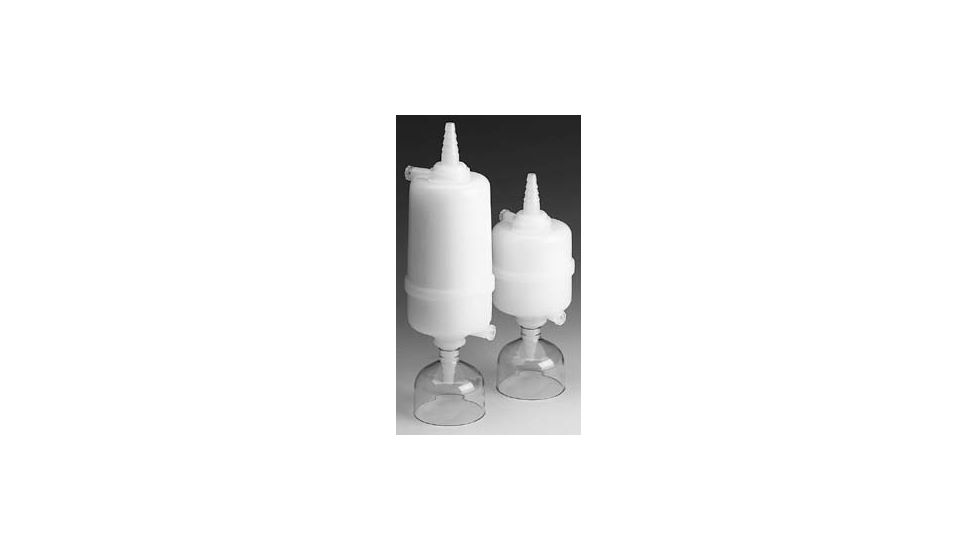

Pall AcroPak 500, 1000, and 1500 Filter Capsules, Sterile, Pall Life Sciences 12686 Acropak 1500 Filter Capsules Product Info

Pall AcroPak 500, 1000, and 1500 Filter Capsules, Sterile, Pall Life Sciences Acropak 1500 Filter Capsules is a reliable and dependable imageaddition to the Pall Filters family of products. Combining top-notch and uncompromising quality with an affordable price, the Pall AcroPak 500, 1000, and 1500 Filter Capsules, Sterile, Pall Life Sciences Acropak 1500 Filter Capsules 12686/ 28146-198 can fulfill your laboratory needs while still offering a great value for the money.

Product Category Description:

These 100% integrity-tested filter capsules feature Supor* (hydrophilic polyethersulfone) membranes that increase solution throughput. Housing, vent plug, and filter support are composed of polypropylene and are fusion-welded to eliminate the potential for release of extractables from sealing adhesives. Applications include large volume media preparation and pilot scale manufacturing. May also be used for liquids requiring prefiltration.

Use the 500 series capsules for filtration of up to 50L. Use the 1000 series capsules for filtration of up to 100L. Use the 1500 series capsules for filtration of up to 150L.

AcroPak 500, 1000, or 1500 capsules with Supor 0.8/0.2 or 0.8/0.45 membranes are ideal for larger volume filtration uses. They have a built-in prefilter that provides high throughputs and fast flow rates with serum or biological solutions.

AcroPak 500 and 1000 capsule styles have a polycarbonate filling bell. All AcroPak capsules are sterilized by gamma irradiation. Filters can be autoclaved once prior to use at 121 to 123°C (250 to 253°F).

Specifications for Pall AcroPak 500, 1000, and 1500 Filter Capsules, Sterile, Pall Life Sciences 12686 Acropak 1500 Filter Capsules :

Pore Size, µm:  0.2/0.2
Pall No.:  12686
Unit:  Each
Effective Filtration Area, 500 Series:  500 cm2
Effective Filtration Area, 1000 Series:  1000 cm2
Effective Filtration Area, 1500 Series:  1500 cm2
Inlet/Outlet Connections, 500, 1000 Series:  6.4 to 12.7 mm (1/4 to 1/2") Tapered Hose Barb (Filling Bell on Outlet)
Inlet/Outlet Connections, 1500 Series:  12.7 mm (1/2") Straight Hose Barb
Inlet/Outlet Connections, Maximum Operating Temperature:  60°C (140°F)
Inlet/Outlet Connections, Diameter:  6.9 cm (223/32")
Overall Length (without Filling Bell), 500 Series:  14.5 cm (523/32")
Overall Length (without Filling Bell), 1000 Series:  19.3 cm (73/5")
Overall Length (without Filling Bell), 1500 Series:  22.9 cm (9")
