Product No Longer Available

Unfortunately Pentax Digibino DB-100 Digital Camera Binoculars 60011 is no longer carried by OpticsPlanet. You can also explore other items in the Digital Binocular Cameras, Digital Camera Binoculars, Digital Cameras categories yourself to try and find the perfect replacement for you!

Pentax Digibino DB100 Camera Binocualrs are no longer available. Please see our huge selection of Digital Binoculars in our digital binocular cameras section

Pentax Digibino DB-100 Digital Camera Binoculars 60011 Product Info

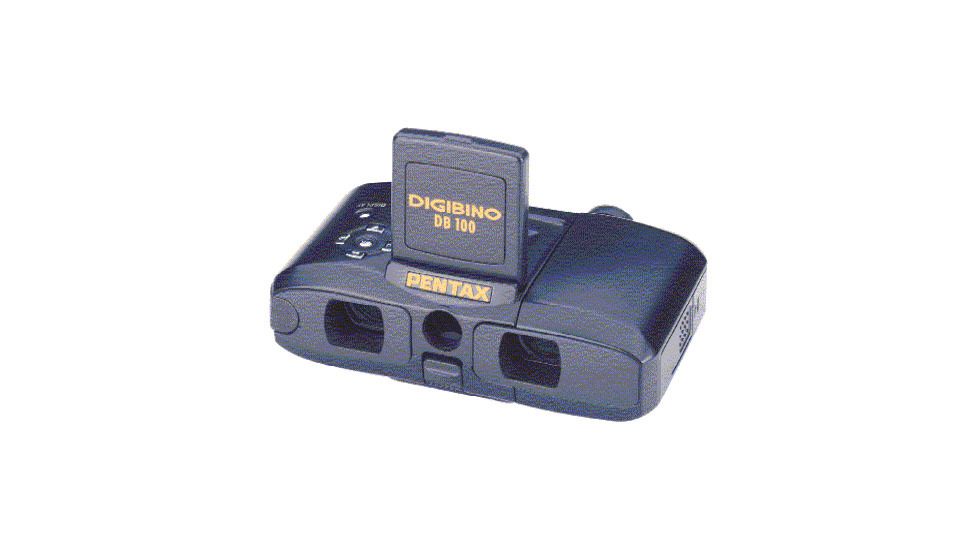

OpticsPlanet.com, an Authorized US Pentax Dealer is exited to introduceimage PX-DB-60011 Pentax Digibino DB100, world's first binocular with a built-in digital camera!

Digibino DB100 60011 is the combination that a lot of birdwatchers and whale watchers have been dreaming for a long time, and Pentax combined its great experience in building world-class binoculars with its tremendous knowledge in camera development. Pentax Digibino DB100 is a 7x Roof-Prism Binoculars with built-in digital camera.  DB100 supports digital image recording with 7x magnification lens.  The camera has 16 megabytes internal memory and the built-in digital camera supports 800,000 pixels (0.8 megapixel).  Digital images are recorded in the industry-standard JPEG format.  The camera support USB connection to PC for easy and fast image download. DB100 has binocular-linked focusing system. The camera has support for a a video-out terminal for TV viewing, and if you want to take a movie-like series of photo shots via continuous shooting up to 10 frames at five frames per second.

Pentax Digibino DB100 Specifications

Type: Roof prism type binoculars with built-in digital still camera, binocular-linked focusing, auto exposure, center focusing.

Lens: PENTAX 37mm (equivalent to 280mm in 35mm format) f/4.0.

Objective lens: 2 elements in 1 group

Eyepiece lens: 3 elements in 2 groups

Digibino Binocular Spec

Magnification: 7X

Objective Lens Diameter: 17mm x 14mm

Real Field of View: 7.1°

Apparent Field of View: 50°

Field of View at 1000m: 124m

Field of View at 1000 yards: 372 ft.

Exit Pupil: 2.4mm x 2.0mm

Eye Relief: 11mm

Relative Brightness: 5

Diopter Adjustment Range: -5m-1 to +3m-1

Eye Width Adjustment Range: 2.2 in. - 2.8 in. (57mm - 72mm).

Focusing Range: Approx. 6.6 ft. to infinity (Approx. 2m to infinity).

Eyepiece: Rigid type.

DigibinoDigital Camera

Effective Pixels: 0.8 megapixel

Sensor: 0.85 megapixel (total pixels)1/3 inch progressive CCD

Recorded Pixels: Still - 1024 x 768 pixels, 640 x 480 pixels.

Sensitivity: Auto (equivalent to ISO100 - 1600).

File Formats: Still - JPEG (Exif 2.1), DCF.

Quality Levels: "Fine", "Normal", "Basic".

Storage Media: Internal memory 16MB.

Digital Zoom: 1.6X, 3.3X

Focusing System:

Type: Binocular-linked focusing system.

Focusing Range: Binoculars & camera: 6.6 ft. (2m) to infinity.

Focusing Indicator: Cross hair in binocular field of view.

Exposure Control:

Metering System: TTL metering center-weighted metering.

Exposure Modes: Programmed auto exposure.

Shutter: Programmed AE CCD electronic shutter.

Shutter speed: approx. 1/8000 sec. to 1/30 sec.

Drive Modes: One shot, Continuous (max. 10 shots at 5 shots/sec., Fine image).

White Balance: TTL auto.

Optical Viewfinder: Binoculars (diopter adjustment from -5m-1 to +3m-1).

LCD Monitor: 1.6 inch, D-TFT color LCD.

LCD Function: Nine-image and 1X-3.3X (soft zoom) magnification available in playback mode.

Interfaces: Video output terminal, USB terminal.

Video Output: NTSC format model or PAL format model.

Power Sources: Two AA size alkaline batteries, two AA nickel-hydride rechargeable batteries, one lithium battery (CR-V3 type).

Body Color: Black

Dimensions: 5.0 (W) x 2.7 (H) x 1.7 (D) inches

(127mm x 69mm x 44mm)

Thickness: 1.7 in. (44mm).

Accessories: Case, strap.

A short version of Pentax Digibino DB100 binoculars with a built-in digital camera  is available for downloadhere (PDF Format).In Stock! Shipping Next Business Day!
