Product No Longer Available

Unfortunately Pentagonlight MD2 LED LaserLight MD2-LL-SR, MD2-LL-TR is no longer carried by OpticsPlanet. You can also explore other items in the Flashlights category yourself to try and find the perfect replacement for you!

This model of Pentagonlight Flashlights is now discontinued and no longer available. Please check out our other selection of Blackhawk Flashlights, Insight Technology Flashlights, Pelican Flashlights, Streamlight Flashlights, Surefire Flashlights and other Flash Lights currently available at our store.

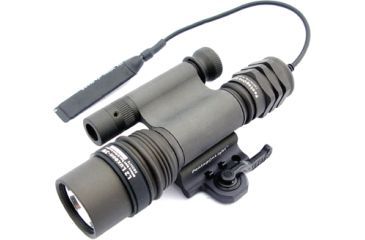

Pentagonlight MD2 LED LaserLight MD2-LL-SR, MD2-LL-TR Product Info

Pentagonlight MD2 LED LaserLight on sale and available from our online store. OpticsPlanet, Inc imageis an Authorized US Distributor for Pentagonlight Flashlights.

MD2 LED LaserLight is a rugged and sophisticated tactical illumination system designed from the ground up for rifle mounting. MD2 integrates two essential elements into one compact system: close quarter tactical illumination and bystander casualty reduction. This integration of the light and visible red laser reduces overall form factor. The mount easily engages and disengages the entire unit from the Picatinny Rail for reducing preparation complexity, and allows quick and easy system maintenance. As a 6-volt tactical light system, MD2 LED LaserLight is pre-configured with a high power LED light that is electronically regulated to sustain maximal brightness at 100 lumens for 90 minutes on the SR model or 120 lumens for 90 minutes on the TR model. There are numerous advantages of LED lights for tactical operation. LED is shockproof against weapon recoil. It has thousands of hours of lifetime which means it will not burned out requiring bulb replacement during the most critical time. The light source is protected by an anti-scratch tempered glass lens and is maximally focused at factory for achieving the greatest distance and center brightness.

MD2 LED LaserLight features an offset visible red laser sight for target assistance and threat deterrence. The laser can be calibrated for wind and elevation with a laser bore sight kit. The laser sight module is interchangeable with optional side pods for providing supplemental IR source, low visibility red light, or reduced signature NVG-compatible light. Manufactured by high precision CNC machine from aerospace grade aluminum with anti-abrasive, anti-corrosive, and anti-reflective military spec Type III hard anodized exterior finish, MD2 LED LaserLight is rugged and durable for illumination in the most critical environments. The anti-reflective finish reduces glare and minimizes signature for ensuring stealth.

The primary light of MD2-LL-SR is preconfigured with TR3 straight-cord tri-mode remote pressure pad switch. Positioned in momentary mode, the light can be activated by pressing the remote pressure pad. Turn tail-cap slightly to position in constant-on mode. Constant-on switches light on continuously without pressing, and is also useful in the event of remote pressure pad or cord failure. The pentagonal shape tail-cap facilitates rotation for operating the switch mechanism, including positioning the switch in lockout mode. This tail-cap is compact and light-weight, allowing the system to have better form factor. Additional tail-caps are available for alternate methods of switching operation. An independent recessed push ON/OFF tail-cap switch easily activates the offset laser and can be placed in safety lockout position.

The primary light of MD2-LL-TR is preconfigured with TR6 brightness controllable remote switch tail-cap. The low setting switch momentarily turns on the light at low light output, just enough for staging and navigation prior to assault. Pressing the pad switches the light on high output. Under duress, pressing both low and high switches turns on the light at high setting. Clicking the constant-on switch turns on the light at high output and stays on.

The MD2 features an independent recessed push ON/OFF tail-cap switch easily activates the offset laser and can be placed in safety lockout position. Since the laser is offset from the rail, its tail switch can be easily activated via thumb action when a vertical handgrip is installed. All connections are sealed with double O-rings for fail-safe protection against water leakage. MD2 system features universal and flexible PentagonLight Interchangeable Light Source (ILS) System, ensuring compatibility for other alternative light sources in meeting your mission specific needs. Each MD2 LaserLight is individually serialized for inventory control. The unit can be easily serviced in the field with an optional Field Service Kit. The front tempered glass lens can be easily replaced if it is damaged during an unexpected frontal impact. MD2 LaserLight is the choice for the military and law enforcement when close quarter tactical illumination and precision are both at the top of consideration.

The following models of Pentagonlight MD2 LED LaserLight are available:

  • Pentagonlight MD2 LED LaserLight MD2-LL-SR
  • Pentagonlight MD2 LED LaserLight MD2-LL-TR

Specifications for Pentagonlight MD2 LED LaserLight MD2-LL-SR:

Brightness:  Max 100 Lumens
Lamp:  High Power White LED
Peak Duration:  90 Minutes
Usable Run-Time:  3 Hours
Batteries:  Two CR-123A Lithium (Primary Light)

One A544 Alkaline (Laser)

Tail-Cap:  TR3 Tri-Mode Tail-Cap
Bezel Size:  1.25"
Length:  5.5" (140 mm)
Weight:  8.0 oz. (231 g)

Specifications for Pentagonlight MD2 LED LaserLight MD2-LL-TR:

Brightness:   Max 120 Lumens
Lamp:   High Power White LED
Peak Duration:   90 Minutes
Usable Run-Time:   3 Hours
Batteries:  Two CR-123A Lithium (Primary Light)

One A544 Alkaline (Laser)

Tail-Cap:   TR6 Controllable Remote Switch w/ Tail-Cap
Bezel Size:   1.25"
Length:   5.5" (140 mm)
Weight:   8.0 oz. (231 g)

Features of Pentagonlight MD2 LED LaserLight:

  • Shockproof High Power White LED
  • Peak Brightness Extender - Current Regulation Circuitry
  • Textured Beam Smoothing Reflector Lens
  • Compact Light and Laser Integration
  • Aerospace Grade Aluminum Body
  • Cross-Bolt Screw Weapon Mount
  • Tempered Glass Lens
  • Offset Visible Red Laser
  • Anti-Reflective Military Spec Type III Hard Anodized Exterior
  • Complete Double O-Ring Sealing
  • Brightness Controllable Remote Switch

Package Content:

  • MD2 LED LaserLight

Pentagonlight MD2 LED LaserLight MD2-LL-SR, MD2-LL-TR Related Products

Pentagonlight MD2 LED LaserLight MD2-LL-SR, MD2-LL-TR Unorderable Models

Pentagonlight MD2 LED LaserLight, 120 Lumens, TR6 Tail Cap MD2-LL-TR, MPN: MD2-LL-TR, Code: PG-FL-MD2Led-MD2-LL-TR
Pentagonlight MD2 LED LaserLight, 100 Lumens, TR3 Tail Cap MD2-LL-SR, MPN: MD2-LL-SR, UPC: 844664000798, Code: PG-FL-MD2Led-MD2-LL-SR
