Unfortunately Pentax ZX-M Manual Focus Camera Body (K1000 replacement) is no longer carried by OpticsPlanet. You can also explore other items in the Film Cameras category yourself to try and find the perfect replacement for you!

This model of Pentax Camera has been discontinued and no longer available. However, we offer other excellent models of CAMERAS on our site at great price.

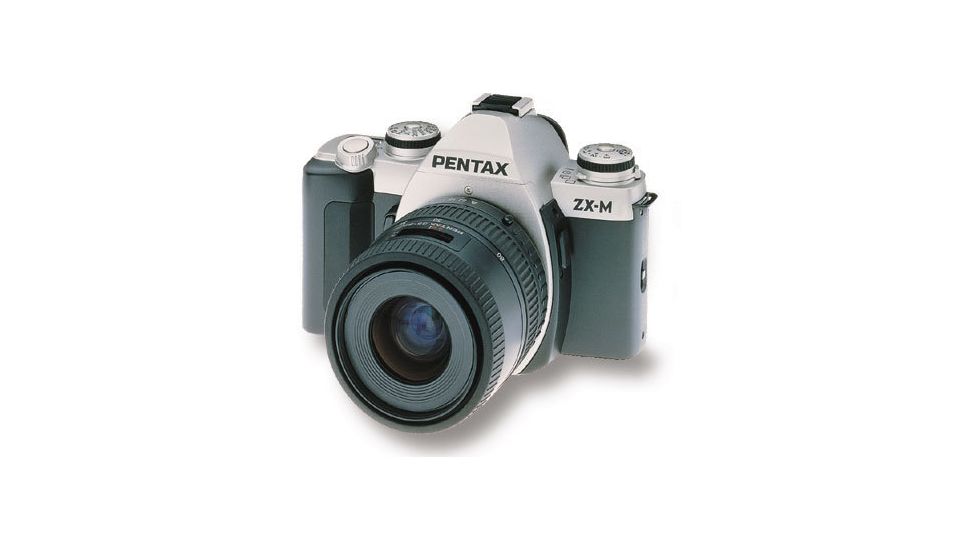

Pentax ZX-M Manual Focus Camera Body (K1000 replacement) Product Info

Like its sister models in the popular ZX-series, the ZX-Mimage offerssuper-compact dimensions and straightforward, easy to read dial controls; but itis totally manual. It incorporates an array of creative and user-friendlyfeatures, including a multi-mode exposure system; an advanced light meteringsystem; and a 1/2000-second high-speed shutter. As a result, this is the modelfor the next generation of photographers as well as those who want to learn thebasic skills through creativity and fun. The ZX-M helps teach photography in asimple and easy way.

For a long time photo instructors in high schools and colleges across the United States have been telling their students that they must own a manually controlled single lens reflex as a prerequisite to taking the class, and they had to have Pentax K1000 camera. Pentax discontinued the K-1000 in 1997, but our Pentax ZX-M Manual Focus 35mm camera replaced K1000, but added such modern features as motorized wind and rewind, self-timer, and electronic release.

The Features

  • The ZX-M offers four different exposure modes: the hands-off Programmed AE, the depth-oriented Aperture-Priority AE, the action-oriented Shutter-Priority AE, and the totally maneuverable Metered Manual.
  • The ZX-M's multi-pattern metering system is designed to get the maximum performance from the camera's auto-exposure modes -- even in difficult backlighting and high-contrast situations.
  • The built-in film winder loads the film, advances it to the first frame, winds it at the speed of two frames per second, and rewinds the film at the end of the roll -- all automatically.
  • With a single push on the preview button, you can check the depth-of-field for a given aperture before shooting to ensure the desired visual effect. This function is usable even when the lens aperture ring is set to the "A" (auto) position.
  • The easy-to-use exposure compensation lets you quickly adjust the exposure level within a +/- 3EV range in 1/2 EV steps for bracketing or for intentional under- or overexposure.
  • The memory lock feature allows the user to ensure correct exposure on a single element in the final image by memorizing the exposure data for 10 seconds with simple push-button operation.
  • With a top shutter speed of 1/2000 second, the ZX-M can freeze a critical moment in the subject's movement. Such high shutter speeds are very useful in sports and action photography.
  • The built-in electronic self-timer delays the shutter release by 12 seconds, allowing the photographer to be part of the picture. This is also useful for avoiding camera shake in slow-shutter and Bulb applications.
  • The external LCD panel and viewfinder display offer a range of useful photographic data to the photographer at a glance. The viewfinder also features a Pentax-original Natural-Bright-Matte focusing screen for a sharp, clear viewfinder image.
  • You can manually select the desired ISO film speed between ISO6 and ISO6400 in 1/3 steps for non-DX-coded film or for an intentional shift of the exposure level on an entire roll of film.
  • The ZX-M measures just 5.3" wide, 3.6" high and 2.2" deep, and weighs only 10.8 oz. making it compact enough for the user to bring along on every occasion.
  • In addition to the SMC Pentax A-series manual-focus lenses, the FA- and F-series autofocus lenses can also be used with the ZX-M, as well as a wide range of optional accessories to satisfy the photographer's every creative need.

Specifications

Type: TTL automatic exposure multi-mode 35mm SLR.
Film: 35mm perforated cartridge film.
Image Size: 24mm x 36mm.
Lens Mount: PENTAX KA2 bayonet mount compatible with KAF2, KAF, KA and K mounts.
Exposure Control:
Metering system: TTL open-aperture 2-segment metering.
Metering mode: (1) 2-segment multi-pattern metering with SMC PENTAX-FA, -F and -A lenses; (2) Center-weighted metering with other lenses. Automatic switching depending on mounted lens.
Metering range: EV1 ~ EV21 (at ISO 100 with f/1.4 lens).
Exposure mode: (1) Programmed AE; (2) Aperture-Priority AE; (3) Shutter-Priority AE; (4) Metered Manual; (5) Bulb. Programmed Auto Flash available. Automatic exposure compensation in auto-exposure mode with multi-pattern metering.
Memory lock: Activated with ML button. Exposure value memorized for approx. 10 sec.
Exposure compensation: °3EV (1/2EV steps).
Shutter:
Type: Electronically controlled vertical-run focal-plane shutter.
Speed: (1) Programmed AE & Aperture-Priority AE modes: 1/2000 ~ 30 sec. (stepless); (2) Shutter-Priority AE & Metered Manual modes: 1/2000 ~ 2 sec., B (bulb) and 1/100X.
Flash sync: 1/100 sec.
Viewfinder:
Type: Fixed molded penta-mirror type.
Focusing screen: Fixed Natural-Bright-Matte split-image/microprism focusing screen.
Field of view: 92% vertically/horizontally.
Magnification: 0.77X (with 50mm f/1.4 lens at infinity).
Diopter: Fixed at -1 diopter.
Preview: Electronic type. Possible in all exposure modes using preview button.Viewfinder LCD Indication (with automatic brightness level adjustment):
1) External flash status;
  2) Shutter speed, aperture, exposure compensation, and out-of-exposure coupling range warning;
  3) Exposure compensation factor;
  4) Bar-graph;
  5) Over- and underexposure indication in Metered Manual;
  6) Memory lock.
Film Handling:
Loading: Quick auto loading (automatic film advance to first frame).
Advance/rewind: Automatic (mid-roll rewind possible).
Advance mode: (1) Single; (2) Consecutive (approx. 2 frames/sec.).
ISO Film Speed Setting: (1) Automatic with DX-coded film (ISO25 ~ 5000). (2) Manual (ISO6 ~ 6400 in 1/3EV steps).
Flash Synchronization: With the optional PENTAX dedicated flash unit via hot shoe.
Self-Timer: Electronically controlled type with 12-second delay.
Data Imprinting: Available using the optional PENTAX Data Back FJ.
Power Source: Two 3V lithium batteries (CR2 type).
Dimensions: 135(W) x 90.5(H) x 55(D)mm (5.3" x 3.6" x 2.2").
Weight: 305g (10.8 oz,.) without batteries.
