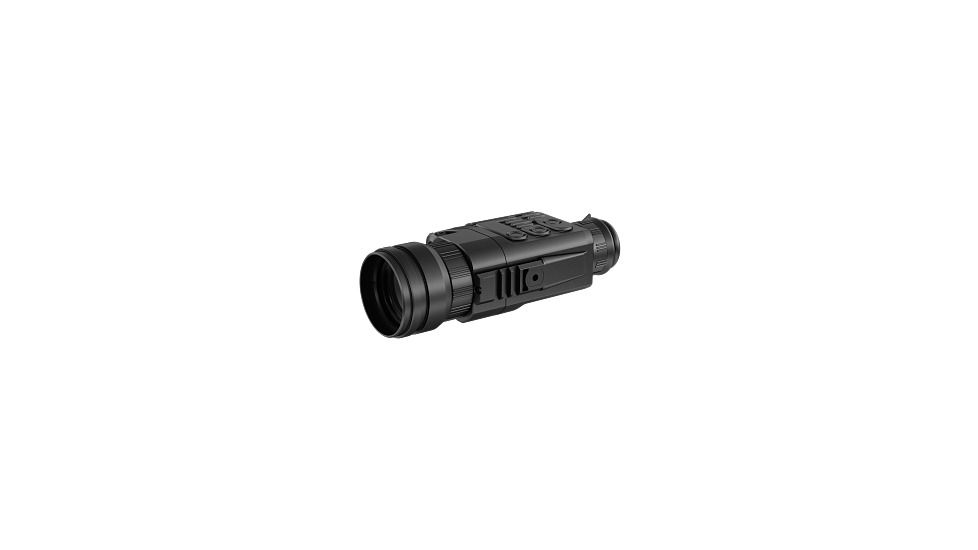

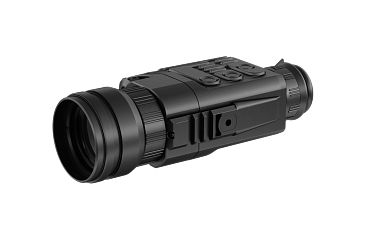

Pulsar Thermal Imaging Scope Quantum LSQ 19 PL77310
$2,499.97 $2,999.99 Save 17%
Code: ZA-HS-SJS84T-PL77310
MPN: PL77310
UPC: 1111447
Click to select this item for your bundle offer!
Buy Together & Save Even More!

A great way to save even more money is to purchase complementary products at the same time that you shop for what you want!

In many cases you'll be offered two additional items that you can add to your order and save, but feel free to only pick one if you want - you'll still save

You Save 15%

Buy now, pay later! Now when you check out at OpticsPlanet with PayPal, you can apply for PayPal's 6 month no payments, no interest option through PayPal Credit. PayPal Credit available in USA only and orders must be over $99 to qualify. Click here to learn more.

Pulsar Quantum 19 Thermal Imaging Scope Product Info

Acquire the best possible images in specific viewing conditions with the Pulsar Quantum 19 Thermal Imaging Scope for a successful hunt. This thermal imager by the experts at Pulsar features a body of fiberglass and reinforced plastic that is able to effectively withstand impact, moisture and dust which allows the units to be used in extreme conditions. The Pulsar Quantum 19S Thermal Imager has a wide range of operating temperatures with brightness and contrast control. With the Pulsar Quantum 19S Thermal Imager w/ Frost-resistant OLED Display you'll be able to see beyond what even night vision can offer.

Pulsar PL77310: Thermal Imaging Scope Quantum LSQ 19

Specifications for Pulsar Quantum 19 Thermal Imaging Monocular:

Detector type: UL 03 16 2 (a-Si)
Refresh rate, Hz: 9
Magnification, x: 2.1
Digital zoom, x: 2
Resolution, pixels: 384x288
OLED Display size, in: 0.31
Close-up range, m: 2
Exit pupil, mm: 8
Spectral range, μm: 7.7-13.2
Field of view, HxV, degree: 14.4x10.8
Diopter adjustment, D: ±5
Max. detection range, m/yd: 900/985
Start-up time, sec: 10
Power supply: 4÷6V
Battery type: 4xAA
External power supply: 8.4-15V
Operating time on battery EPS3/EPS5: 9/20
IP code: IPX4
Video output: PAL/NTSC
Operating temp., °C: -20 to +50
Dimensions, mm: 200 x 86 x 59
Weight, oz: 19.7

Features of Pulsar Quantum 19 Thermal Imager w/ Frost-resistant OLED Display:

  • Quick start-up time (5 - 7 seconds)
  • High resolution (384x288) microbolometer
  • Fiberglass reinforced plastic is able to effectively withstand impact, moisture and dust which allows the units to be used in extreme conditions
  • Three calibration modes - silent manual mode ("M"), automatic ("A") and semiautomatic ("H")
  • Three operating modes - "City" (enhanced contrast), "Forest" (low contrast) and "Identification" (improved rendering of hot objects' details)
  • Quantum imaging scopes are effective for the use in low temperatures (-25°C) thanks to the frost-resistant OLED display
  • Control wheel located next to the lens allows the user to setup brightness and contrast
  • Powered with four AA size (rechargeable) batteries
  • Analog video output to enable connection of external recording equipment or transmitting image to the display
  • Operation time of the unit can be significantly increased thanks to the use of external power supplies

Package Contents:

  • Pulsar Quantum 19 Thermal Imager
